Alienware Area-51 R6

To Next Page

To Previous Page

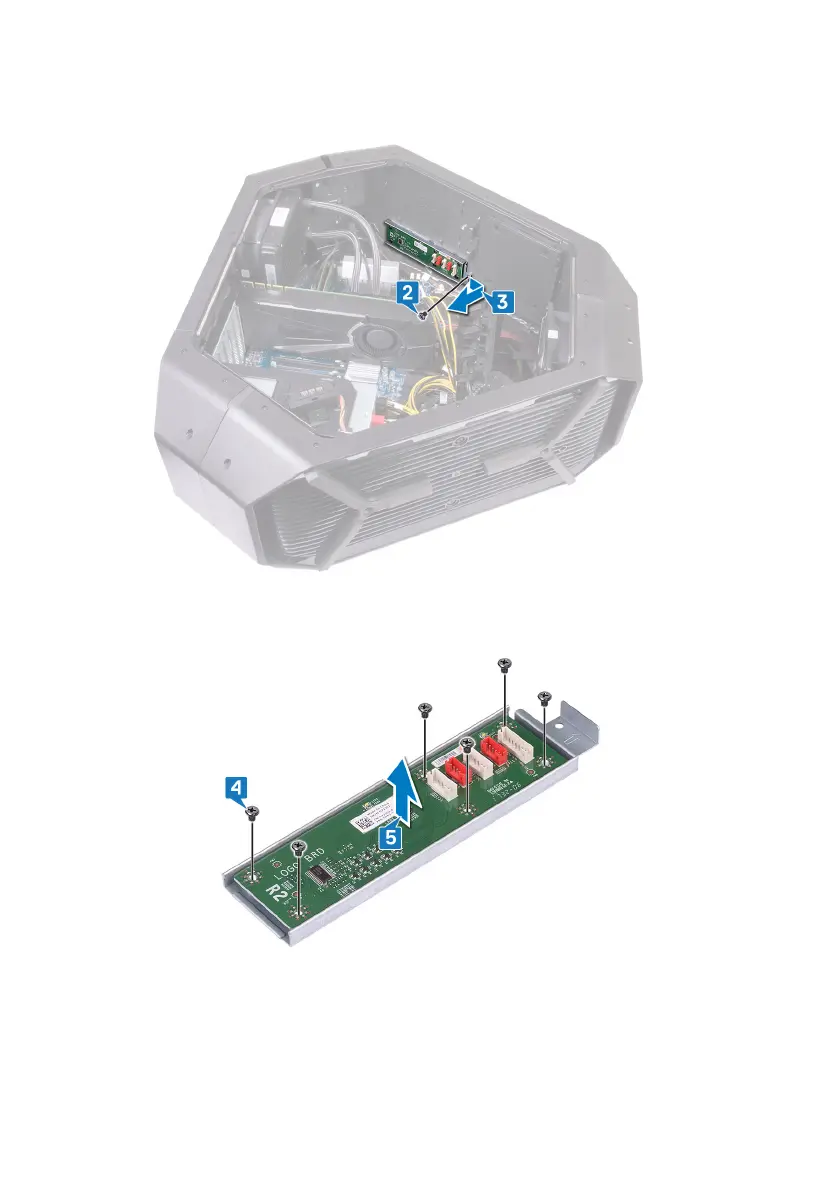

3 Slide the logo board out of the chassis.

4 Remove the six screws (#6-32x6) that secure the logo board to the bracket.

5 Remove the logo board from the bracket.
