ā Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then
place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when
the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a
component.
NOTE: Screw color may vary with the configuration ordered.

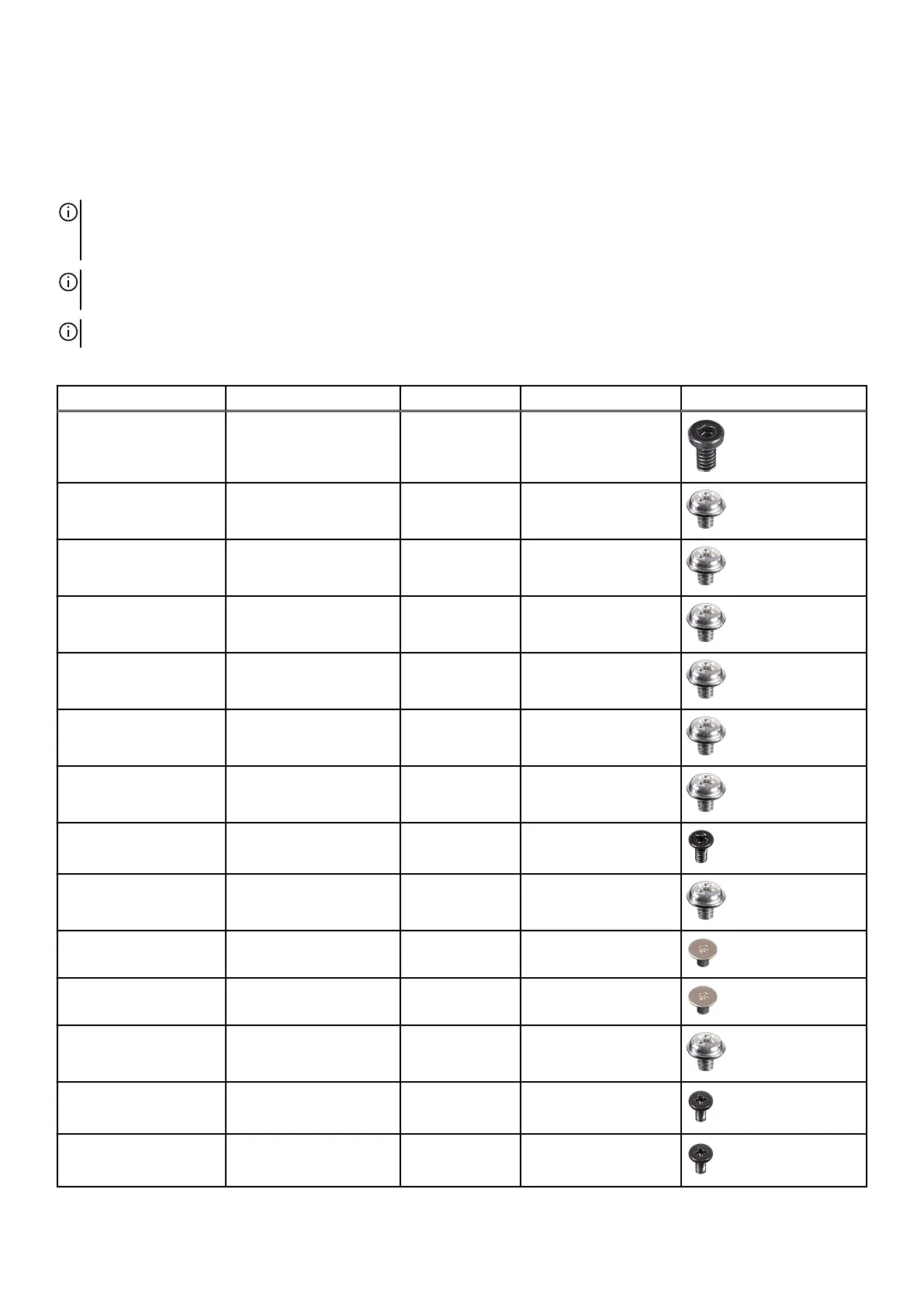

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Side-panel release latch Chassis 6-32x12-7L 1
2.5-inch hard-drive cage Chassis #6-32 2
3.5-inch hard-drive cage Chassis #6-32 2
Power-supply unit
bracket
Power-supply unit cage #6-32 2
Power-supply unit Chassis #6-32 4
Right tron-light board Chassis #6-32 4
Radiator and fan
assembly
Radiator and fan cage #6-32 4
Antennas Chassis M3x4t 4
Top bezel Chassis #6-32 4
Solid-state drive System board M2x2.5 1
Wireless card System board M2x2.5 1
Cable-management
panel
Chassis #6-32 2
Front-panel light-board Front bezel M2x4 4
Power button module Front bezel M2x4 2
11
