Alienware m17 P37E - Page 42

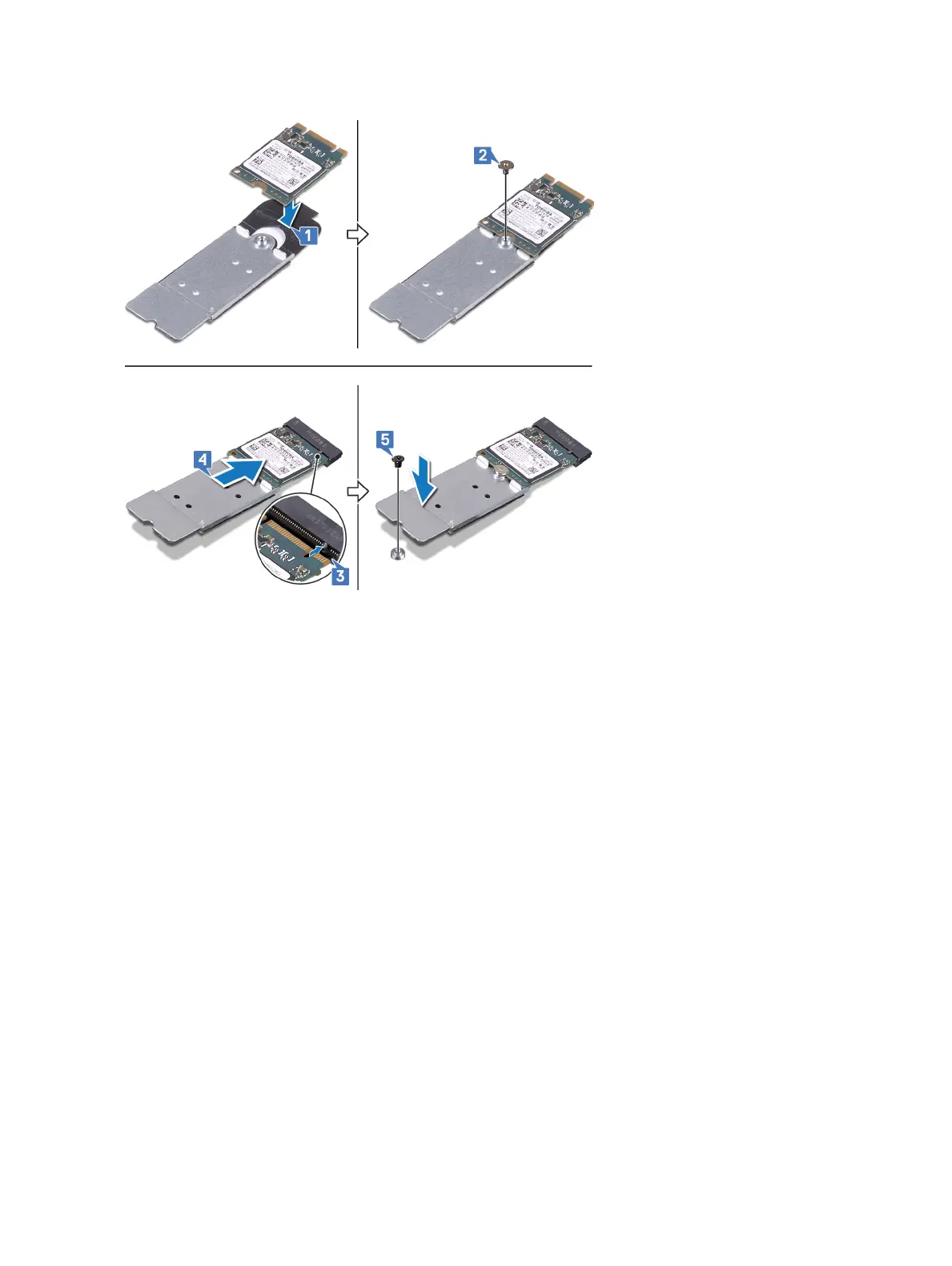

5 Replace the screw (M2x3) that secures the M.2 2230 bracket to the palm-rest assembly.
6 Align the screw holes of the M.2 thermal shield with the screw holes on the palm-rest assembly and system board.
42
