Replacing the display panel
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure

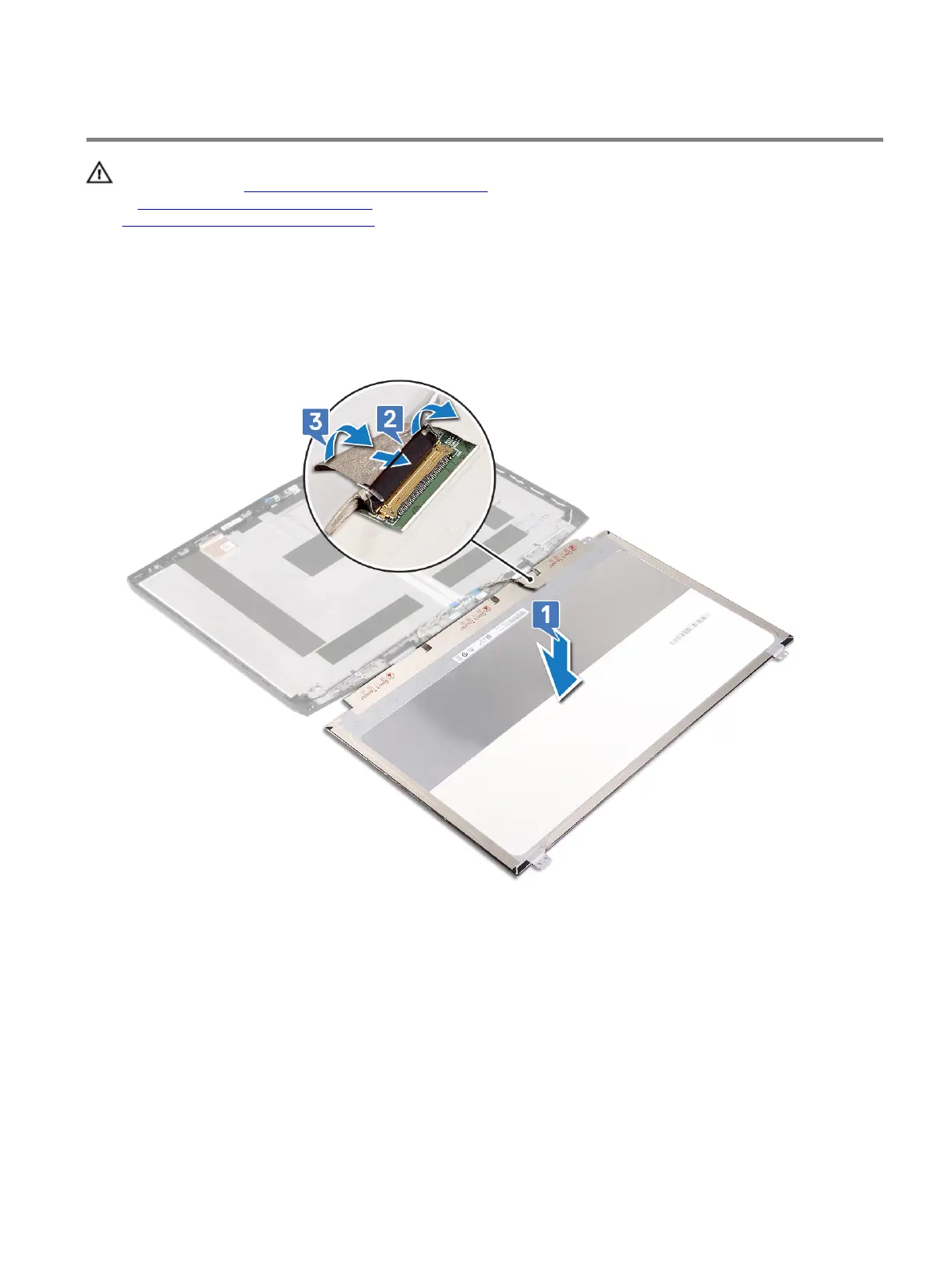

1 Place the bottom edge of the display panel at the base of the display back-cover and antenna assembly.
2 Slide the display cable into the connector on the display panel and close the latch to secure the cable .
3 Adhere the tape that secures the display-cable connector latch to the display panel.
4 Turn over the display panel and gently place it on the display back-cover and antenna assembly.
77
