Steps

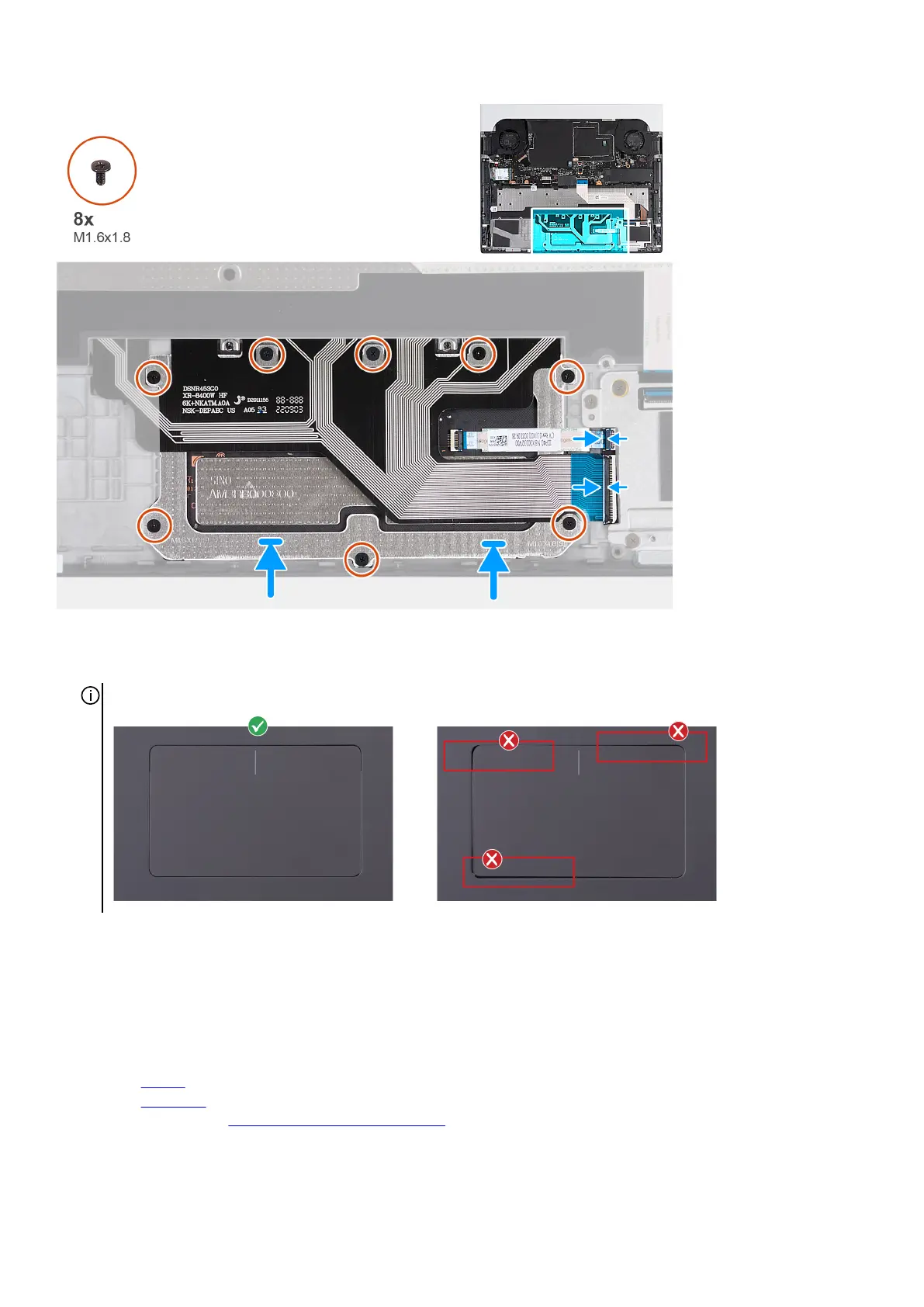

1. Align and place the touchpad into the slot on the palm-rest and keyboard assembly.
NOTE: Turn the computer over and open the display. Ensure that the touchpad is equally aligned along all four sides.
2. Replace the eight screws (M1.6x1.8) that secure the touchpad to the palm-rest and keyboard assembly.
3. Slide the touchpad cable into its connector on the touchpad and close the latch to secure the cable.
4. Fold down the keyboard-controller board cable.
5. Slide the keyboard-controller board cable into the connector on the keyboard-controller board and close the latch to secure the
cable.
Next steps
1. Install the
battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
