Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
Phillips screwdriver #0
Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then
place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when
the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a
component.
NOTE: Screw color may vary with the configuration ordered.

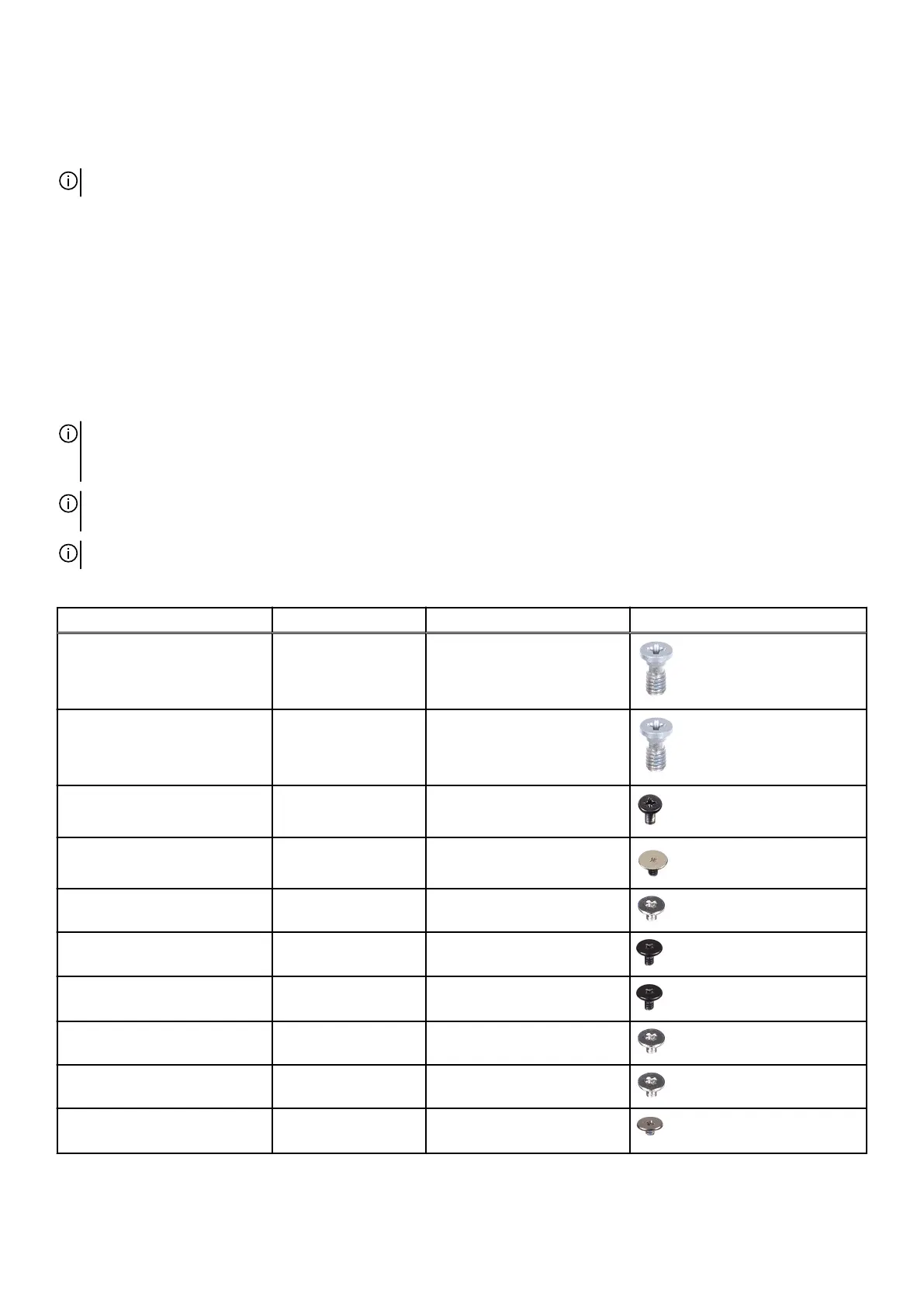

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover M2.5x5 2
Base cover M2.5x5 (captive
screws)
4
Battery M2x4 6
Wireless-card bracket M2x3 1
Wireless-card thermal shield M1.6x1.8 1
Rear I/O cover M1.6x3 2
Antennas M1.6x3 4
Solid-state drive thermal shield M1.6x1.8 1
Touchpad M1.6x1.8 8
Keyboard-controller board
bracket
M1.6x1.5 5
8
