NOTE: Place the computer on a soft and clean surface to avoid scratching the display.
Steps

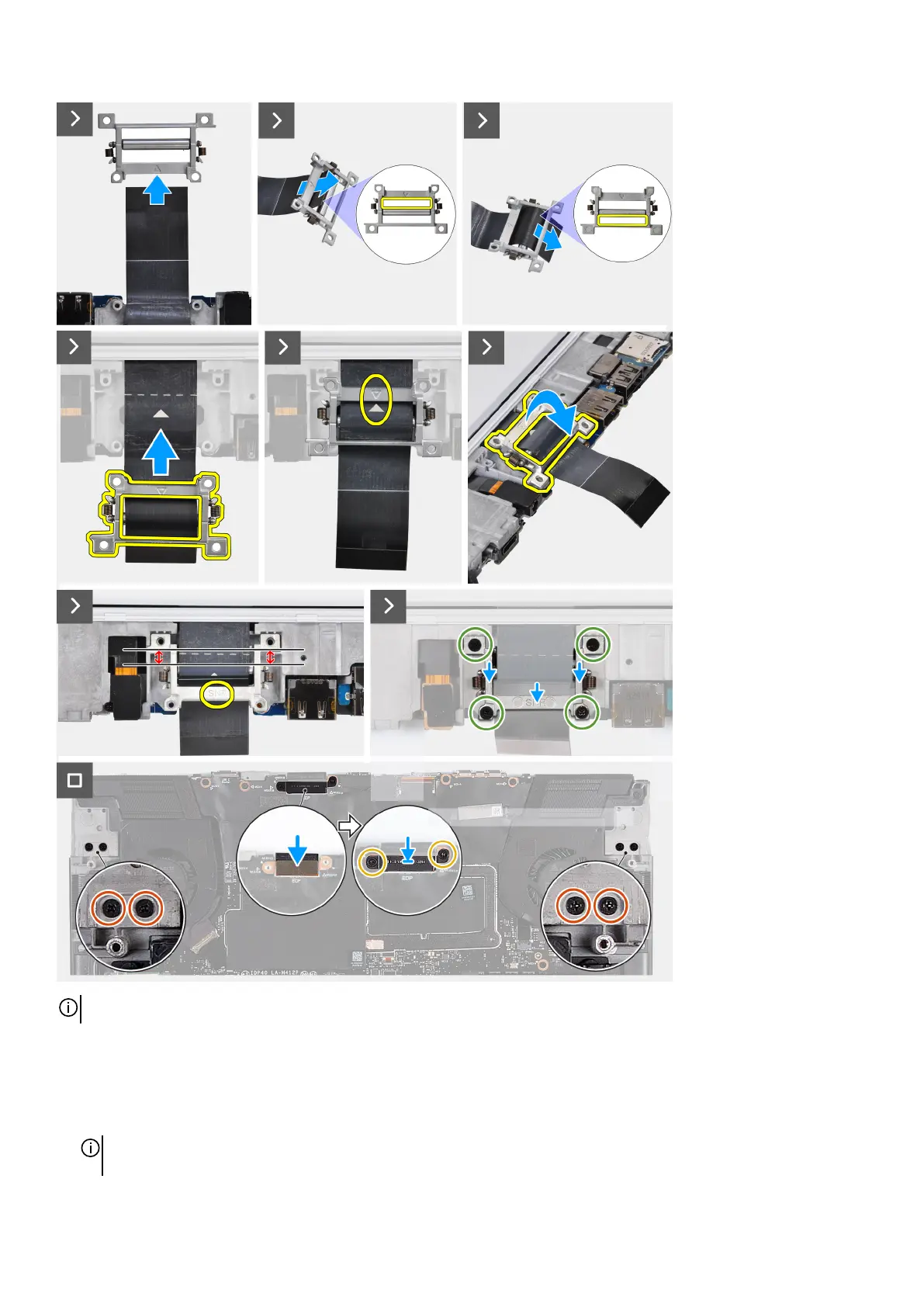

1. Align the screw holes on the display assembly with the screw holes on the palm-rest and keyboard assembly.
2. Gently slide the display cable through the plastic strip between the palm-rest and keyboard assembly and rear-I/O cover.
3. Route the display cable through the slit on the other side of the rear-I/O cover.
NOTE: The display cable must be routed under the rear-I/O cover in order to properly install the display assembly. Failing to
do so, will damage the display cable.
