Alienware x14 R2 - Page 42

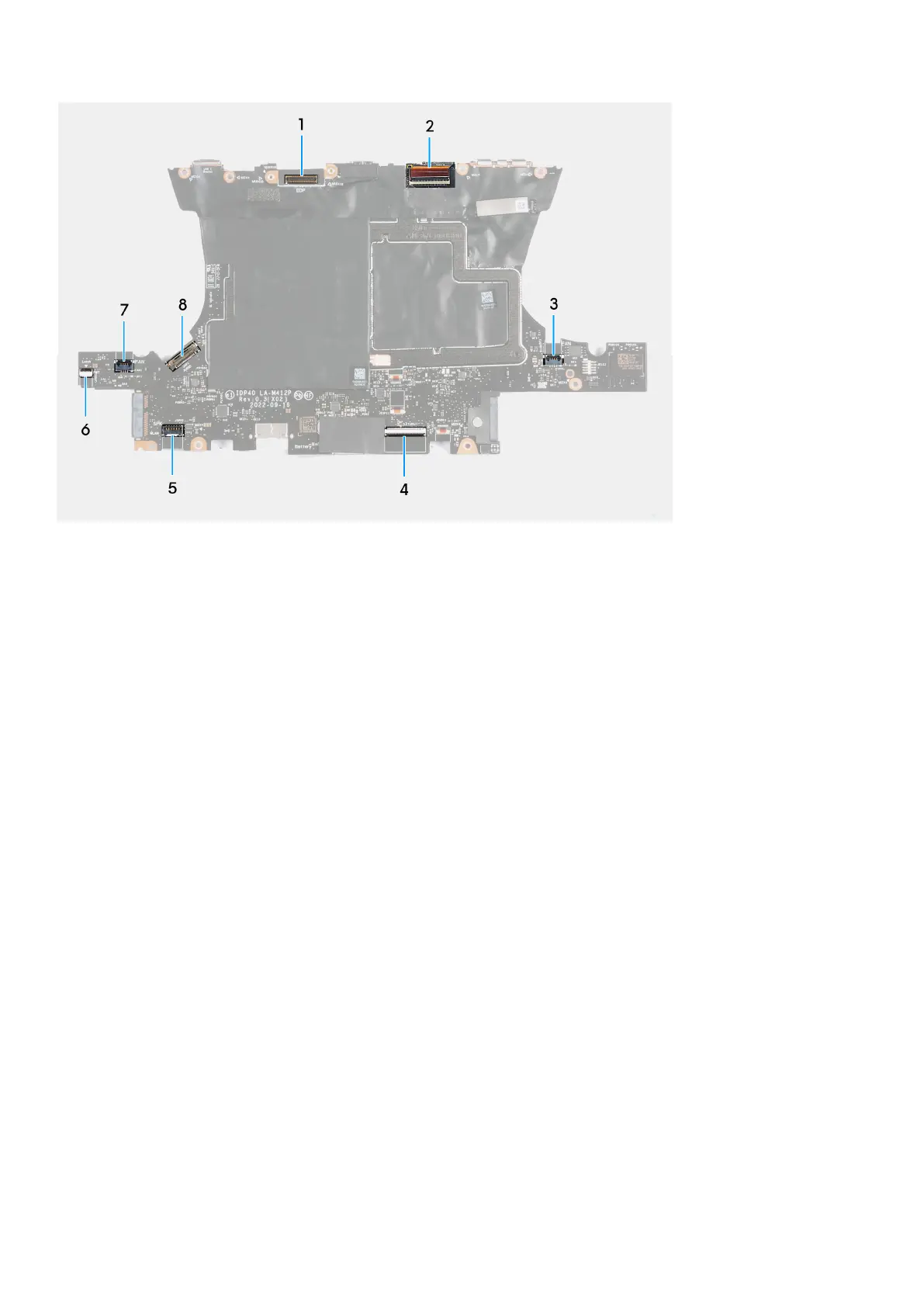

1. Display cable 2. I/O-board cable
3. Right fan cable 4. Keyboard-controller board cable
5. Speaker cable 6. Power-button cable
7. Left fan cable 8. Headset port cable
The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
