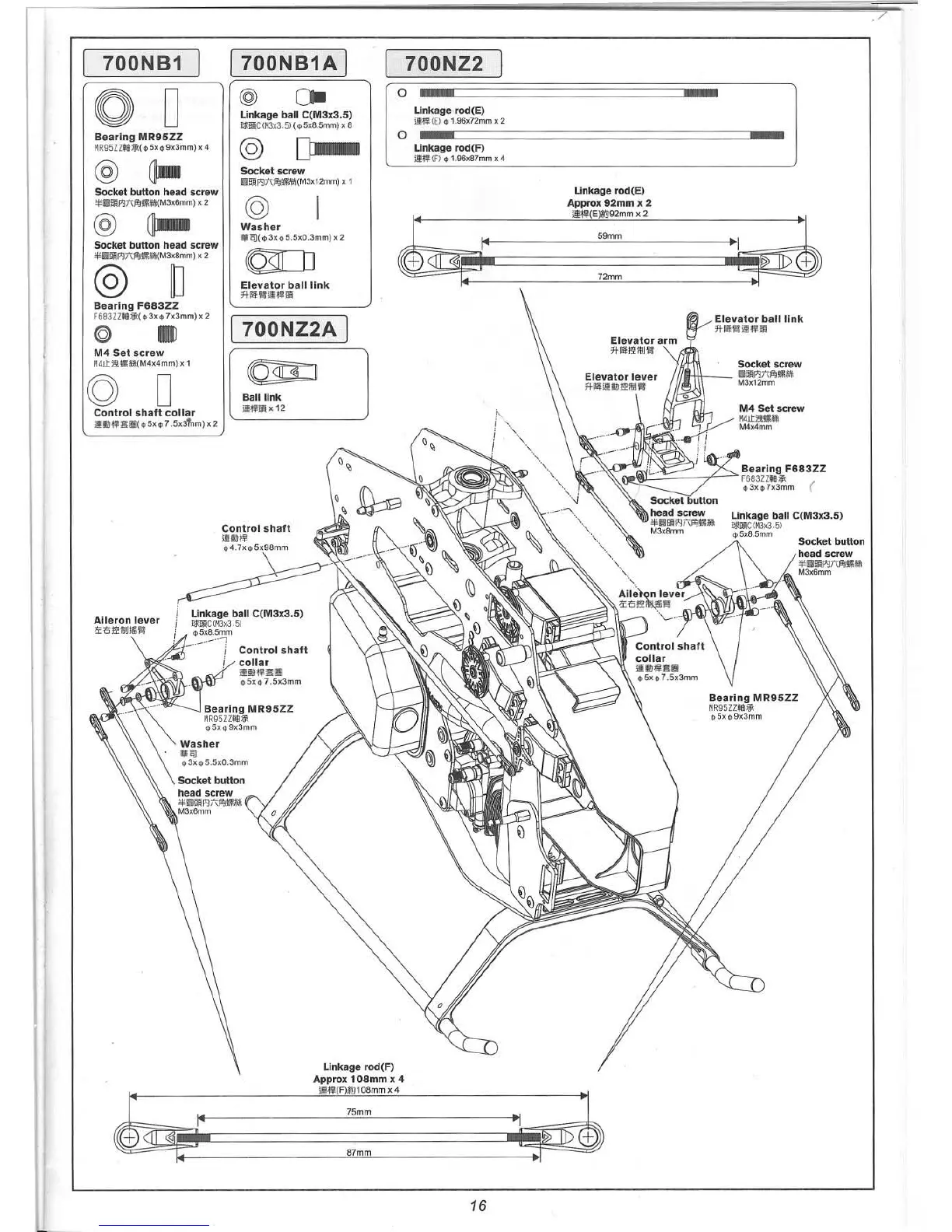

Align T-Rex 700 Nitro Pro - Page 17

7
-
Socket screw
IQJHliPJi\)3;j!:!l;\\\\
M3x12mm
Linkage ball C(M3x3.5)
I3fBi'iC(M3x3.5)
$ 5x8.5mm
Elevator ball link
J+1I1!'ltJmI<!Bi'i
--
72mm
59mm
Linkage rod (E)
Approx 92mm
x 2
iI~(E)~92mm x 2
700NZ2
o
IIIIIIII
Linkage rod (E)
Jml<!(EJ $ 1.96x72mm x 2
0_
Linkage rod(F)
Jml<!(F) $ 1.96x87mm x 4
75mm
Ball link
JmI<!Bi'ix 12
700NZ2A
87mm
Linkage rod (F)
Approx 108mm x
4
iI!~(F)~108mm x 4
@
Washer
Jl'QJ( $ 3x $ 5.5xO.3mm) x 2
Elevator ball link
J+II1!MJm!!i!HIi
[ 700NB1A)
@ 0-
Linkage ball C(M3x3.5)
I3fHliC(M3x3.5) ($ 5x8.5mm) x 8
@ OJUllllllIKIIIWl1
Socket screw
!]][i'H")i\)3;j~'!;;\\\\(M3x12mm) x 1
Socket button head screw
*~HliPJi\)3;j~;\\\\(M3x6mm) x 2
Bearing MR95ZZ
fIR95ZZf61:iji:($ 5X$ 9x3mm) x 4
700NB1
M4 Set screw
M4Jt;.'I!~;\\\\(M4x4mm) x 1
Socket button head screw
*I>HliPJi\)3;j~'!;;\\\\(M3x8mm) x 2
Aileron lever
<c '5~:tHU~
Bearing F683ZZ
F683ZZf61:iji:( $ 3x $ 7x3mm) x 2
o 0
(Q) D
Control shaft collar
Jm01JI<!E~($5x$ 7.5x3Tnm) x 2
16
