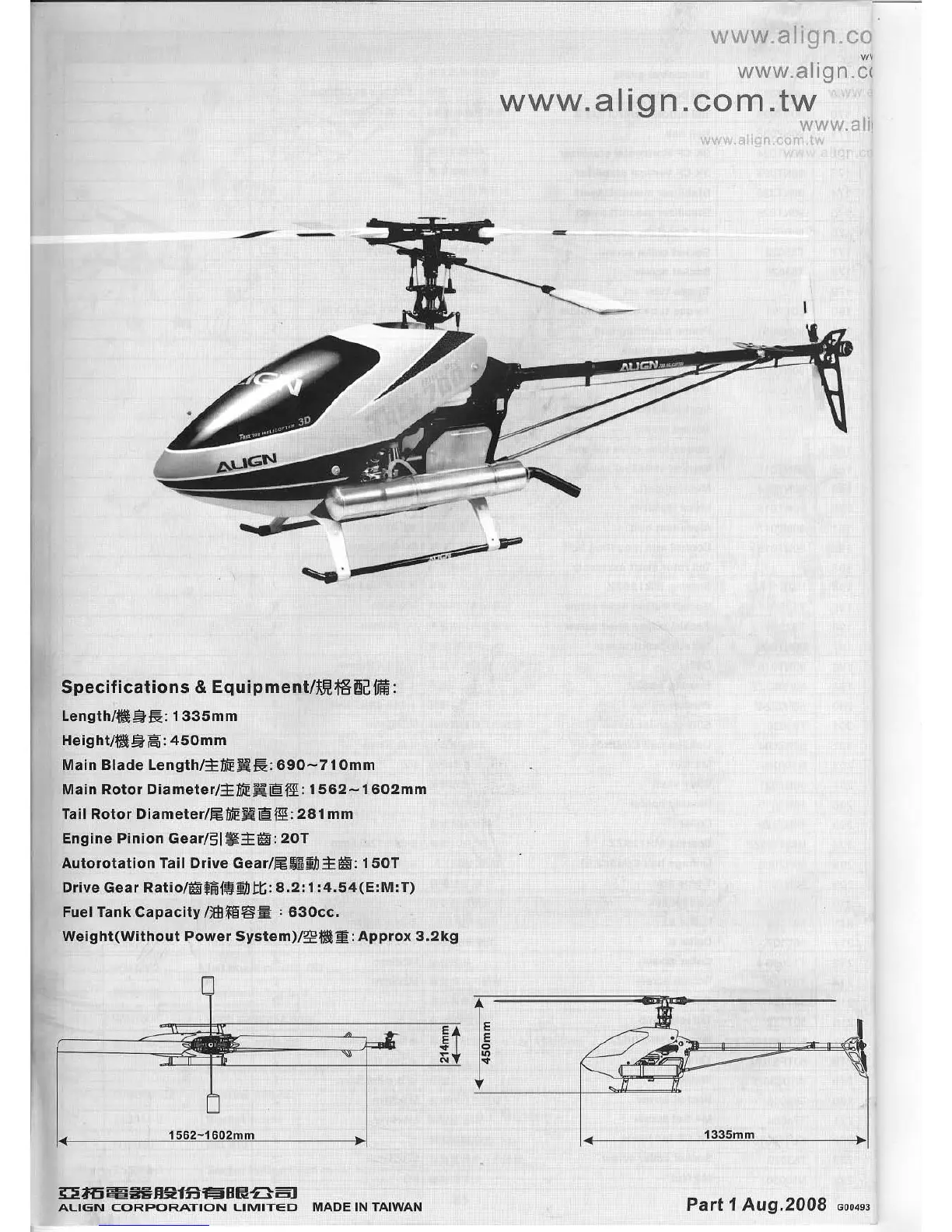

Align T-Rex 700 Nitro Pro - Specifications & Equipment

www.align.co
WI
www.align.c(
www.align.com.tw
www.ali!
Specifications & EquipmentnJH~~G1;m:
Length/~~~: 1335mm
Height/~~~: 450mm
Main Blade Length/±mE~~: 690-71 Omm
Main Rotor Diameter/±mE~~t~: 156271602mm
Tail Rotor Diameter/F=§1ijE~~t~: 281 mm
Engine Pinion Gear/51~±~: 20T
Autorotation Tail Drive Gear/F=§,~l!§iJJ±~:150T
Drive Gear Ratio/~'RIii~iJJt~: 8.2: 1:4.54(E:M:T)
Fuel Tank Capacity
f)E13~!@~ : 630cc.
Weight(Without Power System)/~~~: Approx 3.2kg
E
E
o
10
'<t
1562-1602mm
£::!m~a&n~fH§8~fli§']
ALIGN CORPORATION LIMITED MADE IN TAIWAN
1335mm
Part 1Aug.2008 G00493
