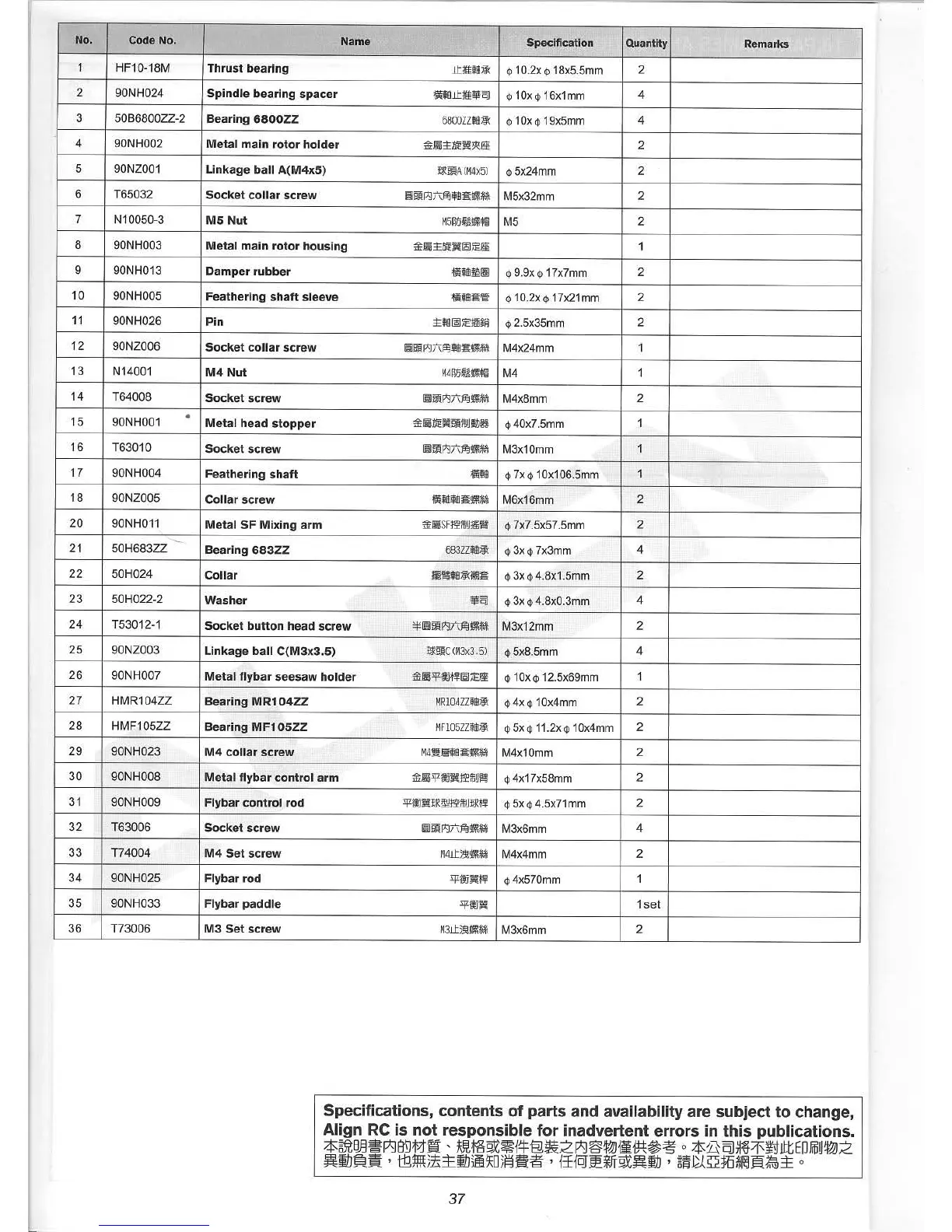

Align T-Rex 700 Nitro Pro - Page 38

No.
Code No.
Name
Specification
Quantity
Remarks
1
HF10-18M
Thrust bearing
ltJ1Uffi~(
¢ 10.2x ¢ 18x5.5mm
2
2
90NH024
Spindle bearing spacer
1iUffiltJ1Hi!Q]
¢ 10x¢ 16x1mm
4
3
50B6800ZZ-2
Bearing 6800ZZ
6800mffi~\
¢ 1Ox¢ 19x5mm
4
4
90NH002
Metal main rotor holder
IiZ.I1i'tDli'j'lEZ~
2
5
90NZ001
Linkage ball A(M4x5)
I>1fl&A(M4x5)
¢ 5x24mm
2
6
T65032
Socket collar screw
1!!Ifl&V'Ji\FEi,ffi,§:~'Y1j\;\:
M5x32mm2
7
N10050-3
M5 Nut
M51J!JIiin'Y1!§
M5
2
8
90NH003
Metal main rotor housing
IiZ.I1i'tWi'~l§];(E~
1
9
90NH013
Damper rubber
WiM!l!1!!I
¢9.9x¢17x7mm
2
10
90NH005
Feathering shaft sleeve
Wi,ffi'§:~
¢10.2x¢17x21mm
2
11
90NH026
Pin
,Uffil§];(EWHi'J
¢ 2.5x35mm
2
12
90NZ006
Socket collar screw
l!!IiJljV'Ji\FEi,ffi,§:~'Y1j\;\:M4x24mm
1
13
N14001
M4 Nut
M41J!J1ii~~!§
M4
1
14
T64008
Socket screw
1!!Ifl&V'J7\FEi~'Y1j\;\:
M4x8mm
2
15
90NH001
•
Metal head stopper
IiZI!:iiDli'~fl&ilJUID35
¢ 40x7.5mm
1
16
T63010
Socket screw
1!!Ifl&V'Ji\FEi~'Y1j\;\:
M3x10mm
1
17
90NH004
Feathering shaft
WiM
¢ 7x ¢ 1Ox106.5mm
1
18
90NZ005
Collar screw
Wi,ffi,ffi'§:~j\;\:
M6x16mm
2
20
90NH011
Metal SF Mixing arm
IiZI!:iiSFt:1'ilJUj$~
¢ 7x7.5x57.5mm
2
---
21
50H683ZZ
Bearing 683ZZ
683mffi~\
¢ 3x ¢ 7x3mm
4
22
50H024 Collar
j'rJg~,ffi)J\1!IJ!'§:
¢ 3x ¢ 4.8x1.5mm
2
23
50H022-2
Washer
¥Q]
¢ 3x ¢ 4.8xO.3mm
4
24
T53012-1
Socket button head screw
*1!!Ifl&V'J7\FEi~j\;\:M3x12mm
2
25
90NZ003
Linkage ball C(M3x3.5)
J)Kfl&C(M3x3.5)
¢ 5x8.5mm
4
26
90NH007
Metal flybar seesaw holder
IiZI!:iiIjZi~f~l§];(E~
¢ 1Ox¢ 12.5x69mm
1
27
HMR104ZZ
Bearing MR1 04ZZ
MR104mffi~\
¢4x¢ 10x4mm
2
28
HMF105ZZ
Bearing MF1 05ZZ
MF105mffi~(
¢5x¢ 11.2x¢ 10x4mm
2
29
90NH023
M4 collar screw
M41!1!I!i,ffi'§:~j\;\:M4x10mm
2
30
90NH008
Metal flybar control arm
IiZ~IjZifj~J"i'ilJU~
¢ 4x17x58mm
2
31
90NH009
Flybar control rod
IjZi~~j))(1!\!J"i'ilJUfj)(f~
¢5x¢4.5x71mm
2
32
T63006 Socket screw
1!!Ifl&V'J7\FEi~'Y1j\;\:M3x6mm
4
33
T74004
M4 Set screw
M4lt)3.J~'Y1j\;\:M4x4mm
2
34
90NH025
Flybar rod
IjZi~~f~
¢ 4x570mm
1
35
90NH033
Flybar paddle
IjZi~~
1set
36
T73006
M3 Set screw
M3lt)3.J~j\;\:M3x6mm
2
