Align T-Rex 700 Nitro Pro - Page 46

:173
!
i
f
i
i
(~ /f
~:(lJJj
/~,
/
/
/
"
)

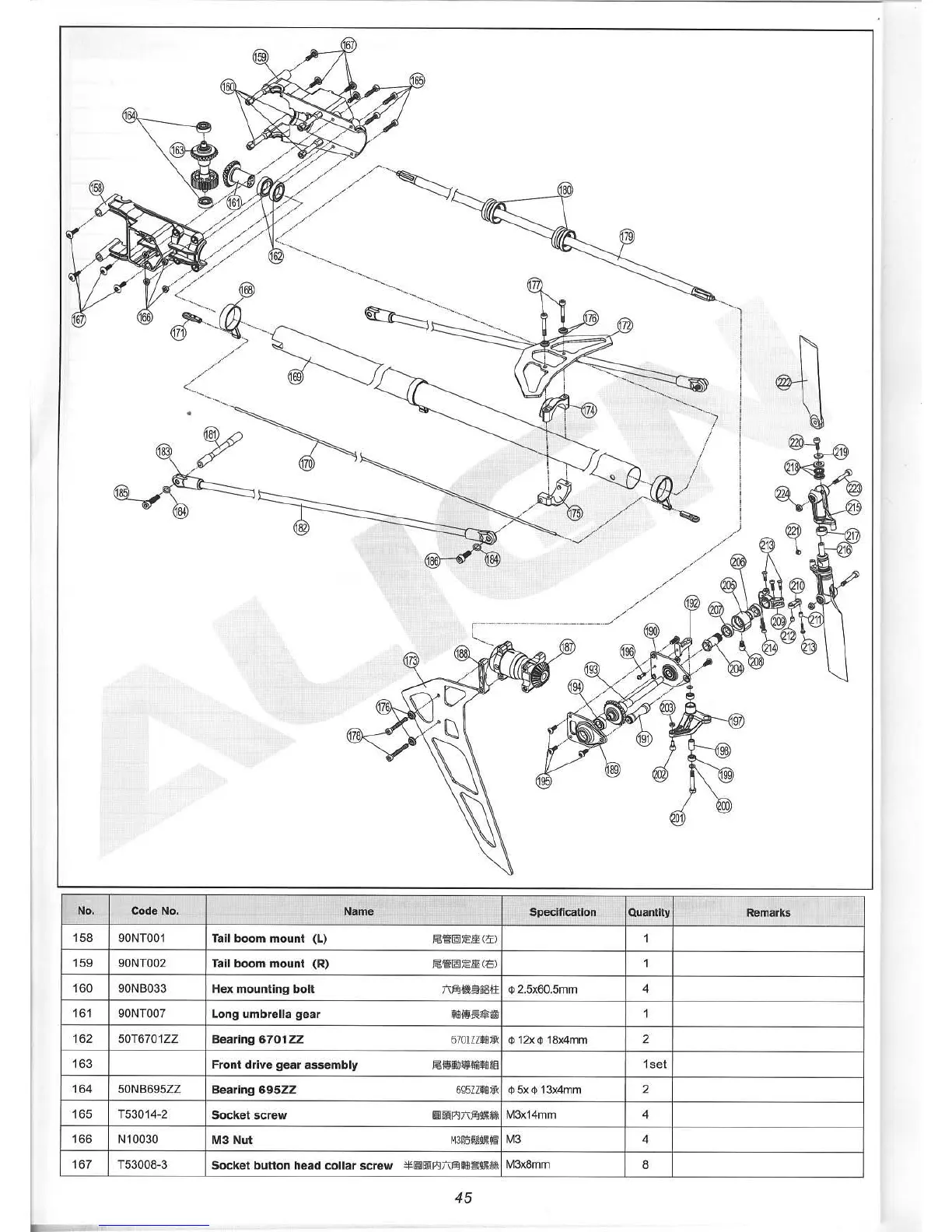

No.
Code No.
Name
Specification
Quantity
Remarks
158
90NTOO1
Tail boom mount (L)
I'§~~~~ (;J:)
1
159
90NT002
Tail boom mount (R)
I'§~~~~ (:to)
1
160
90NB033
Hex mounting bolt
7\Fi3~§HgU
¢ 2.5x60.5mm
4
161
90NT007
Long umbrella gear
iJffiil~~M
1
162
50T6701ZZ
Bearing 6701ZZ
670lZZM;W\¢ 12x ¢ 18x4mm
2
163
Front drive gear assembly
1'§1Ii1JiiiliJiffiM*,§1set
164
50NB695ZZ
Bearing 695ZZ
69SZZiJffiiJ\¢ 5x ¢ 13x4mm
2
165
T53014-2
Socket screw
~mF'J7\Fi3~**,*
M3x14mm 4
166
N10030
M3 Nut
M31\JJ~J~*I§
M3 4
167
T53008-3
Socket button head collar screw
*[!:j]mF'J7\Fi3ME~**,*
M3x8mm
8
45
