Alinco DJ-500E - Specifications

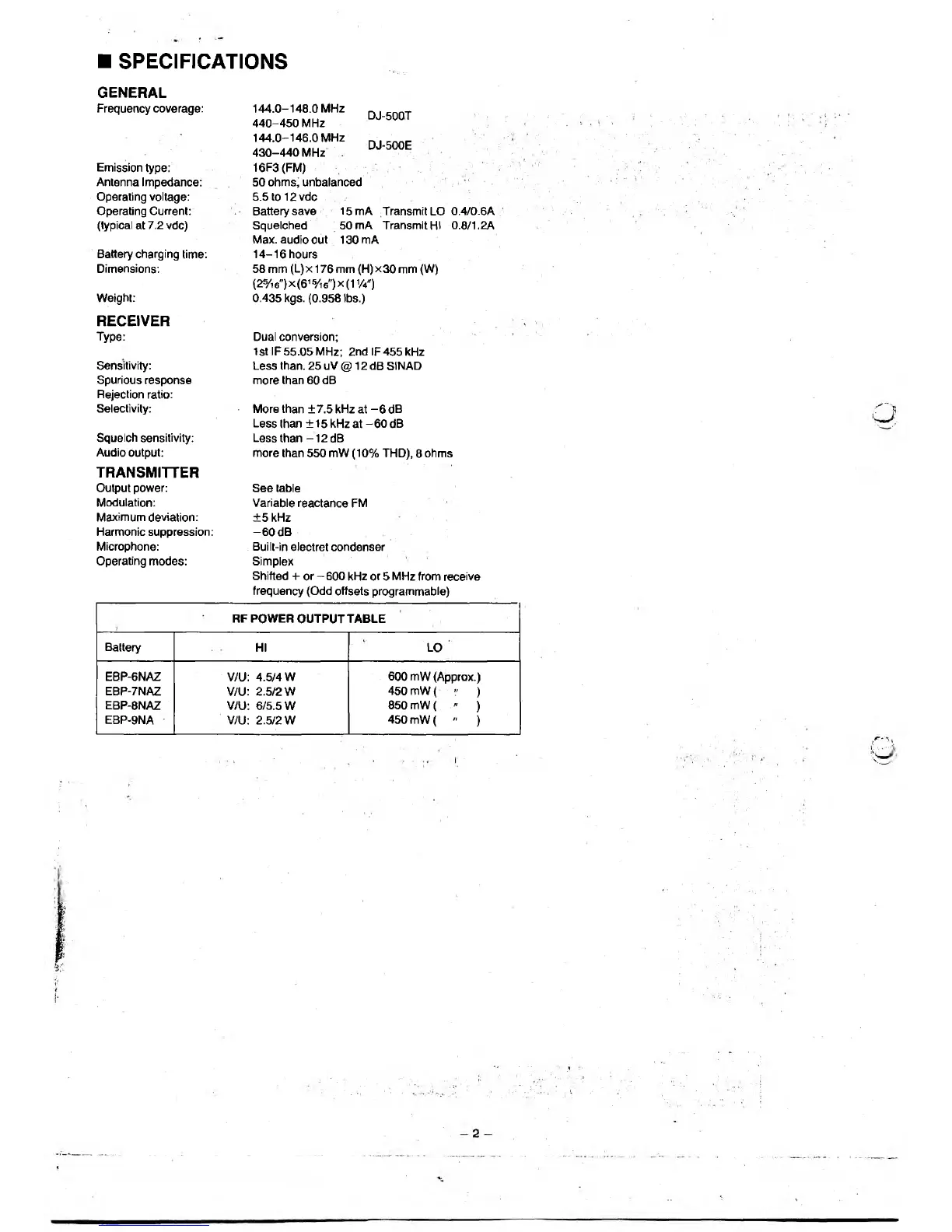

■ SPECIFICATIONS
GENERAL
Frequency coverage:
Emission type:
Antenna Impedance:
Operating voltage:
Operating Current:
(typical at 7.2 vdc)
Battery charging time:
Dimensions:
Weight:
RECEIVER
Type:
Sensitivity:
Spurious response
Rejection ratio:
Selectivity:
Squelch sensitivity:
Audio output:
TRANSMITTER
Output power:
Modulation:
Maximum deviation:
Harmonic suppression:
Microphone:
Operating modes:
DJ-500T
DJ-500E
15 mA Transmit LO 0.4/0.6A
50 mA Transmit HI 0 .8/1.2A
130 mA
14 4.0-1 48 .0 MH z
4 4 0 -4 5 0 MHz
144 .0-146 .0 M Hz
4 3 0 -4 4 0 M Hz
16F3 (FM)
50 ohms, unbalanced
5.5 to 12 vdc
Battery save
Squelched
Max. audio out
1 4 -1 6 hours
58 mm (L )x 17 6m m (H )x3 0m m (W)
(2 5 /i 6 ' ') X ( 6 15/ 16 ") X ( 1 1 /4")
0.435 kgs. (0.958 lbs.)
Dual conversion;
1st IF 55.05 MHz; 2nd IF 455 kHz
Less than. 25 uV @ 12 dB SINAD
more than 60 dB
More than ± 7 .5 kHz at - 6 dB
Less than ± 15 kHz at - 6 0 dB
Less than -1 2 d B
more than 550 m W (10% THD), 8 ohms
See table
Variable reactance FM
± 5 kHz
- 6 0 dB
Built-in electret condenser
Simplex
Shifted + or - 6 0 0 kHz or 5 MHz from receive
frequency (Odd offsets programmable)
RF POWER OUTPUT TABLE
Battery
HI
LO
EBP-6NAZ
V/U: 4.5/4 W
600 mW (Approx.)
EBP-7NAZ
V/U: 2.5/2 W
450 mW( " )
EBP-8NAZ
V/U: 6/5.5 W
850 mW ( " )
EBP-9NA V/U: 2.5/2 W
450 mW ( " )
