Alinco DJ-S1E - DJ-F1 T;E Cabinet Parts Location; Mechanical Parts List; Screw List

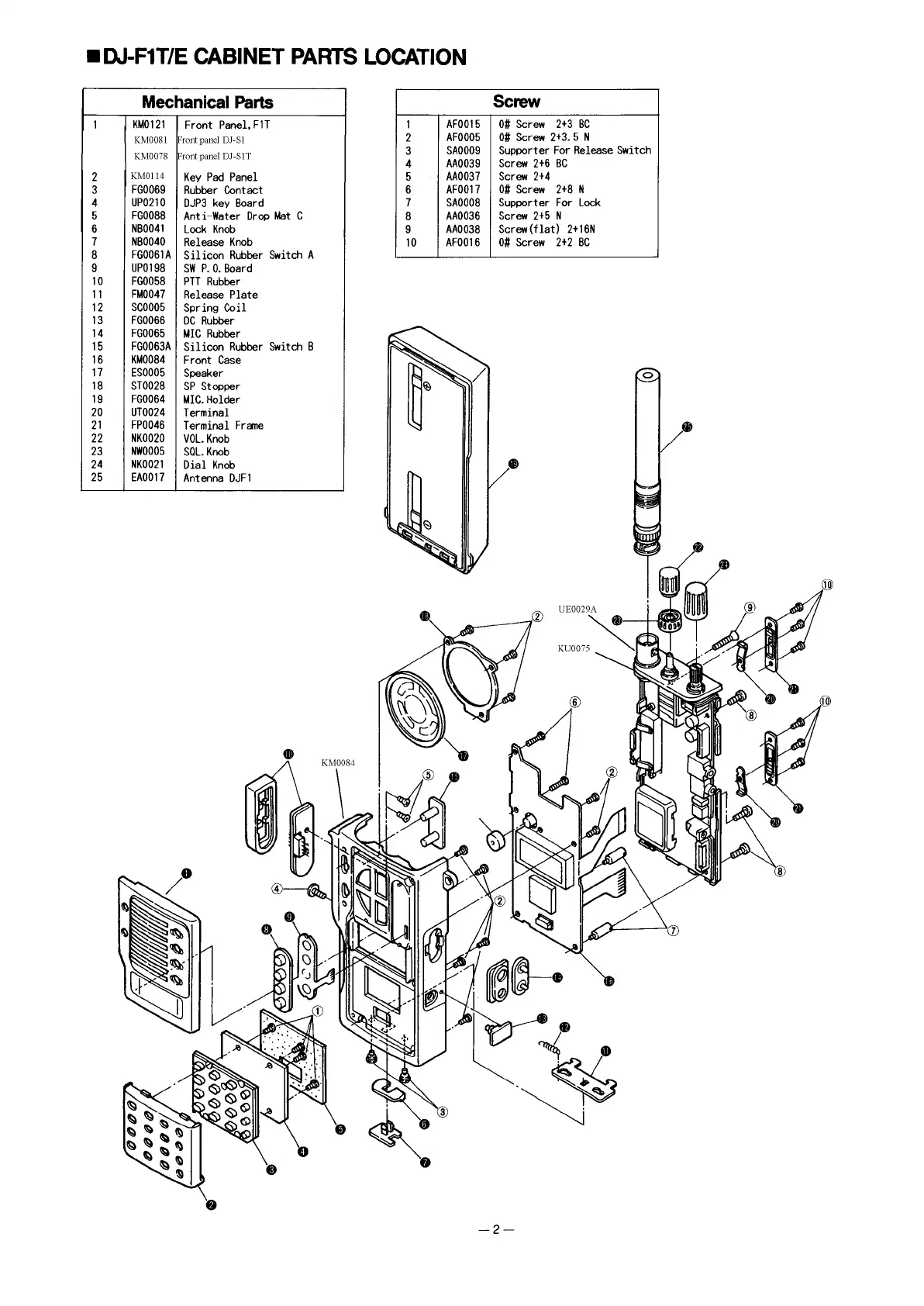

■ DJ-F1T/E CABINET PARTS LOCATION
Mechanical Parts
1
KM0121 Front Panel,F1T
KM 0081 Front panel DJ-S1
KM0078 Front panel DJ-S1T
2
KM0114
Key Pad Panel
3 FG0069
Rubber Contact
4
UP0210
DJP3 key Board
5 FG0088
Anti-Water Drop Mat C
6
NB0041
Lock Knob
7
NB0040
Release Knob
8
FG0061A
Silicon Rubber Switch A
9 UP0198
SW P. 0. Board
10 FG0058 PTT Rubber
11 FM0047
Release Plate
12 SCO005
Spring Coil
13 FG0066
DC Rubber
14 FG0065 MIC Rubber
15
FG0063A
Silicon Rubber Switch B
16 KM0084
Front Case
17 ES0005
Speaker
18 ST0028 SP Stopper
19
FG0064
MIC. Holder
20 UT0024
Terminal
21
FP0046
Terminal Frame
22 NK0020
VOL. Knob
23
NW0005
SQL. Knob
24
NK0021
Dial Knob
25 EA0017
Antenna DJF1
Screw
1
AF0015 0# Screw 2+3 BC
2
AF0005 0# Screw 2+3. 5 N
3
SA0009
Supporter For Release Switch
4
AA0039
Screw 2+6 BC
5
AA0037 Screw 2+4
6
AF0017 0# Screw 2+8 N
7 SA0008
Supporter For Lock
8
AA0036
Screw 2+5 N
9 AA0038
Screw(flat) 2+16N
10
AF0016 0# Screw 2+2 BC
