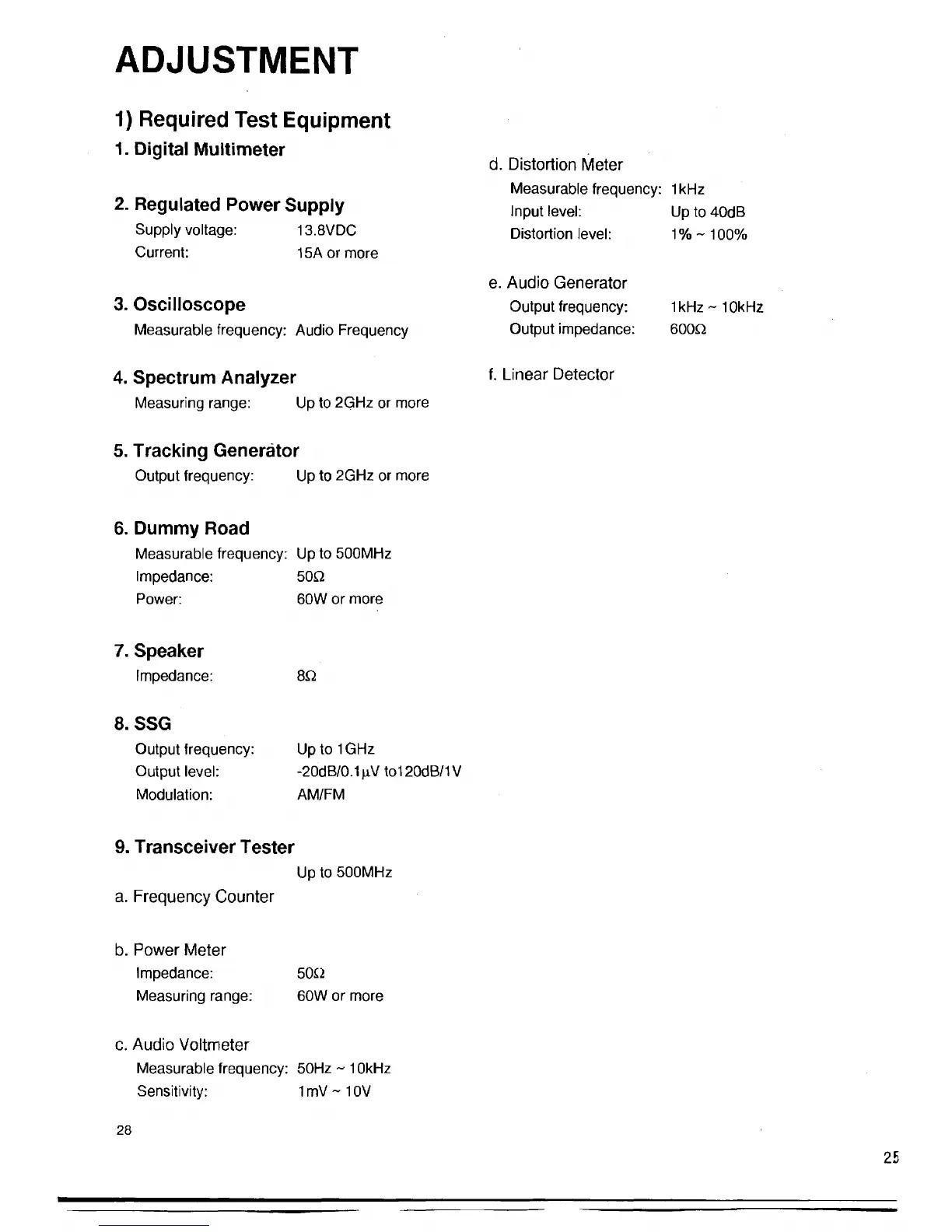

ADJUSTMENT
1) Required Test Equipment
1. Digital Multimeter
2. Regulated Power Supply
Supply voltage: 13.8VDC
Current: 15A or more
3. Oscilloscope
Measurable frequency: Audio Frequency
4. Spectrum Analyzer f- Linear Detector
Measuring range: Up to 2GHz or more
5. Tracking Generator
Output frequency: Up to 2GHz or more
d. Distortion Meter
Measurable frequency:
Input level:
Distortion level:
e. Audio Generator
Output frequency:
Output impedance:
6. Dummy Road
Measurable frequency: Up to 500MHz
Impedance: 50Q
Power: 60W or more
7. Speaker
Impedance:
8. SSG
Output frequency:
Output level:
Modulation:
9. Transceiver Tester
a. Frequency Counter
b. Power Meter
Impedance:
Measuring range:
c. Audio Voltmeter
Measurable frequency:
Sensitivity:
8Q
Up to 1GHz
-20dB/0.1ji.V to120dB/1V
AM/FM
Up to 500MHz
50£2
60W or more
50Hz ~ 10kHz
1mV~ 10V
1kHz
Up to 40dB
1 % ~ 1 0 0 %
1kHz ~ 10kHz
600£2
28
