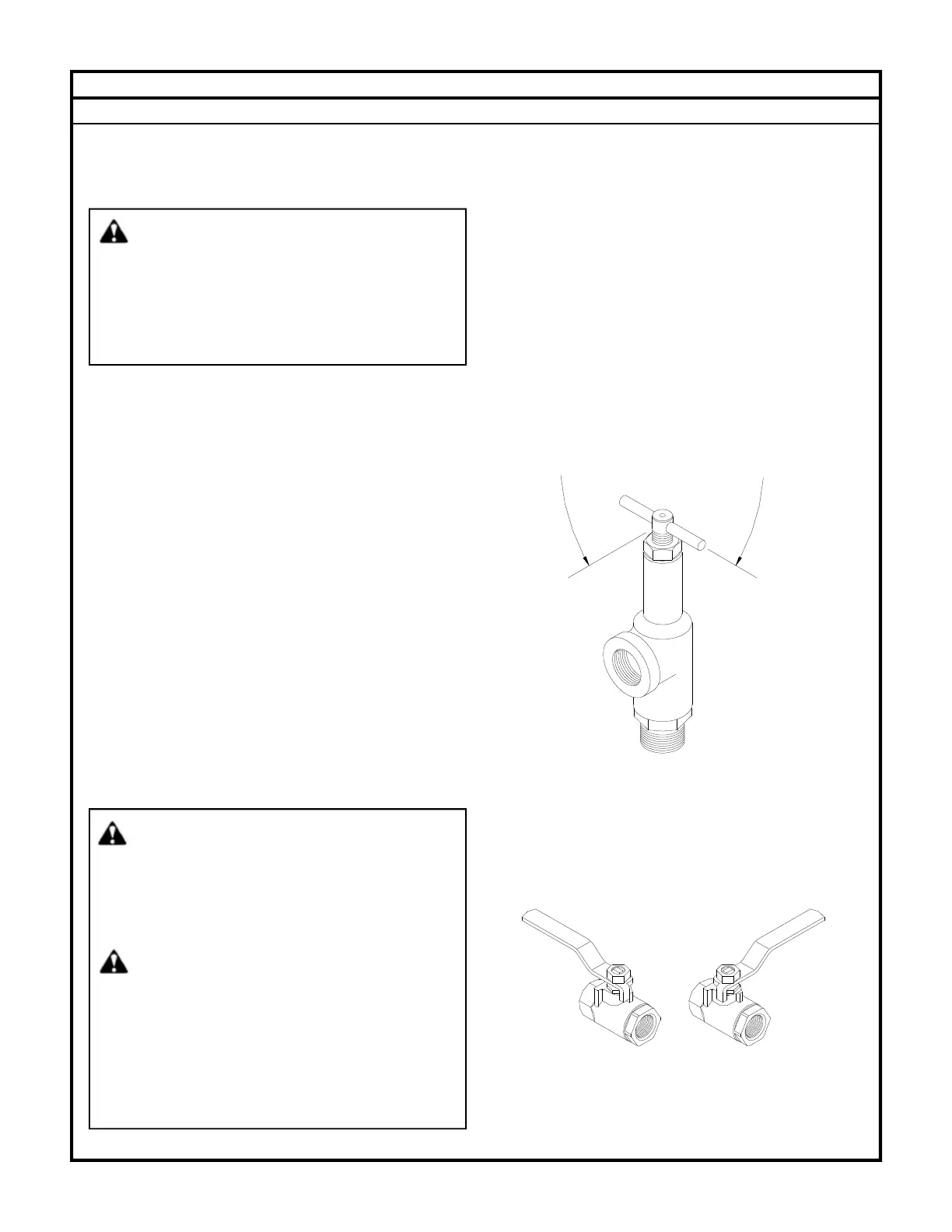

TEMPERATURE
DECREASE
INCREASE
TEMPERATURE
PRESSURE
REGULATING
VALVE
COMBINATION OPTION
ELECTRIC DRIVEN OIL FIRED CLEANER
08-15-03 Z08-02830F
ECN-02981
COMBINATION OPTION
INSTRUCTIONS
NOTE: In process of making steam, the water
flow through the coil has to be decreased. The
amount of water is determined by the pressure
and water temperature of your location.
If the incoming water temperature is as high
as 70°F, the amount of water going through
the coil has to decrease very little.
If the incoming water temperature is as low as
40°F, the amount of water going through the
coil has to be decreased quite a bit.
The water temperature is relative to the
season variation and should be taken in
consideration when operating steam.
1. Install the open gun assembly.
2. Open the ball valve on coil inlet assembly.
3. Set the temperature control to 300°F
MAXIMUM.
4. For startup see “START UP” section on the
previous page.
5. Regulate the temperature indicated on the
thermometer to 300°F by turning the
regulating valve on the coil inlet assembly
clockwise to DECREASE the temperature
and counter clockwise to INCREASE the
temperature.
6. For shut down follow “SHUT DOWN”
previously shown on this page.
7. Close the ball valve on the coil inlet
assembly.
WARNING: This machine should be
operated only by personnel instructed in and
familiar with its operation. The discharge
produced is 300°F / 150°C and can cause
SERIOUS BODILY INJURY to you and
anyone coming in contact with it.
WARNING: RISK OF INJECTION OR
SEVERE INJURY. KEEP CLEAR OF
NOZZLE. DO NOT DIRECT DISCHARGE
STREAM AT PERSONS. THIS EQUIPMENT
IS TO BE USED ONLY BY TRAINED
OPERATORS.
AVERTISSEMENT:RISQUE
D’INJECTION ET DE BLESSURES GRAVES.
SE TENIR À L’ÉCART DU JET. NE PAS
DIRIGER LE JET DE SOTIE VERS D’AUTRES
PERSONNES CONFIER L’UTILISATION LE
JET DE SOTIE VERS D’AUTRES
PERSONNES. CONFIER L’UTILISATION DE
CE MATÉRIEL À UN OPÉRATEUR QUALIFIÉ.
OPEN
CLOSED
9
