Allegion LCN Benchmark AU9100 Series User Manual

Page 2 of 20 December 2014 Ver 4
1 GENERAL ............................................................................................................................................ 2
2 REPLACEMENT PARTS AND SYSTEM COMPONENTS .............................................................. 3
3 PRE-INSTALLATION SITE AND PRODUCT CHECK .................................................................... 4
4 OPERATOR INSTALLATION ............................................................................................................ 5
5 WIRING ................................................................................................................................................ 7
6 ARM AND COVER INSTALLATION ................................................................................................ 8
7 OPERATIONAL CHECK................................................................................................................... 10
8 OPERATOR ADJUSTMENT ............................................................................................................. 11
9 RELEASE FOR SERVICE ................................................................................................................. 13
10 LCN AU9100 (Briton 2500) V4 SOFTWARE .................................................................................... 14
1 GENERAL
The LCN Benchmark® 9100 Series is an automatic electromechanical swing door operator for use on
hinged, centre pivoted, and offset pivoted doors. The controller is a microprocessor based system, tracking the
door position at any time during the cycle. When activated the Benchmark® 9100 drives the door to the full
open position creating the potential energy in the spring. When closing the electrical power is reduced and the
door closes by controlling the potential energy release in the spring force. The activating circuit opens the
door from any position on the closing swing. During power failure the Benchmark® 9100 acts as a manual
door closer (size 3). Door opening and closing cycles, including opening speed, back check speed, hold open
time delay, closing speed, and latch position are all adjustable.
WARNING
Always disconnect main power to the operator prior
to servicing or cleaning
Warning

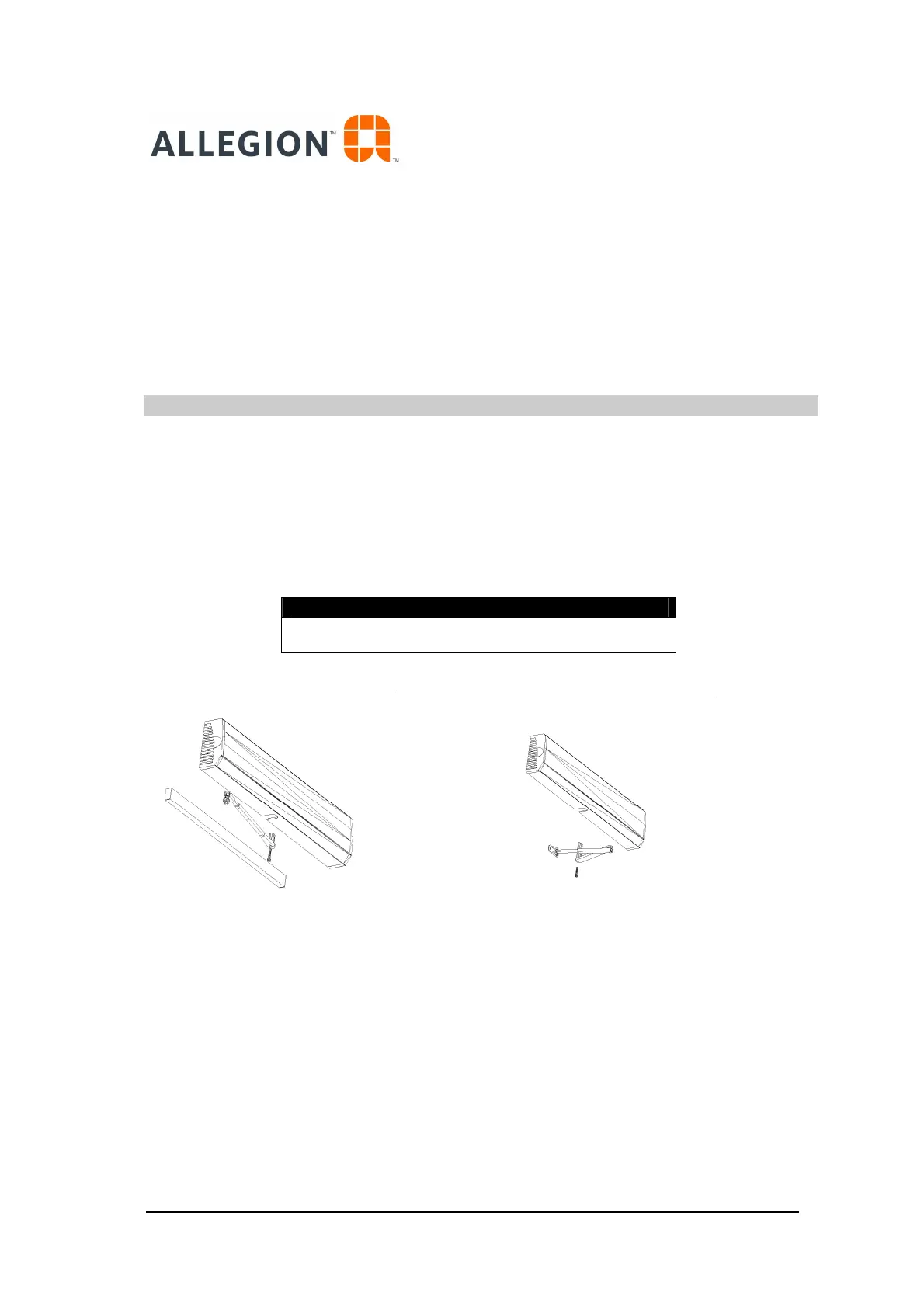

Swing door operator Swing door operator
Pull arm and track assembly Push arm assembly
LCE65006 LCE65007
