Page 8 of 20 December 2014 Ver 4

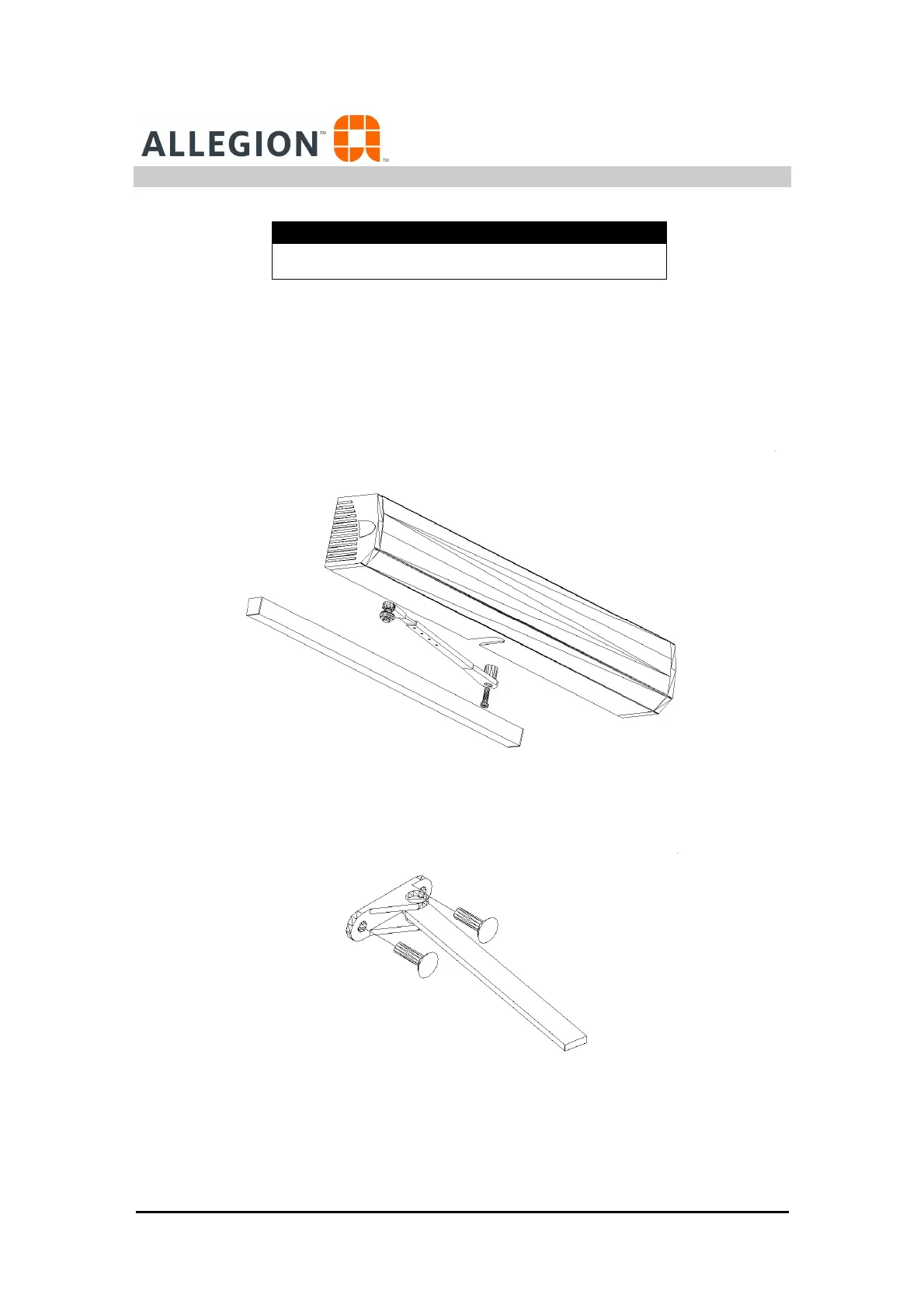

6 ARM AND COVER INSTALLATION
WA
WARNING
•
Keep hands, clothing, wires, t
operator motor when the operator is turned on
RNING
6.1 Make sure the operator power switch is turned OFF
6.2 Install a jumper across the control box MAIN ACT T28 and COMMON T27
6.3 Turn the operator power switch on. The operator motor will activate and drive to the full
open position.
6.4 Attach the arm to the operator spindle loosely with the 8-mm socket head screw (for push
systems ensure adjusting boss is inserted correctly).
6.5 Attach the arm to the door
6.5.1 For push systems attach the push arm shoe to the door
To Next Page
