Allen & Heath 14 XONE:42 User Guide

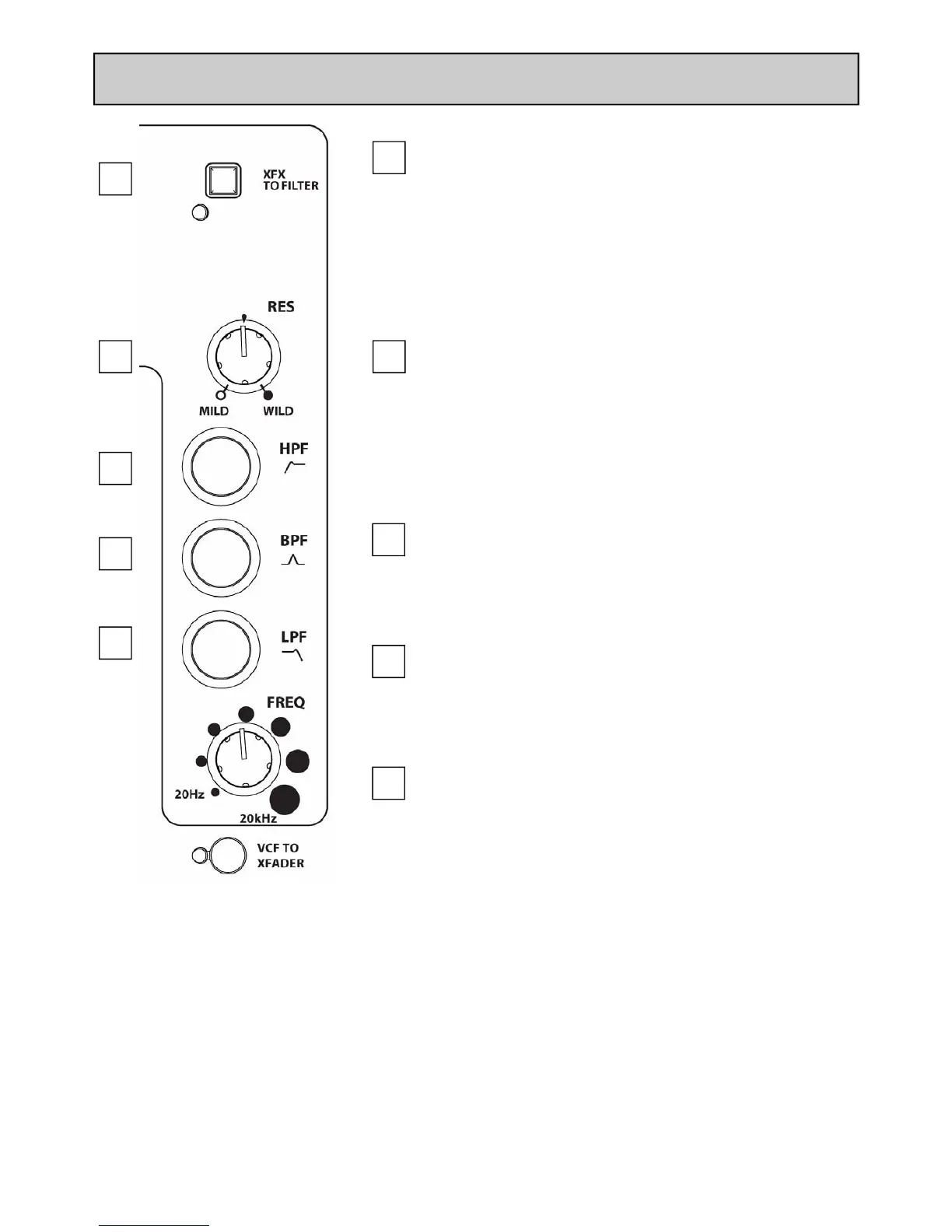

FILTER SECTION
1
2
3
4
5
1
X:FX Return to Filter
Pressing this button routes the X:FX return to the VCF
filter, instead of directly into the main mix buss. The
effected channel signal can then be filtered as well, allow-
ing extra versatility and creativity to be brought into the
mix. The blue LED lights to indicate that this function is
selected.
2
Resonance Control
This produces the classic analogue VCF sound by feeding
some of the filter output back to its input. The control
ranges from ‘mild’ producing a very subtle effect, to
‘wild’ producing a dramatic phase effect with feedback
just short of oscillation.
3
HPF Button
Turns on the high pass (bass cut) filter slope. The light
ring around the button illuminates when selected.
4
BPF Button
Turns on the band pass (bell shaped) filter slope. The
light ring around the button illuminates when selected.
5
LPF Button
Turns on the low pass (treble cut) filter slope. The light
ring around the button illuminates when selected.
