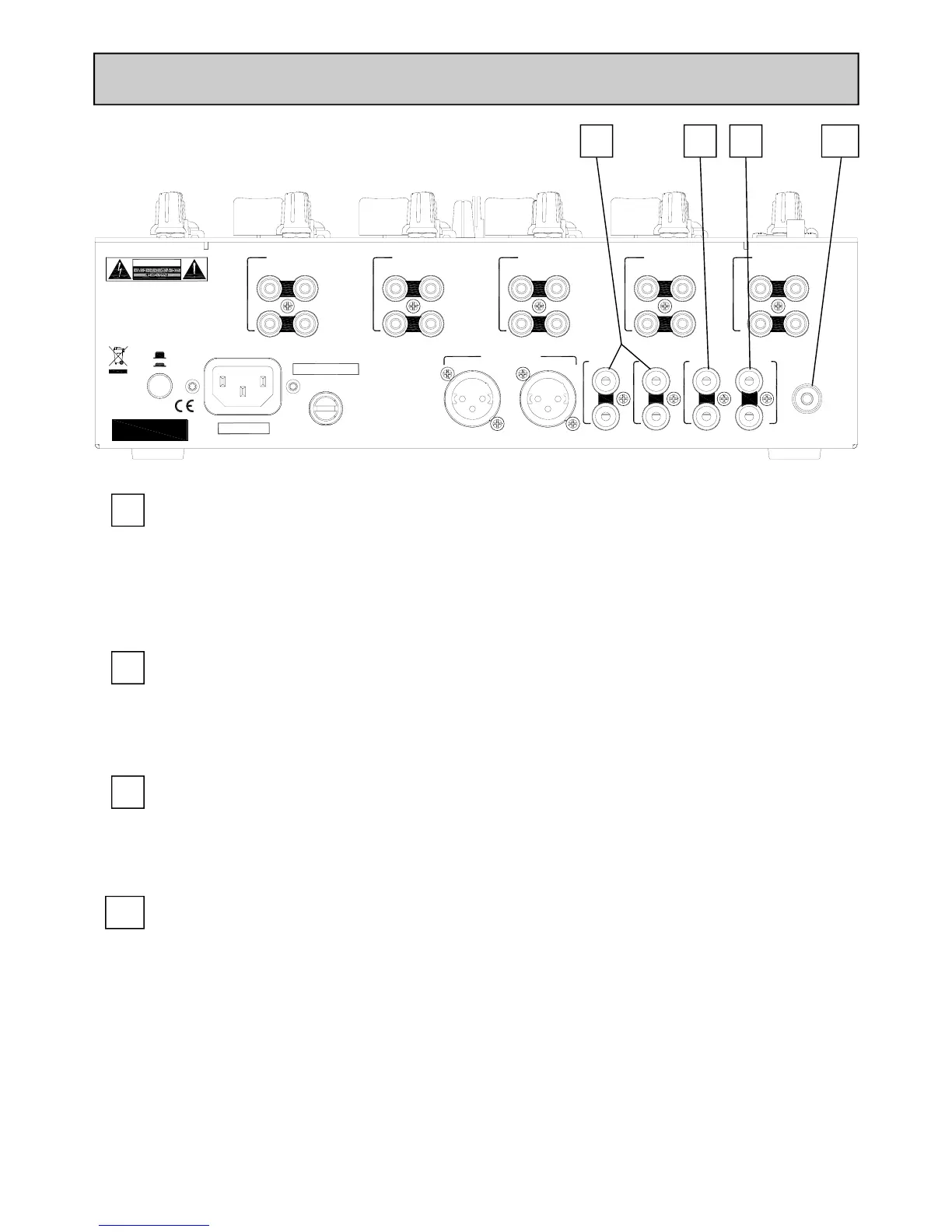

REAR CONNECTORS
10
Booth Output
RCA phono (–2dBu nominal). Provides a line level stereo feed to the DJ local monitor am-
plifier system. It is not affected by the master fader or cue system.
X:FX Send/Return
RCA phono. Connect your external effects device and use the X:FX dry / wet control to
send channel signals to the effects unit. The signal returns to the mix buss but can be routed
to the VCF filter by pressing the ‘X:FX Return to Filter’ button on the front panel. This al-
lows the filter to be ‘stacked’ with an external effects device.
10
Record Output
RCA Phono, nominal –10dBv (-8dBu). Pre-level mix output for connection to external re-
cording devices.
Chassis Earth Terminal
A screw terminal is provided for connecting the earth straps from turntables. This connec-
tion earths the metal parts of the turntable to reduce hum, buzz or similar audible noise get-
ting into the system.
