Allen & Heath 27 XONE:42 User Guide
USER-REPLACEABLE PARTS
AB3820 M3x8 CSK S/S (10 places - front
panel - marked here with ‘*’)
AB0076 M3x10 PAN BK (2 places - IEC plug)
AL3534 FUSE 500mA
AJ2887 PUSH BUTTON BK (PSU)
AB2810 4x5/16 PAN BK (4 places - XLRs)
AB2771 4x5/16 PAN BK
PLASTITE (9 places - RCAs)
AB8106 CHASSIS
GROUND POST
AB8172 POT NUT BK (30 places -
under knobs)
AJ3488 PUSH BUTTON
SQUARE RED 5MM
AJ5325 FILTER / CUE
BTN (11 places)
AJ5320 XONE FADER KNOB (5 places - faders)
AB3819 M3x5 CSK S/S (12 places -
faders - marked here with ‘+’)
AJ5558 X-FADE
ADJUST KNOB
AJ4251 PUSH BUTTON
ROUND BK 8MM (14 places)
AJ5324 LIGHT PIPE (11 places)
AJ7304 XONE EQ KNOB
(SML) (20 places)
AJ7305 XONE GAIN
KNOB (LGE) (10 places)
AB2810 4x5/16 PAN
BK (2 places - XLR)

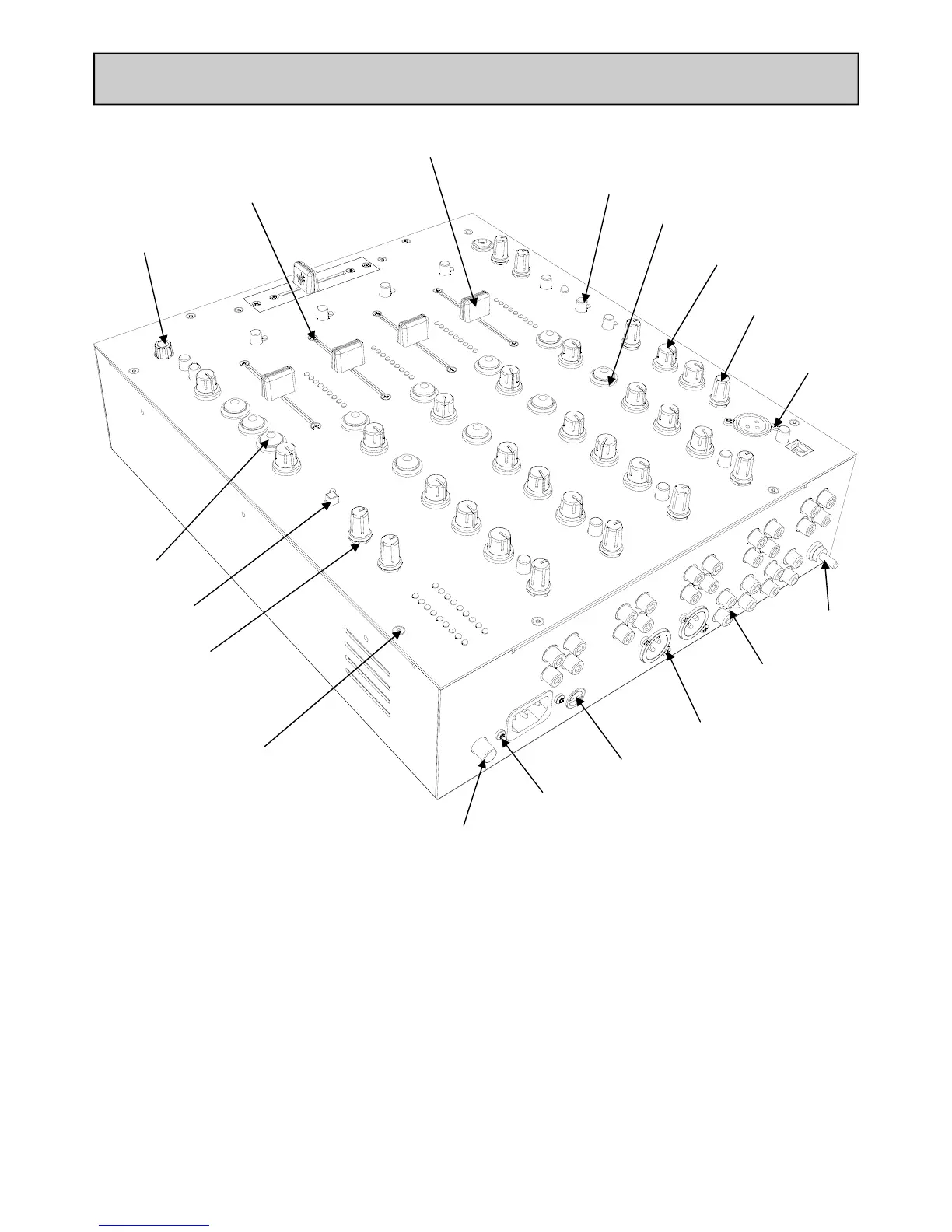

The diagram above shows all of the replacement parts that can be ordered from your local
technical support, or direct from Allen & Heath, for the Xone:42. When ordering please
quote the part number(s) of the required parts - this makes life easier for us!
Note: Key for front panel screws
Screws marked with ‘*’ on the above diagram are the M3x8 stainless steel countersunk type,
which require a T10 ‘Torx’ screwdriver. Screws marked with ‘+’ are the shorter M3x5
stainless steel countersunk fader screws, which require a medium size cross-point screwdriver.
See the previous page for information on replacing the crossfader, and for replacement cross-
fader assembly numbers.
*
*
*
*
*
*
*
*
*
*
+
+
+
+
+
+
+
+
+
+
+
+
