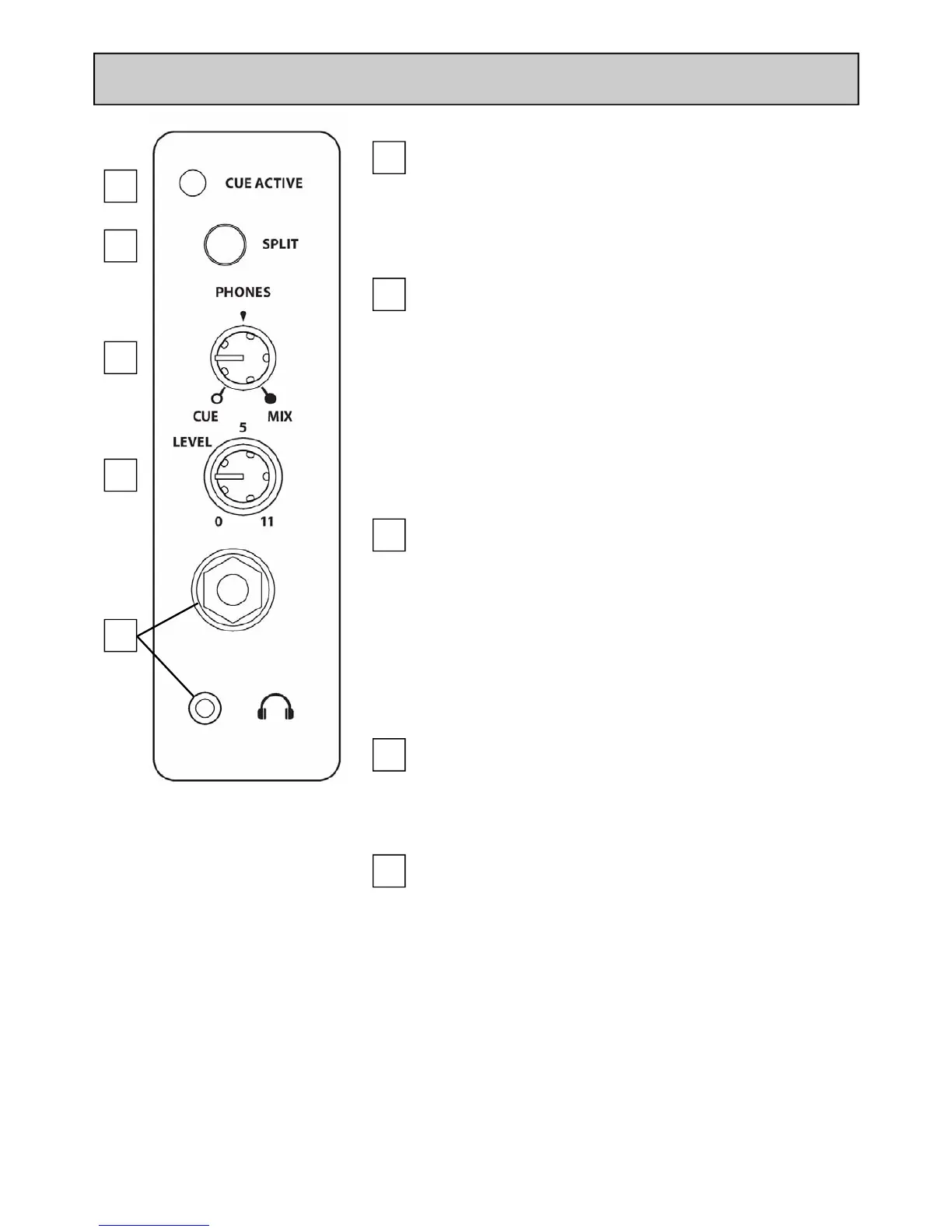

HEADPHONE SECTION
1
2
3
4
1
Cue Active LED
This LED lights to indicate that one of more of the input
and / or mic channels is being monitored in the head-
phones.
5
Headphone Outputs
Stereo 1/4” TRS jack and 3.5mm mini-jack. Plug in good
quality stereo headphones intended for DJ monitoring.
Use closed-ear headphones that provide maximum
acoustic isolation when cueing your sources. We rec-
ommend that you use high quality headphones rated be-
tween 30 to 100 ohms impedance. 8 ohm headphones
are not recommended.
2
Split Cue Switch
Press this switch to change the way Cue operates. Nor-
mally, pressing a channel Cue switch overrides both left
and right monitor program signals with the stereo cue
signal. With the switch pressed, Cue overrides just the
left channel leaving the program in the right channel.
The left monitor meter displays the cue signal, right dis-
plays program. This is very useful when beat mixing us-
ing headphones.
3
Cue / Mix Control
Allows the main mix output to be added to the Cue sig-
nal. Turned fully anticlockwise, only the active Cue is
heard through the headphones when Cue is active.
Gradually turning clockwise introduces the main mix
output to the headphones, together with the active Cue.
Selecting Split Cue will automatically override this con-
trol.
4
Headphones Level Control
Adjusts the level of the signal in the stereo headphones.
This does not affect the level of the local booth monitor.
5
