CTi-1500 Surface Getting Started Guide
6
AP12150 Issue 1

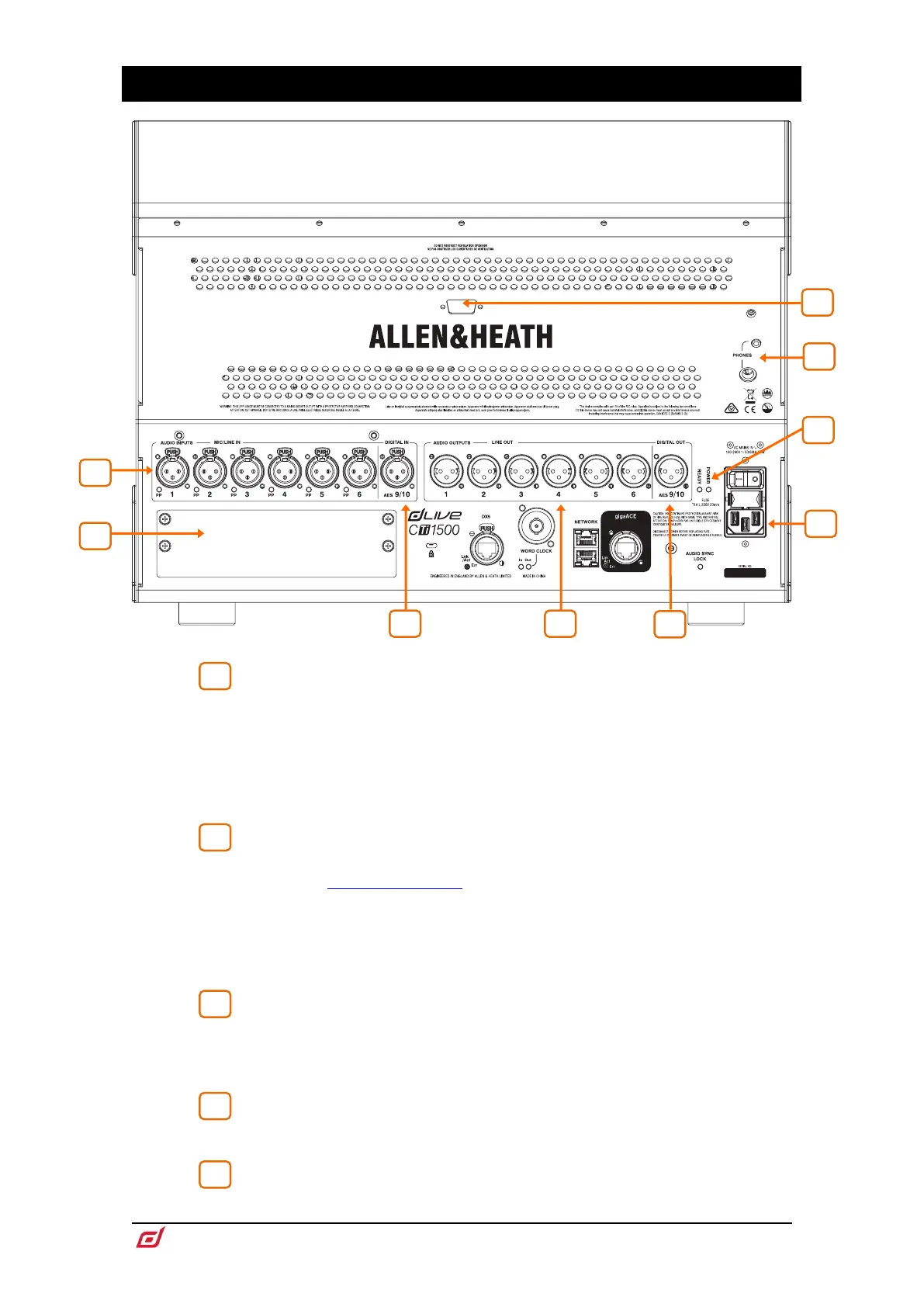

2. Rear Panel
Mic/Line inputs 6x recallable preamps for balanced or unbalanced
microphone and line level signals. Gain, Pad and 48V are digitally controlled within
the preamp.
The PP indicator lights up when phantom power voltage is detected at the socket,
whether internally or externally sourced.
Any socket can be patched to any Input Channel using the I/O or Processing /
Preamp screen.
I/O Port Audio interface port, 128x128 channels. Fit one of the option cards
available for system expansion, digital mic splitting, recording or distributed audio
networking. Refer to www.allen-heath.com for a list of available option cards.
iLive / GLD option cards (M-Dante, M-Waves, M-ES-V2, M-ACE, M-MADI) can be
used with dLive when fitted with the M-DL-ADAPT ‘letter-box’ adapter. This
provides a 64x64 48kHz interface with built-in Sample Rate Conversion.
Use the I/O screen to patch signals from or to the I/O Ports.
Digital inputs Stereo AES3 input (32kHz 96kHz sampling rate). Sample
Rate Conversion can be bypassed.
Any socket can be patched to any Input Channel using the I/O or Processing /
Preamp screen.
Line outputs 6x line level, balanced XLR outputs. Nominal level +4dBu.
Signals can be patched to any output socket using the I/O screen.
Digital outputs Stereo AES3 output (48kHz or 96kHz switchable).
Signals can be patched to any output socket using the I/O screen.
1
2
3
4
5
9
5
8
7

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ALLEN & HEATH dLive CTi1500 and is the answer not in the manual?

ALLEN & HEATH dLive CTi1500 Specifications

Inputs System IconInputs System
dynamic range110 dB
input sensitivity-60 to +15 dBu
system signal to noise-92 dB
Power IconPower
mains power100-240V AC
frequency50-60 Hz
power consumption110 W max
Operating Environment IconOperating Environment
operating temperature range0 deg C to 35 deg C
operating temperature range (Fahrenheit)32 deg F to 95 deg F
maximum output level+22 dBu
Weight and Dimensions IconWeight and Dimensions
unboxed dimensions440 x 644 x 337 mm
unboxed weight11.5 kg
boxed dimensions655 x 820 x 470 mm
boxed weight20 kg
