ALLEN & HEATH dLive CTi1500 User Manual

CTi-1500 Surface Getting Started Guide
8
AP12150 Issue 1

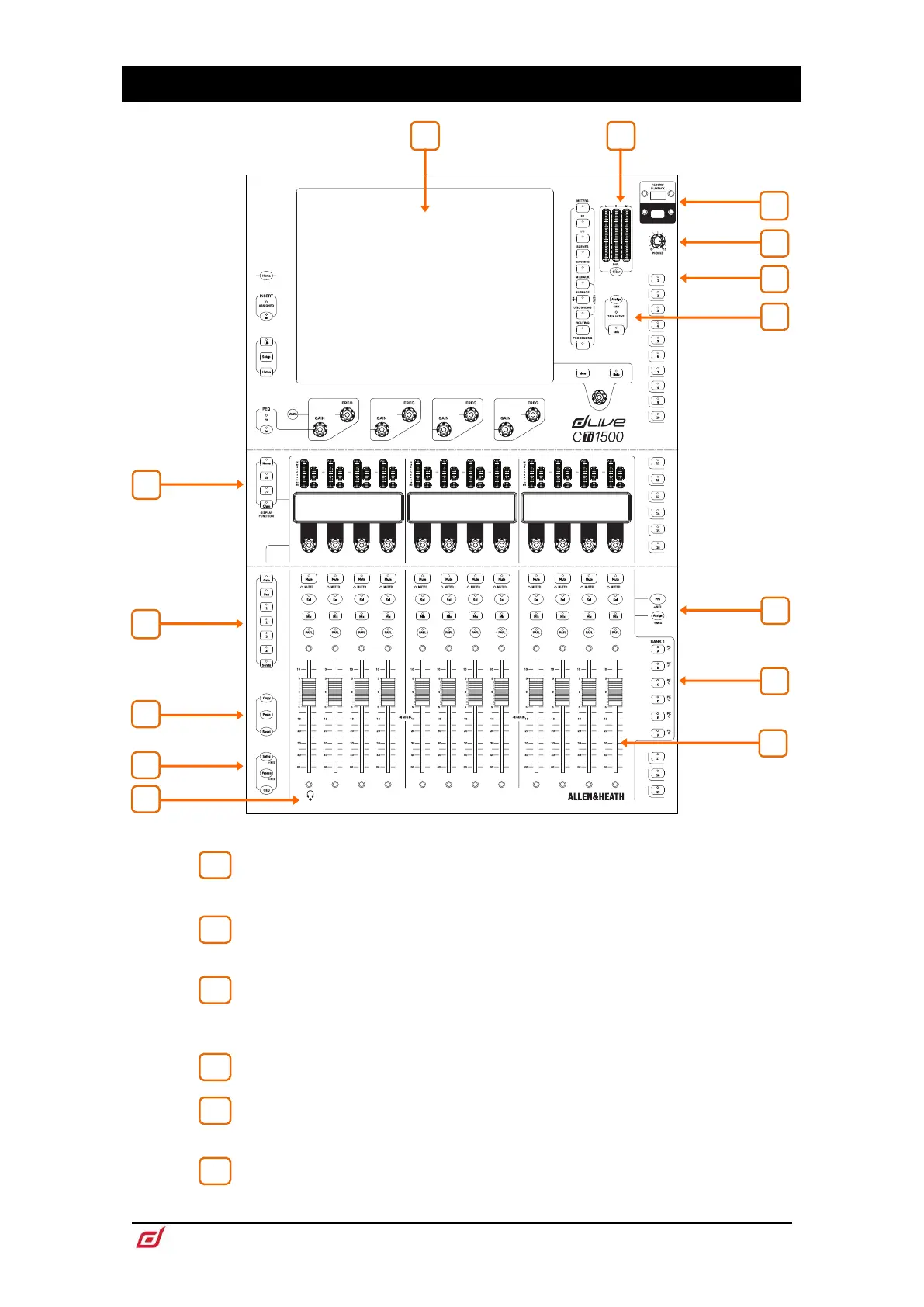

3. Front Panel
Touchscreen – Single 12” capacitive touchscreen with gesture control and
daylight visibility. Read the Harmony UI paragraph below for further information.
Main / PAFL meters – LCR meters with PAFL active indicator. Press PAFL
Clear to cancel any active PAFL.
USB ports – The upper port is dedicated to stereo WAV file recording and
playback. The lower port is for data transfer of Show files, Libraries, event logs and
firmware updates.
Phones – Analogue volume control for the headphones output.
SoftKeys – 19 user assignable keys. Assign functions using the Surface /
Control / SoftKeys screen.
Talkback – Press to Talk latching or momentary key and Talk Active
indicator. Hold down Assign and press any master Mix key to assign.
1
2
3
4
5
6
3
4
1
2
6
8
13
5
11
12
14
7
9
10

ALLEN & HEATH dLive CTi1500 Specifications

Inputs System

dynamic range	110 dB
input sensitivity	-60 to +15 dBu
system signal to noise	-92 dB

Power

mains power	100-240V AC
frequency	50-60 Hz
power consumption	110 W max

Operating Environment

operating temperature range	0 deg C to 35 deg C
operating temperature range (Fahrenheit)	32 deg F to 95 deg F
maximum output level	+22 dBu

Weight and Dimensions

unboxed dimensions	440 x 644 x 337 mm
unboxed weight	11.5 kg
boxed dimensions	655 x 820 x 470 mm
boxed weight	20 kg
