5. Attach the adjustable fastener ‘B’ to the inside of the front extrusion of the console and catchplate ‘A’ to the
inside of the expander using screws
‘F’ and nuts ‘G’. The mounting holes are located under the front
armrest of each unit and are pre-drilled for the adjustable fastener and catchplate. Make sure the movement
of the fastener lever does not interfere with the input channel circuit board assemblies.
6. Screw the 2 slotted studs ‘J’ into the upper and lower rear extrusions of the console. Rotate the studs until
the flat is visible in the slots.
Console with integral meterbridge
6a. Screw the single slotted stud ‘J’ into the lower rear extrusion of the console. Rotate the stud until the flat is
visible in the slot.

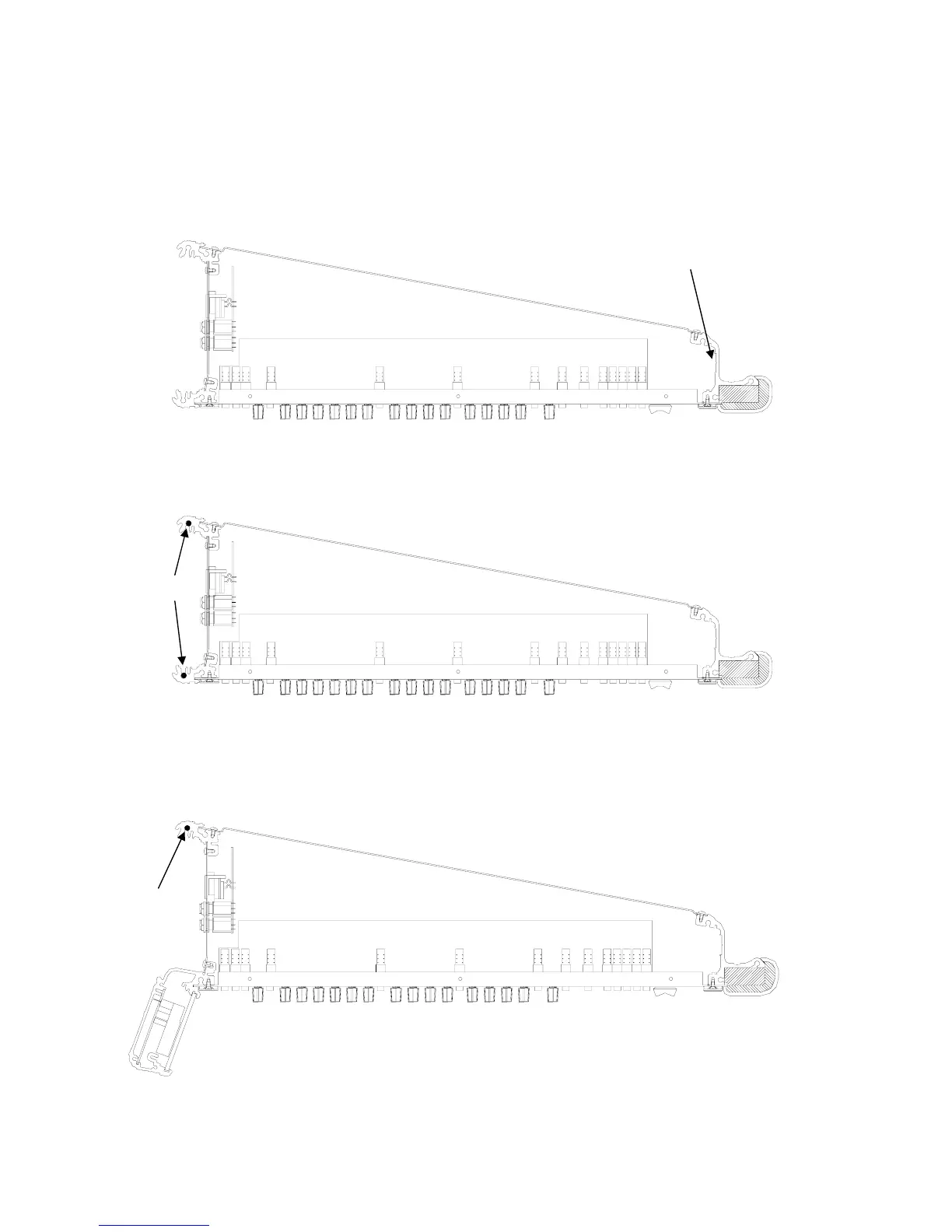

Attach adjustable fastener ‘B’
