CONFIGURATION
The icon provides 6 mono and 2 dual stereo channels. The 6 mono channels accept either a
microphone or a line level signal. The microphone inputs are balanced XLR with globally
switched +48V phantom powering. The line inputs are balanced 3-pole TRS (Tip Ring Sleeve)
phone jack and can accept balanced or unbalanced signals. The 2 stereo channels include an
XLR mic input so that the icon can be used as an 8 input microphone mixer if required. Each
has two stereo line inputs which combine to allow two sources to use the same channel
simultaneously, for example a keyboard and additional voice module, or a stereo guitar
processor and a CD player. One input is on a pair of TRS phone jacks, the other on RCA
phono pin jacks. The stereo signal can be switched for mono operation. A further two
dedicated stereo channels are included for the built-in effects processors FX1 and FX2. This
allows up to 14 inputs to be connected to the 8 channels of the icon with control of 18 signals
in the mix.
The icon provides four output mixes: the main LR stereo mix, FB foldback monitor mix and
the AUX output which can be configured pre or post channel fader. These mixes are available
on TRS jack outputs and can also be configured as required to the two amplifier outputs A and
B. The LR mix is summed to an additional mono output jack. The DP1000 has a built in dual
power amplifier with outputs on Speakon
®
connectors. The DL1000 has two balanced XLR
outputs to feed external amplifiers. The AB outputs can be configured as :
• A=L B=R Stereo mode = PA with separate left and right outputs
• A=FB B=M Split mode = mono PA and single foldback monitor
• A=Aux B=FB Monitor mode = external PA and 2 foldback monitors

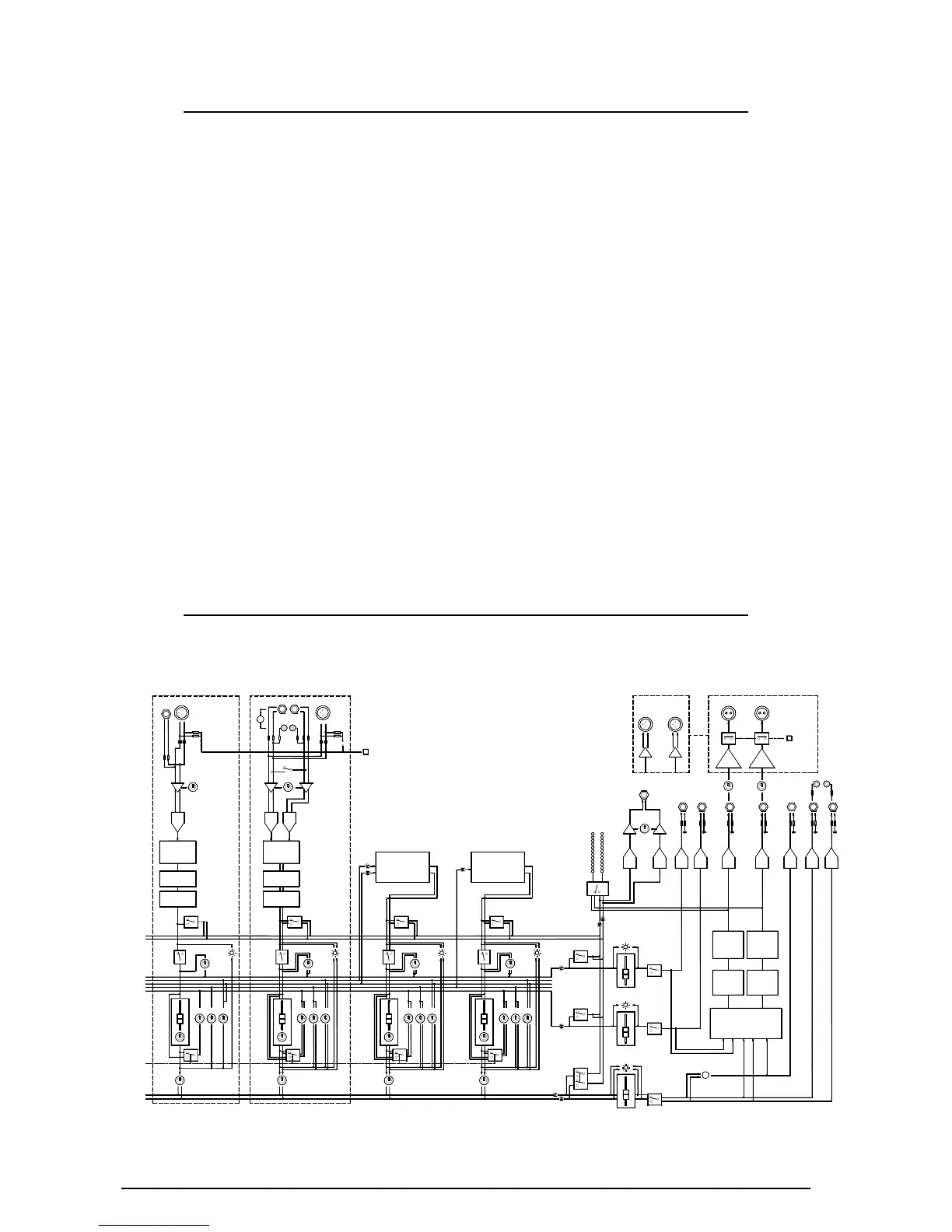

BLOCK DIAGRAM
AUX FX2 FX1
FADER
TRIM
PAN
PRE
FB
PEAK
MUTE
PFL
MIC
LINE
GAIN
ADC
MIC
LINE 1
LINE 2
L
R
GAIN
MONO
ADC ADC
4 BAND EQ
NOISE GATE
COMPRESSOR
4 BAND EQ
NOISE GATE
COMPRESSOR
MUTE
PEAK
FB
PFL
AUX FX2 FX1
FADER
TRIM
PRE
BAL
TRIM
BAL
PRE
FADER
FX1AUX FX2
MUTE
PEAK
FB
PFL
INSERTION EFFECTS
L
R
PFL
L
R
FB
L
R
FX2
AUX
FX1
L
R
TRIM
BAL
PRE
FADER
FX2AUX FX1
MUTE
FB
PEAK
PFL
REVERB EFFECTS
GLOBAL
PRE/POST
PEAK
PFL
PFL
MUTE
MUTE
PFL
PEAK
PEAK
MUTE
LR SUM
+
FB
SOURCE SELECT
10 BAND
GRAPHIC EQ
PROTECTION
LIMITER
A
AUX L R MONO
GRAPHIC EQ
10 BAND
PROTECTION
B
LIMITER
AB
FB
AUX
LR
PFL
A
METERS
B
MIC 48V ON
CH 1-6
MONO STEREO
CH 7-8
FX1 FX2
MIX
+
DAC DAC DAC DAC DAC DAC DAC DAC DAC
HEADPHONES
FB AUX A B MONO L R
LR
HI
LO
SLAVE
STANDBY
A
A
AMPLIFIER
LEVEL
SPEAKER B
LEVEL
BLINE OUT
-+ -+
DL1000 DP1000
LEVEL
icon SERIES 1 - 3
