SOFT STRIP
4kHz31Hz 63Hz 125Hz 250Hz 500Hz 1kHz 2kHz
EDIT
GRAPHIC
8kHz 16kHz
HOME
EQ 1-8
OUT

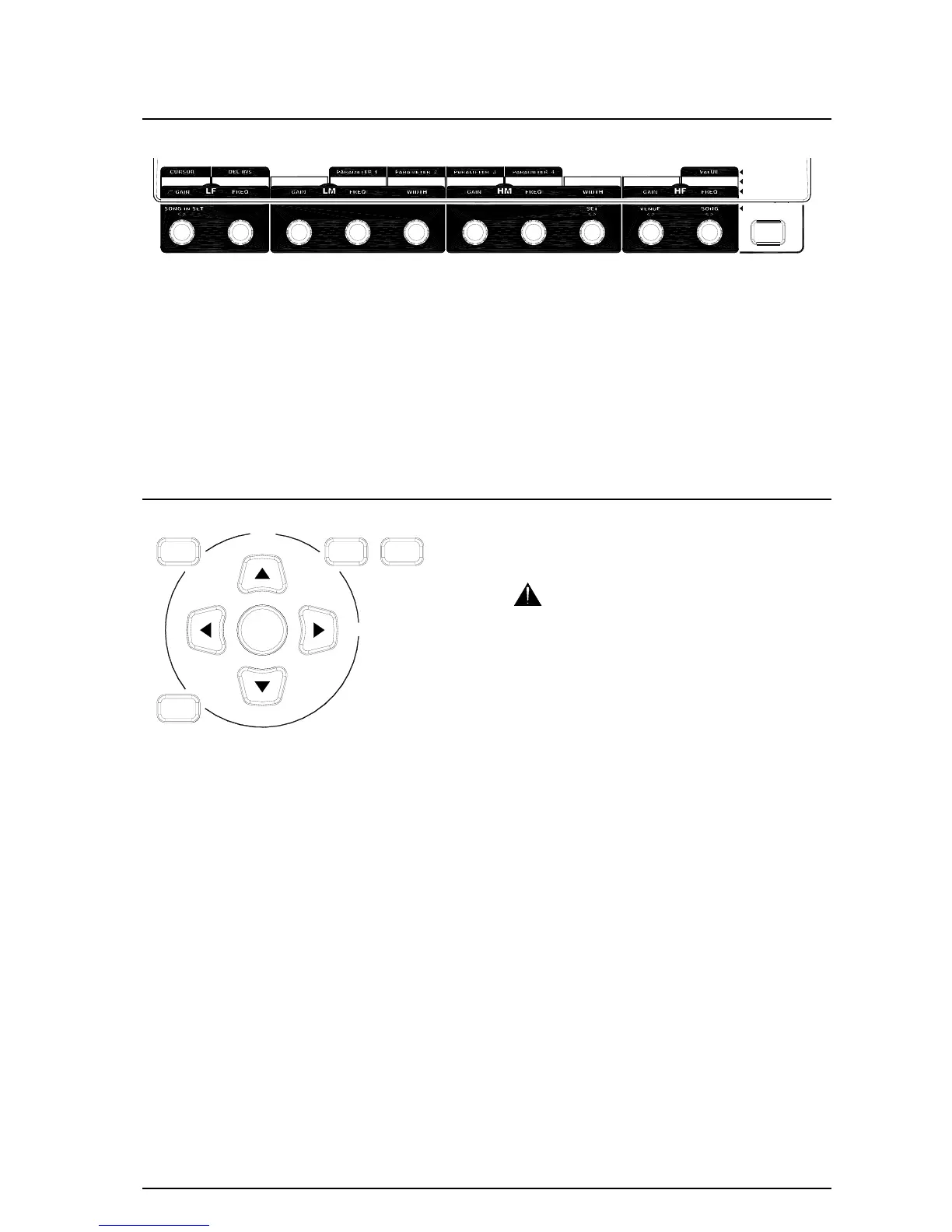

The row of 10 rotary controls together with the OUT
key is known as the ‘soft strip’. This is because the
function of these controls changes depending on the
select key pressed. This means that only one set of
controls is needed so simplifying the layout and
preventing clutter. The functions are identified from
the labels printed above or the number keys below.
The OUT key is used to switch the selected EQ in or
out of circuit.
The soft controls do not have any markers or end
stops. The settings are read from the large LCD
display above. This provides a visual picture of the
settings as well as a readout of the values associated
with each control. The settings can be stored in
memory for recall during setup or performance. The
controls continue to operate from the values recalled.
CURSOR KEYS
keys scroll up or down through the available
menu options for the selected screen. Note that
repeated pressing of the round select keys has the
same effect. In the HOME screen these keys scroll
through the song memories in incremental order.
keys scroll through the available values for the
menu item selected. In the HOME screen these keys
scroll through the song memories in the programmed
order of the selected SET.
ENTER and UNDO keys have the following functions:
The keys illuminate red and flash when confirmation
is required for the selected function. This gives you
the chance to reconsider your action when major
changes are about to occur, for example rewriting the
console settings with the contents of a memory, or
storing the current settings to a memory. Press
ENTER to confirm or UNDO to escape.
ENTER remains lit without flashing during store if the
current and memory contents are the same.
Important data can be overwritten in error
if care is not taken to check your action before
pressing one of the flashing keys.
ENTER
COPY
PASTE
MENU
VALUE
UNDO
ESC
RESET
☺ Tip Use the memory LOCK function to prevent
selected memories being overwritten. Use the
channel SAFE function to prevent recalled memories
overwriting selected channel settings. These are
described later.
In many screens pressing UNDO will restore the
screen settings with the contents of the undo buffer.
This buffer holds the last settings before the screen
was selected, or the settings current when the ENTER
key is pressed. For example, the current EQ settings
can be reverted to a previous setting stored to the
buffer. The UNDO key lights when its function is
available.
RESET key instantly resets the selected screen
settings to the factory default. For example, you can
reset an EQ flat, restore default effects parameters, or
reset all foldback levels off to start again.
COPY and PASTE keys let you quickly copy settings
between channels and memories. For example, an
EQ can be copied to several other channels or to its
own channel in other song memories. The copy
buffer holds one type of settings at any time. The
PASTE key illuminates when valid copy data is
available. The copy buffer is cleared when the
console is switched off.
3 - 4 icon SERIES
