ALLEN & HEATH iDR Series User Manual

ALLEN&HEATH iDR training JAN08 Page - 17 - of 49

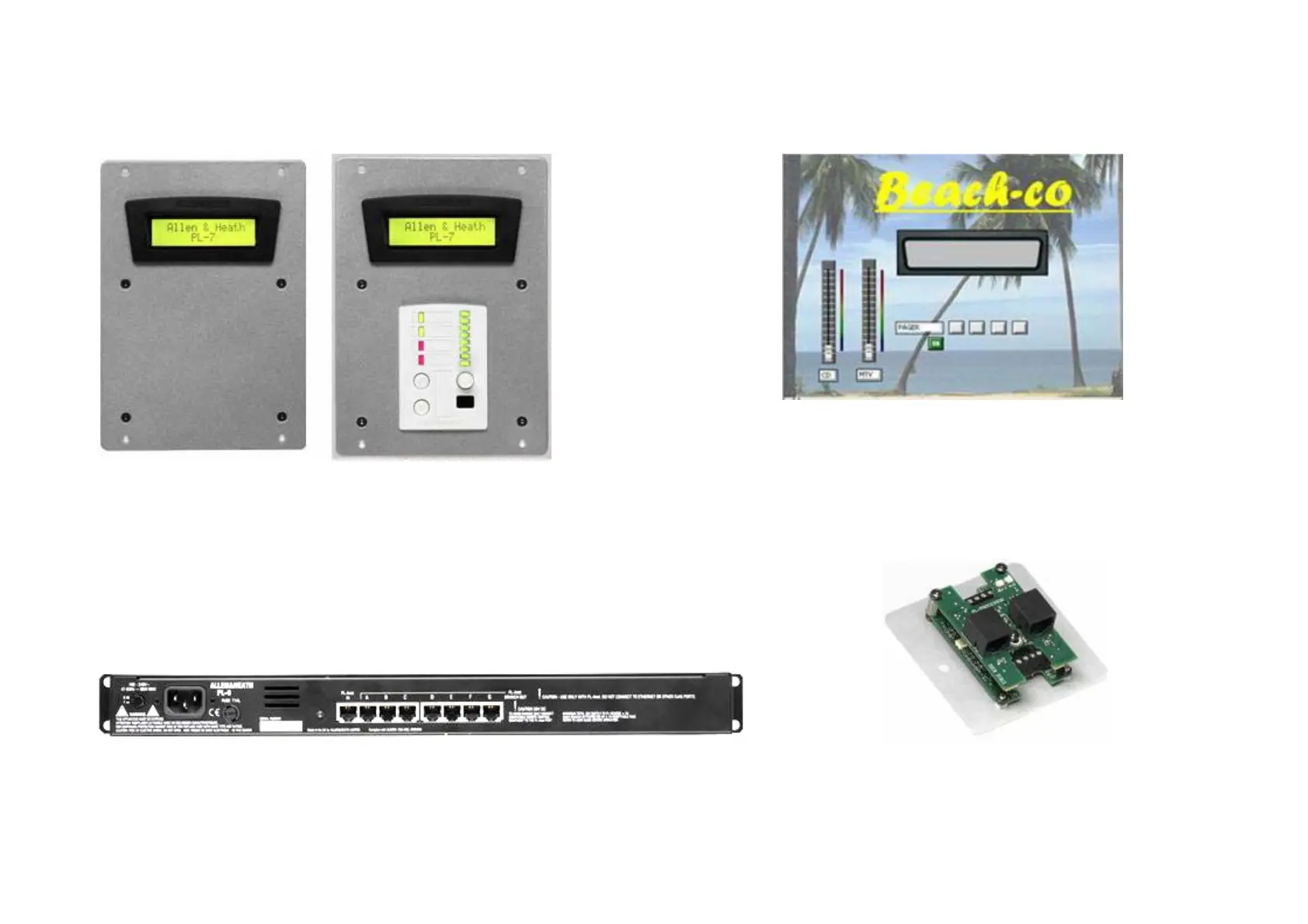

PL-7 on left.
PL-7 on right shown
with PL-4 fitted
PL-8
4x switch
4x DC o/p
PL-9 7 way hub
Custom GUI for user PC

ALLEN & HEATH iDR Series Specifications

General

EQ Bands	4-band parametric EQ per channel
Word Length	24-bit
Dynamic Range	>110dB
THD+N	<0.005%
Control	Ethernet
Connectivity	Ethernet
Audio Processing	96kHz
Mounting	Rackmount
Faders	None (controlled via external surfaces)
Effects	Reverbs, Delays, Modulations
Sampling Rate	96 kHz
