ALLEN & HEATH ME-1 User Manual

User Guide – AP8997 iss.3 14 ALLEN&HEATH

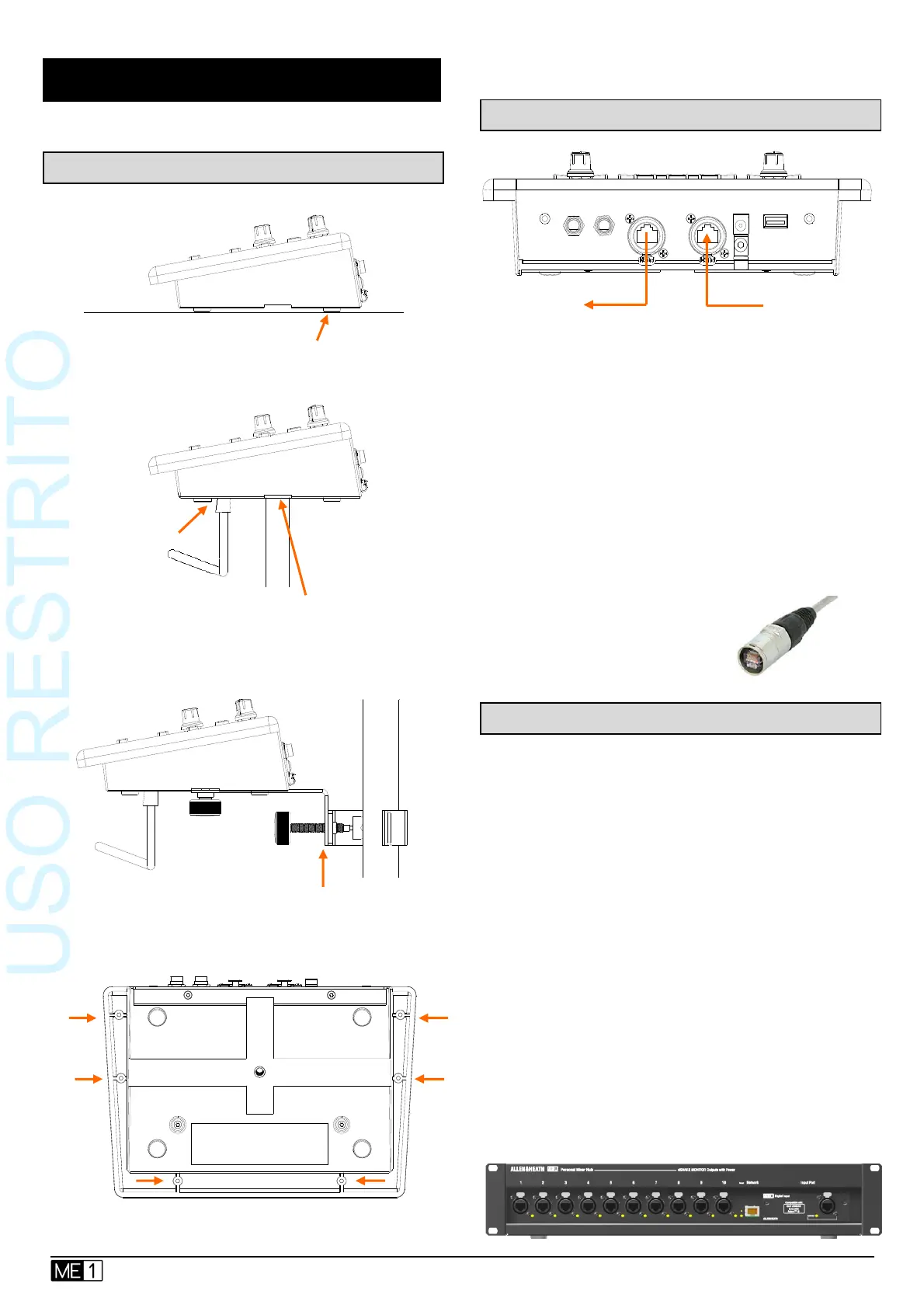

6. Installing ME-1
6.1 Mounting the unit
6.2 Cat5 cable
Use STP (shielded twisted pair) CAT5e or
higher cables. Those with both foil and
braided screens provide shielding from
interference and are generally more rugged.
Stranded core cables are less prone to
damage when kinked or repeatedly coiled.
ME-1 provides locking Neutrik EtherCon
sockets to protect the connections and
ensure suitability for touring. Use cables fitted
with locking EtherCon plugs.
Maximum length per cable
= 100m (330’)
6.3 Ethernet Switch
For parallel connection of multiple ME-1
mixers each with their own cable you can use
a standard off-the-shelf Ethernet switch.
Note Aviom® A-Net 16 is not compatible
with standard Ethernet switches.
An unmanaged 100 Mbit/s (Fast Ethernet) or
Gigabit switch is suitable.
Note The use of a 3-layer PoE switch is not
recommended.
For PoE (Power over Ethernet) either of the
two standards 802.3af (15.4W at source) or
802.at (25.5W at source) is suitable. Check
that the overall power rating is enough to
provide for all ME-1 mixers you wish to
connect (allow 15W per mixer).
The Allen & Heath ME-U hub provides PoE
and connections for up to 10 ME-1 mixers.
From mixer or hub
Surface mount – Non-slip feet
Note Do not place near hot equipment.
Top of stand mount – 3/8” thread
Note Ensure the mic stand is stable.
Push in
headphones
hook
Side of stand mount – Bracket supplied
Microphone stand
Plinth mount – Holes for 6B screws
To next ME-1
(If daisy chained)
Out Link In
USO RESTRITO

ALLEN & HEATH ME-1 Specifications

Audio Output

stereo out power	300+300mW into 100 Ω
mono out max level	+18dBu
aux input max level	+10dBu

Power

mains power unit	100-240V AC 50/60Hz
power over ethernet requirement	10W

Weight and Dimensions

dimensions	225 x 150 x 55mm
weight	900g
