ALLEN & HEATH ME-1 User Manual

User Guide – AP8997 iss.3 9 ALLEN&HEATH

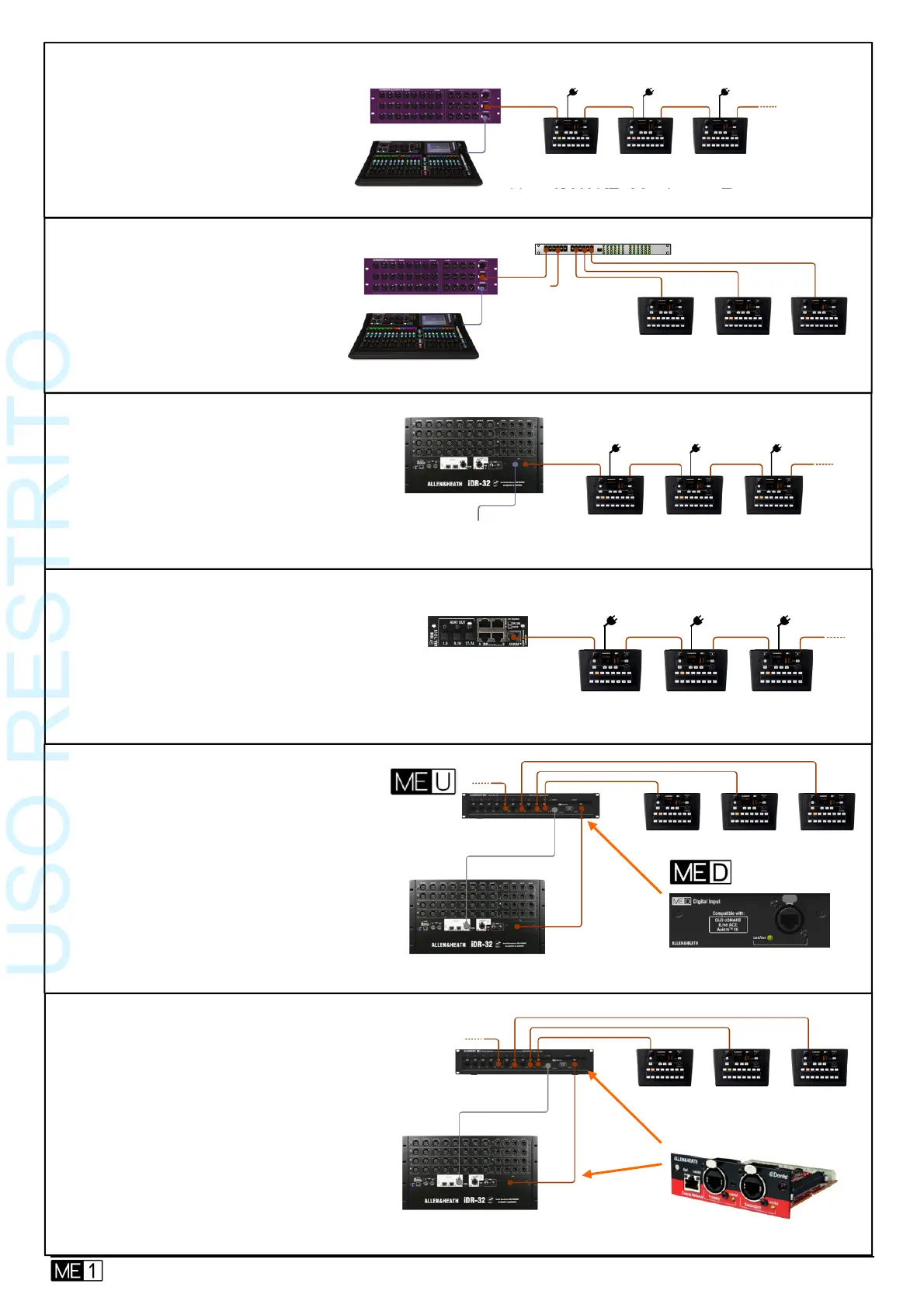

GLD Daisy chain
Channels 40
Stereo links  from GLD
Auto names  from GLD
GLD Parallel connection
Channels 40
Stereo links  from GLD
Auto names  from GLD
Standard switch 
PoE switch 
iLive From Port B ACE
Channels 40
Stereo links  use groups
Auto names  use local names
Standard switch 
PoE switch  Standard or ME-U
iLive MMO (or any Aviom
®
A-Net 16 source)
Channels 16
Stereo links 
Auto names  use local names
Standard switch  use Aviom
®
hub
PoE from hub 
iLive Port B ACE via ME-U
Two cables - Audio and Network
Channels 40
Stereo links
 from iLive or ME-U
Auto names
 from iLive or ME-U
PoE from hub  from ME-U
Use dSNAKE, Monitor or Expander ports
Use dSNAKE, Monitor or Expander ports
iLive Port B out 21-60 = ME channel 1-40
iLive Port B out 21-60 = ME channel 1-40
Power ME-1 with its external PSU if
y
ou use an Aviom
®
hub
Standard PoE switch
External power units
External power units or PoE via switch
External power units
Standard card
PoE hub
A
viom
®
Out
Network link
A
udio
iLive Port B Dante via ME-U
Two cables - Audio and Network
Channels 40
Stereo links  from iLive or ME-U
Auto names  from iLive or ME-U
PoE from hub  from ME-U
Similar applies to using MADI or
EtherSound option cards with iLive.
iLive Port B out 21-60 = ME channel 1-40
Dante option card
A
CE card
Network link
A
udio
USO RESTRITO

ALLEN & HEATH ME-1 Specifications

Audio Output

stereo out power	300+300mW into 100 Ω
mono out max level	+18dBu
aux input max level	+10dBu

Power

mains power unit	100-240V AC 50/60Hz
power over ethernet requirement	10W

Weight and Dimensions

dimensions	225 x 150 x 55mm
weight	900g
