6 XONE:02 Service Manual
Specifications
0dBu = 0.775 Volts rms, +4dBu = 1.23V rms 0dBV = 1 Volt rms, -10dBV = 316mV rms
Max output level XLR +23dBu into >2k load
TRS +21dBu into >2k ohm
RCA +15dBu into >10k ohm
Headroom Channels +21dB
Mix to output +23dB
Freq response +0/-1dB 10Hz to 30kHz
Distortion < 0.04% THD+N @1kHz +10dBu
Crosstalk < 90dB Channel shutoff @1kHz
MIC EIN 22-22kHz -128dB 150 ohm source
Residual noise < -88dBu
Mix noise < -81dBu
Meters Peak reading 12 led
-30 to +9, +15 (PK)
Mic Peak Within 6dB of clipping
Power Supply
Internal switch mode power unit with auto sensing mains input.
MAINS IN socket IEC 3 pin
Power lead Country dependent with moulded mains plug supplied
AC mains 100 to 240V AC @ 50/60Hz
Consumption 30W max
Mains fuse rating 100-240V AC T500mA 20mm

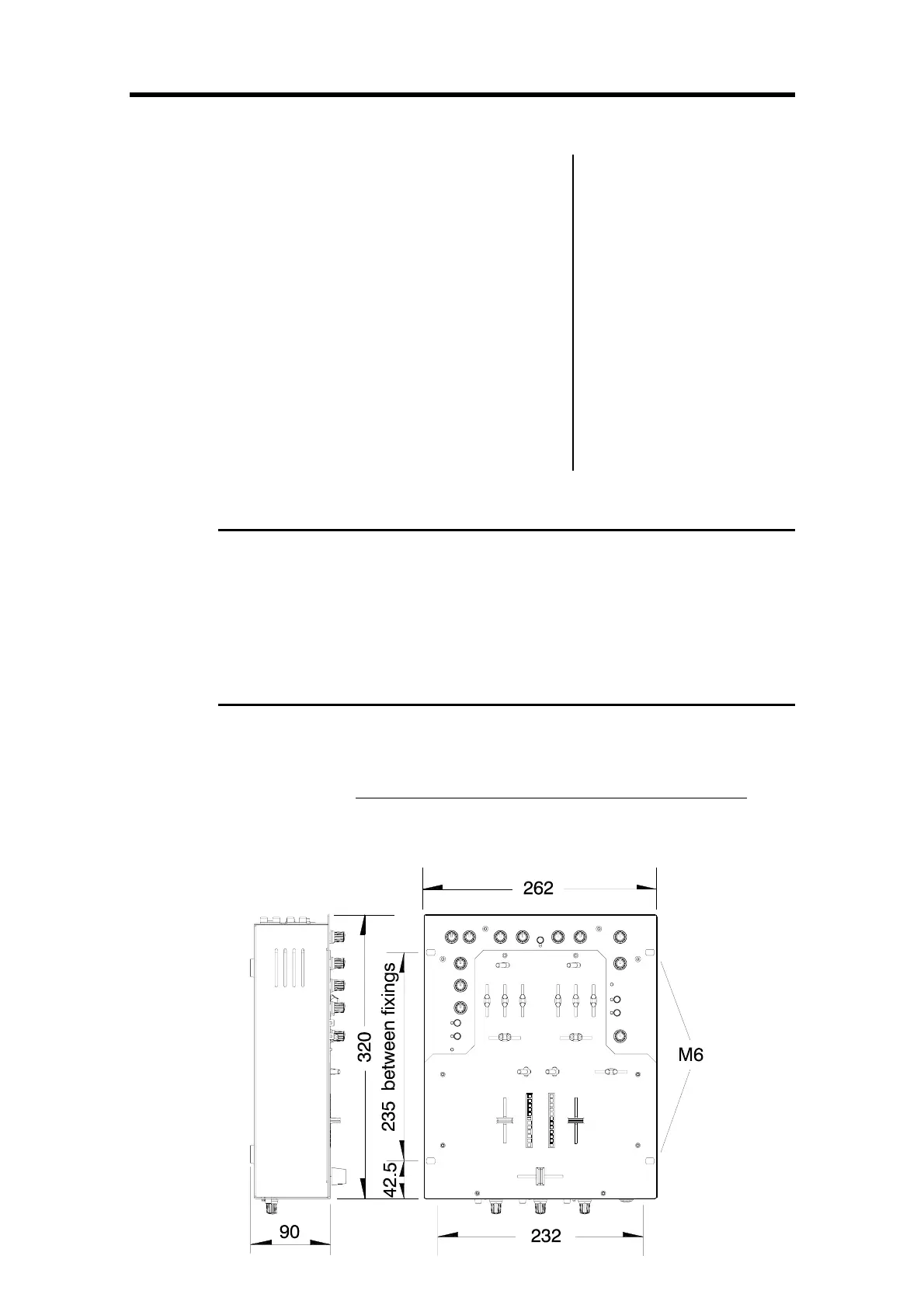

Dimensions and Weights
The console is fitted with rubber feet for desktop operation. It also has integral rack ears so
that it can be fitted into a plinth, rack or other equipment furniture. Note that it is narrower
than the standard 19” equipment rack system. Use M6 screws with plastic protective cups
to mount the console into the furniture.
Width Height Depth Weight
Unpacked 262 mm (10.3”) 90 mm (3.5”) 320 mm (12.6”) 4.5 kg (10 lbs)
Packed 475 mm (18.7”) 210 mm (8.3”) 395 mm (15.6”) 5 kg (12 lbs)
Mix System VCA
Music EQ 3-Band +6/-26dB
100Hz, 1kHz, 10kHz
12dB/oct slope
Mic EQ 3-Band +/-12dB
120Hz, 2.5kHz, 6.5kHz
Channel Faders 45mm stereo VCA
Dual rail, gold contacts
Replaceable
Penny & Giles option
Crossfader 45mm stereo VCA
Dual rail, gold contacts
Replaceable
Penny & Giles or Alpha
Transform Fast action toggle
Rotatable
