Allen & Heath 14 XONE:43C User Guide

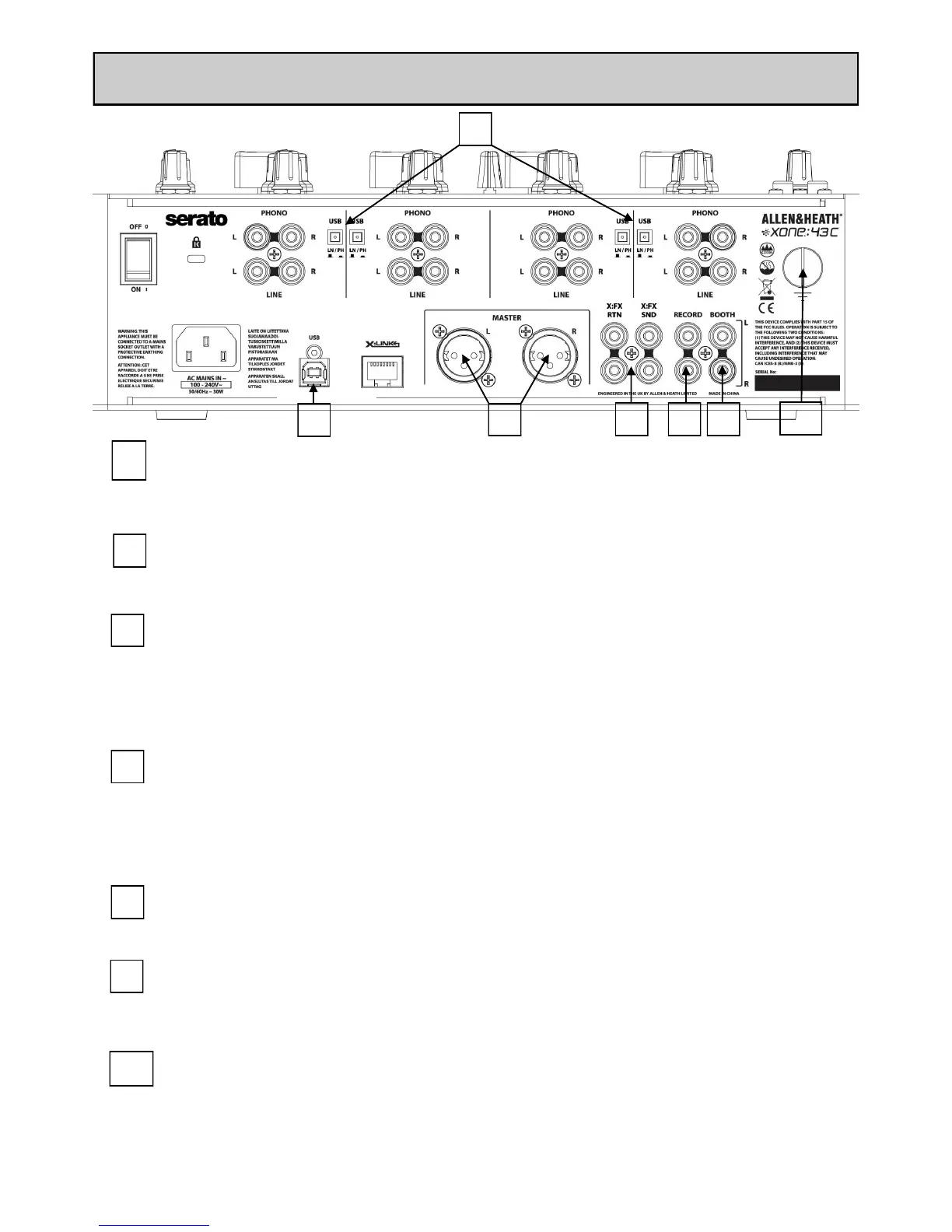

REAR CONNECTORS
7
8
6
Master Output
Balanced XLR. This is the main output that feeds the house PA system. Plug into the house
processor/amplifier system using balanced cables. Use balanced cables and equipment. When
the main meter LEDs are at “0dB” the output will nominally be at +4dBu. Do not unbalance
this output by shorting one phase to ground—for unbalanced operation use pin 2 only.
Record Output
RCA Phono, nominal 0dBu. Pre-level mix output for connection to external recording devices.
Booth Output
RCA phono nominal 0dBu. Provides a line level stereo feed to the DJ local monitor amplifier
system. It is not affected by the master fader or cue system.
X:FX Send/Return
RCA phono. Connect your external effects device and use the X:FX dry / wet control to send
channel signals to the effects unit. The signal returns to the mix bus but can be routed to the
VCF filter by pressing the ‘X:FX’ button on the front panel filter section. This allows the filter
to be ‘stacked’ with an external effects device.
Chassis Earth Terminal
A screw terminal is provided for connecting the earth straps from turntables. This connection
earths the metal parts of the turntable to reduce hum, buzz or similar audible noise getting into
the system.
6
7
8
9
9
10
10
4
USB Line / Phono select switches
Switches for selection between Control vinyl (Phono) or CD (Line) per input channel if using
Serato DJ Club Pack. See Page 19 for more information.
4
USB Soundcard
16 Channel 96kHz 24bit USB Soundcard. See Page 17 for more information.
