Allen & Heath 7 XONE:43C User Guide

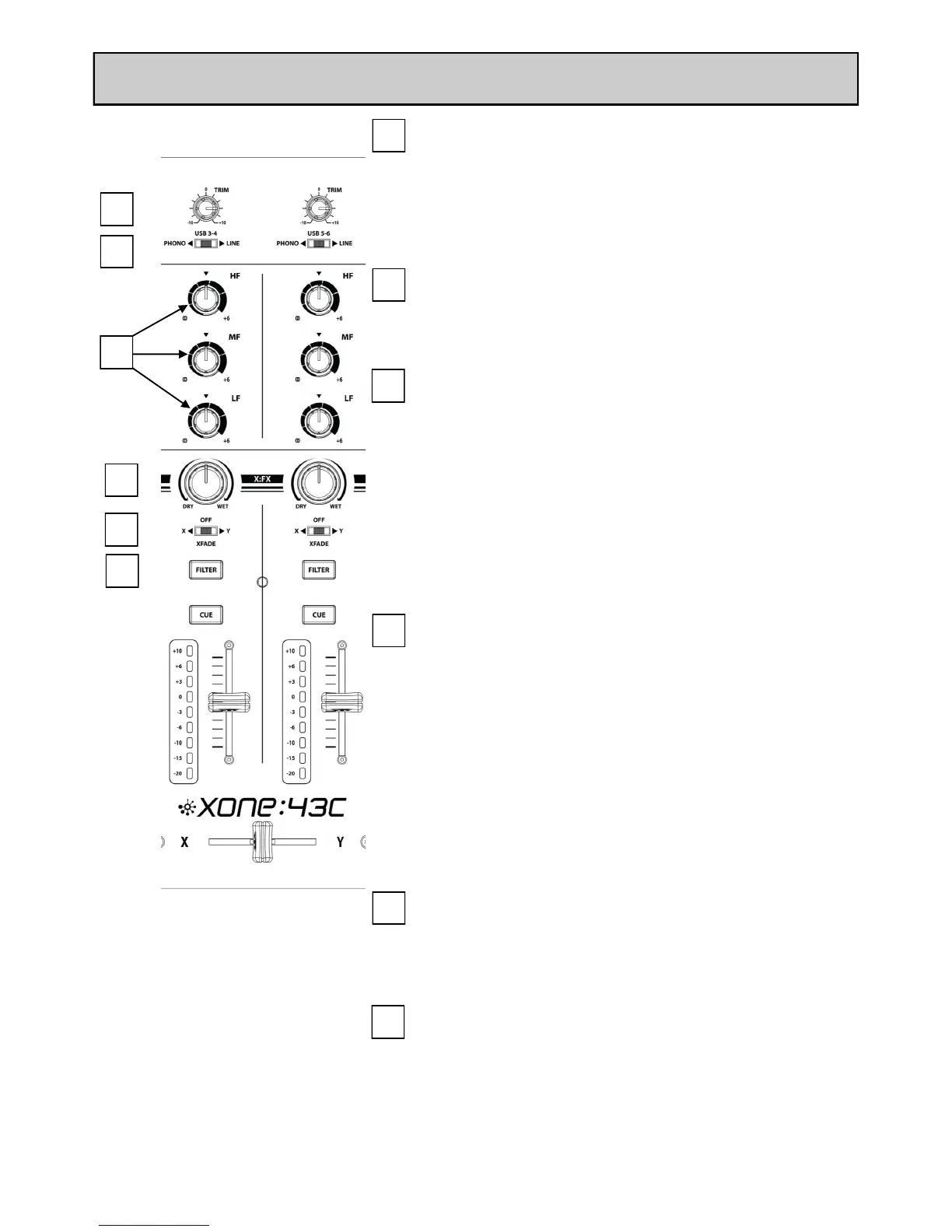

PHONO / USB / LINE INPUT CHANNELS 1 - 4
1
Phono / USB / Line Select Switch
Selects either the RCA phono input, USB Soundcard in-
put or the alternative RCA stereo line input.
2
Channel Level Control
This control has a range from - 10dB to +10dB. Use it to
adjust the signal level of an audio source to give a nomi-
nal 0dB reading on the channel meter, with the peak lev-
el at or below 6dB.
3
Channel Equalizer / Isolator
The Xone:43C is equipped with a very powerful 3 band
EQ providing a controlled +6dB of boost when fully
clockwise, but dramatic cut of each band when fully anti-
clockwise. Centre frequencies are set at:
HF = 3.8kHz (high frequency, treble)
MF = 1kHz (mid frequency)
LF = 310Hz (low frequency, bass)
4
Filter Select
Press to route the channel signal through the VCF filter.
The switch will illuminate to indicate that the channel is
being sent to the filter.
5
X:FX Dry / Wet Send
Use this control to vary the amount of channel signal
that is sent to an external effects device connected to
the X:FX send / return on the rear panel. With this
control set to ‘dry’, none of the signal is routed to the
external effects loop. With the control in the central
position, half of the signal is sent to external effects,
while the other half is unaffected or, if filter is selected,
only the dry part of signal is filtered. With the control
set to fully ‘wet’, all of the signal is sent to external ef-
fects and the VCF filter is bypassed.
XFade Assign Switch
Used to assign the channel to either the X (left), off
(middle) or Y (right) side of the cross-fader.
1
2
3
4
5
6
6
