REPLACING THE CROSSFADER
Step 9:

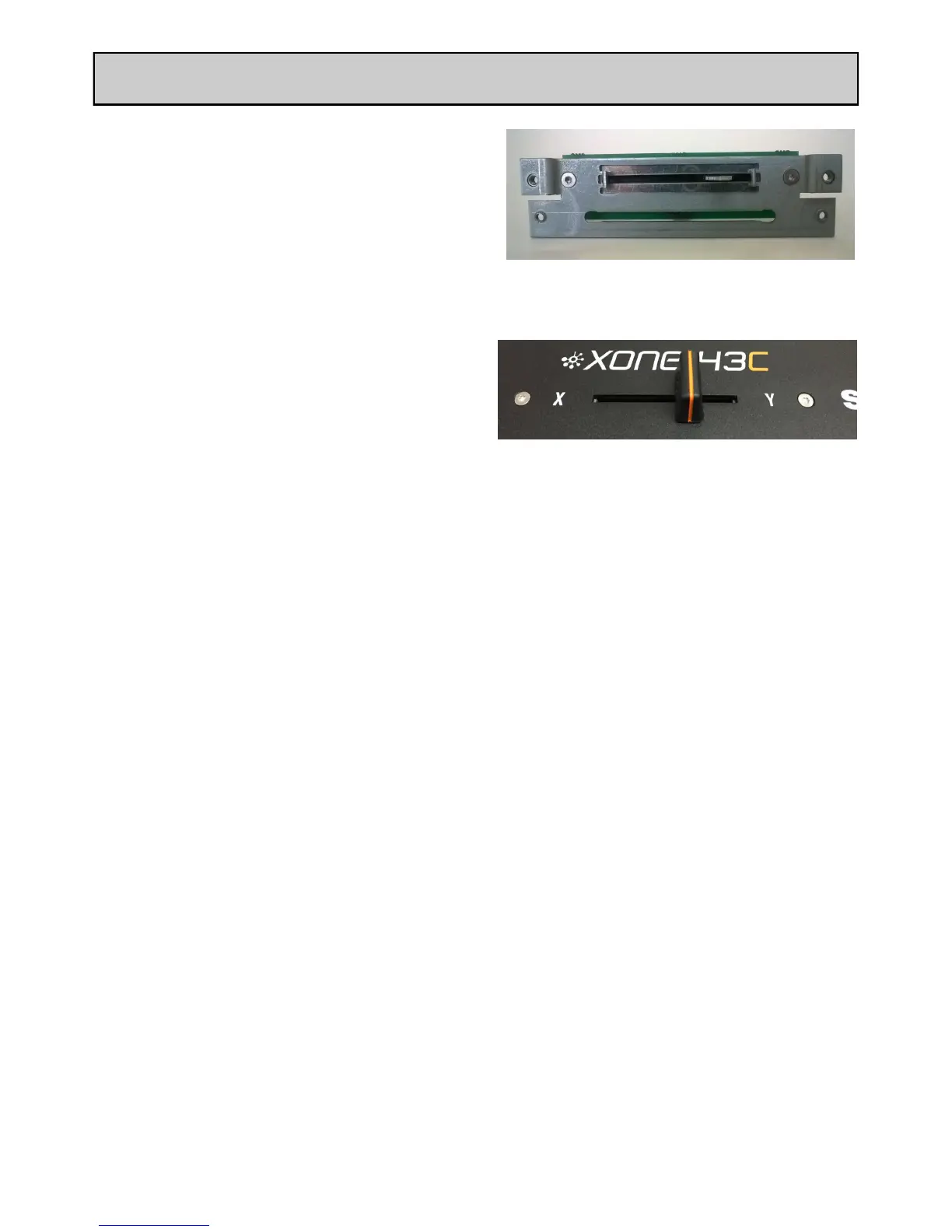

 Fit the new replacement crossfader to the
bracket as shown (slot 1).
 The longer (slot 2) beneath is for mounting
the optional Innofader (not supplied).
The standard crossfader must be fitted to slot
1 and not slot 2.
Step 10:
 Screw the crossfader plate back to the con-
sole.
 Replace the crossfader cap.
 Connect the white harness from the connect-
or PCB.
Step 11:
 Re-assembly of the console is the reverse of
steps 1-5. When re-assembling the console
take great care to refit the wireforms fully
into the socket.
1
2

ALLEN & HEATH XONE:43C Specifications

General

Sample rate	96 kHz
Channels quantity	16 channels
Digital sound processing	24 bit
Line Signal-to-Noise Ratio (SNR)	20 dB
Total Harmonic Distortion (THD)	0.05 %
Microphone in	Yes
Headphone connectivity	3.5 mm
Product color	Black
Video capability	No
Power consumption (typical)	30 W
Equalizer bands quantity	3

Weight and Dimensions

Depth	370 mm
Width	320 mm
Height	110 mm
Weight	5200 g
