ALLEN & HEATH XONE:DB4 User Manual

Allen & Heath 28 XONE:DB4 User Guide
USB SOUNDCARD ROUTING
R
I
A
A
R
I
A
A
PH/LN
ADC
ANA
DIG
PHONES
CHANNEL PFL
CUE
MIX
RECORD
BOOTH
CHANNEL SOURCESMIXER SOURCES
SOFTWARE SWITCH
SEND 1 (IN 1-2) SEND 2 (IN 3-4)
SEND 3 (IN 5-6)
SEND 4 (IN 7-8)
SOUNDCARD INPUTS
The XONE:DB4 provides eight (four stereo) soundcard inputs that will appear in your chosen DAW
application. The inputs are arranged as follows:

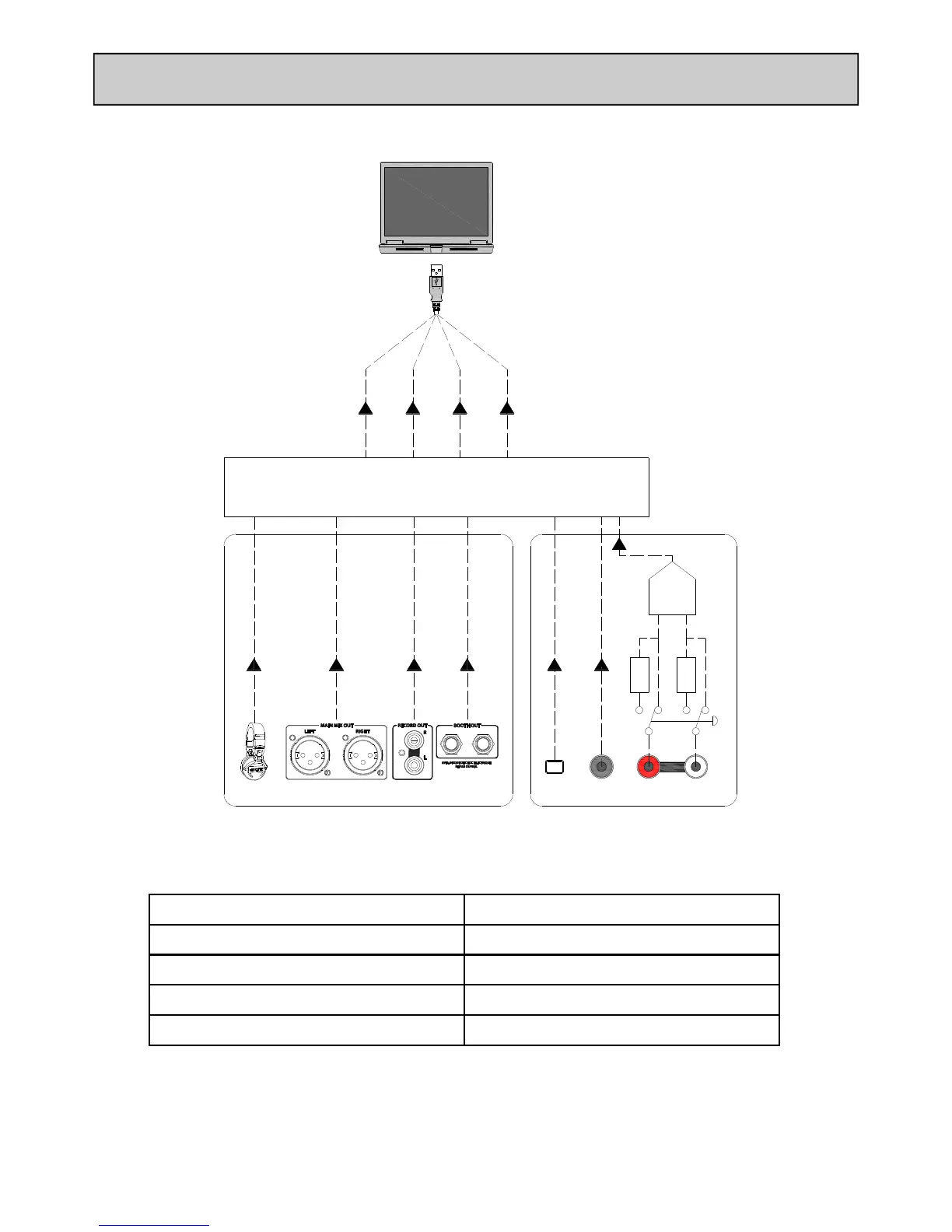

The block diagram above shows the different sources that can be mapped to each of the stereo
soundcard inputs (or Sends). The sources are split into two groups, MIXER and CHANNEL.
DAW XONE:DB4
SOUNDCARD INPUT 1-2 SEND 1
SOUNDCARD INPUT 3-4 SEND 2
SOUNDCARD INPUT 5-6 SEND 3
SOUNDCARD INPUT 7-8 SEND 4

ALLEN & HEATH XONE:DB4 Specifications

General

Frequency range	22 - 22000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Number of EQ bands per channel	4
Line Signal-to-Noise Ratio (SNR)	104 dB
XLR out	2
Microphone in	Yes
Line inputs (RCA)	8
Headphone connectivity	3.5 mm/6.35 mm
USB 2.0 ports quantity	1
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	320 mm
Height	88 mm
Weight	5100 g
Package depth	260 mm
Package width	530 mm
Package height	470 mm
Package weight	8600 g
