ALLEN & HEATH XONE:DB4 User Manual

Allen & Heath 40 XONE:DB4 User Guide

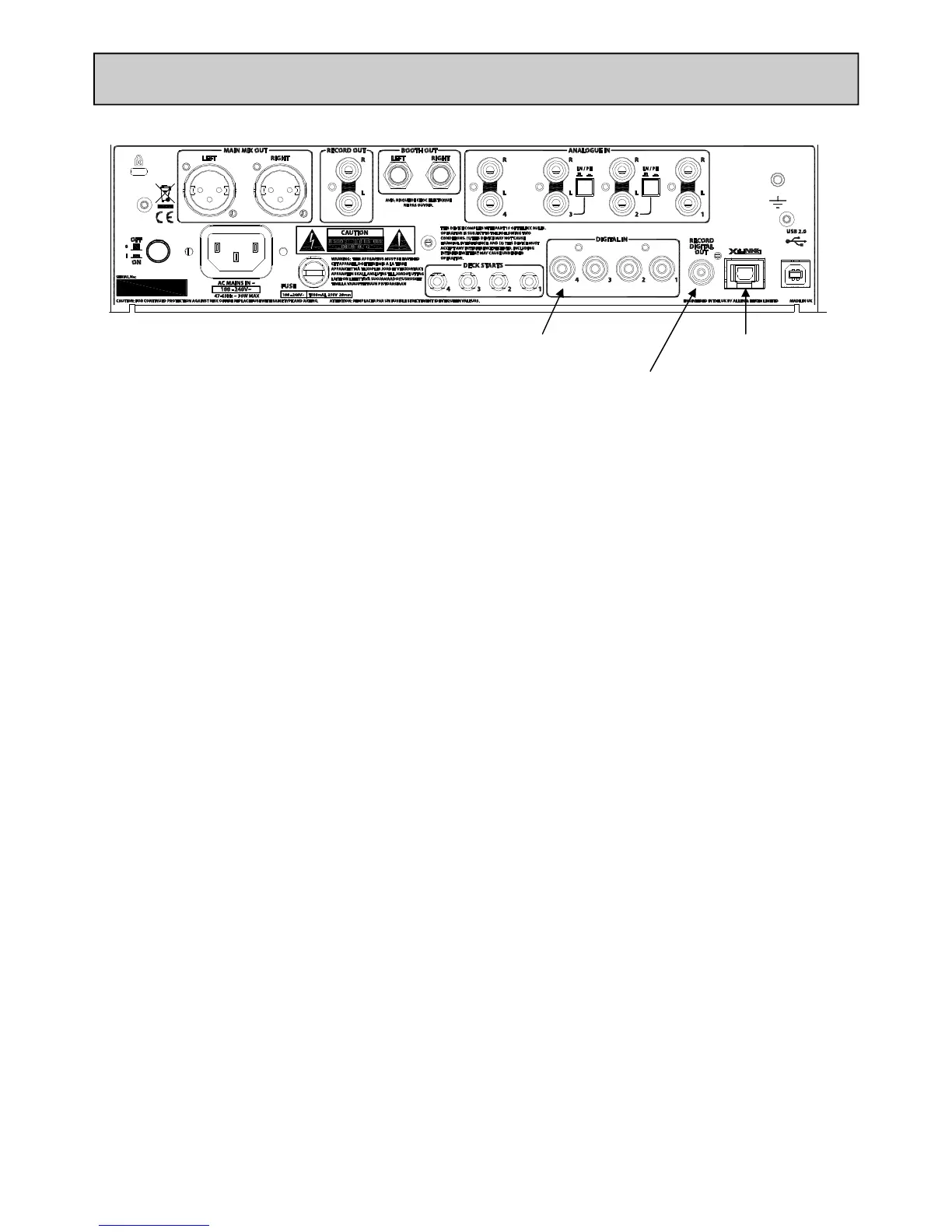

DIGITAL IO - X-LINK
DIGITAL INPUTS - DIGITAL OUTPUT
DIGITAL INPUTS 1– 4
DIGITAL INPUT: The XONE:DB4 has four digital inputs on the rear panel designed for standard 75
Ohm RCA interface cables. These inputs are compatible with the following formats:
AES3, IEC60958, S/PDIF (Sony/Phillips Digital Interconnect Format), EIAJ CP1201, all from 32kHz to
192kHz, and up to 24bits.
Digital Output: The digital output is fixed at 48kHz/24 bit, non copy protected, with a 75 Ohm imped-
ance.
The digital output source, and signal level is set in the Menu under “Record Setup”, see page 24 for
details.
DIGITAL OUTPUT
X-LINK
X-LINK
X-Link is a proprietary interface protocol to enable future Allen & Heath accessories and controllers to
be easily connected to the XONE:DB4. Visit www.XONE.co.uk for the latest news on X-Link enabled
products.
QUAD FX Core DSP engine: 4 simultaneous FX engines with independent BPM calculation. 4 stereo
Loopers with BPM conscious looping, 4 bars at 60BPM maximum sample time.
Analogue/Digital conversion 24 bit
Analogue/Digital Line-up +12dBu = 0dBFS
DSP processing 24 bit I/O + 48 bit EQ
DSP Mix Bus 56 bit Fixed Point
DSP core sampling frequency 48kHz
USB soundcard sampling frequency range 44.1kHz to 96kHz
SPDIF input sampling frequency range 32kHz to 192kHz
SPDIF Output sampling frequency 48kHz
DIGITAL ARCHITECTURE SPECIFICATION

ALLEN & HEATH XONE:DB4 Specifications

General

Frequency range	22 - 22000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Number of EQ bands per channel	4
Line Signal-to-Noise Ratio (SNR)	104 dB
XLR out	2
Microphone in	Yes
Line inputs (RCA)	8
Headphone connectivity	3.5 mm/6.35 mm
USB 2.0 ports quantity	1
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	320 mm
Height	88 mm
Weight	5100 g
Package depth	260 mm
Package width	530 mm
Package height	470 mm
Package weight	8600 g
