Allen & Heath 15 XONE:DB4 User Guide
THE INPUT MATRIX
Each music channel on the XONE:DB4 features an input matrix system, making it possible to select from
any of the twelve available sources no matter which input socket they are physically connected to.
Each channel can accept inputs in three formats:
ANALOGUE Channel 1 - Line or Microphone (Microphone selected on front panel)
Channel 2 - Line or Phono (Selector switch on rear panel)
Channel 3 - Line or Phono (Selector switch on rear panel)
Channel 4 - Line only
USB Channel 1 - ASIO Soundcard Output 1-2
Channel 2 - ASIO Soundcard Output 3-4
Channel 3 - ASIO Soundcard Output 5-6
Channel 4 - ASIO Soundcard Output 7-8
DIGITAL S/PDIF Input 1 - 4 via RCA on rear panel.
Example Usage
Using the matrix, a CD player plugged into Analogue Input 4 of your mixer can be routed to Channel 1
by setting the Toggle Switch to ‘ANA’ and the Input Select Rotary to ‘4’, or can be assigned to all four
channels simultaneously by repeating the process on all input channels.
Alternatively, if you wish to select your source to be DAW Soundcard Outputs 5-6, set the Toggle
Switch to ’USB’ and the Input Select Rotary to ’3’.
1
2

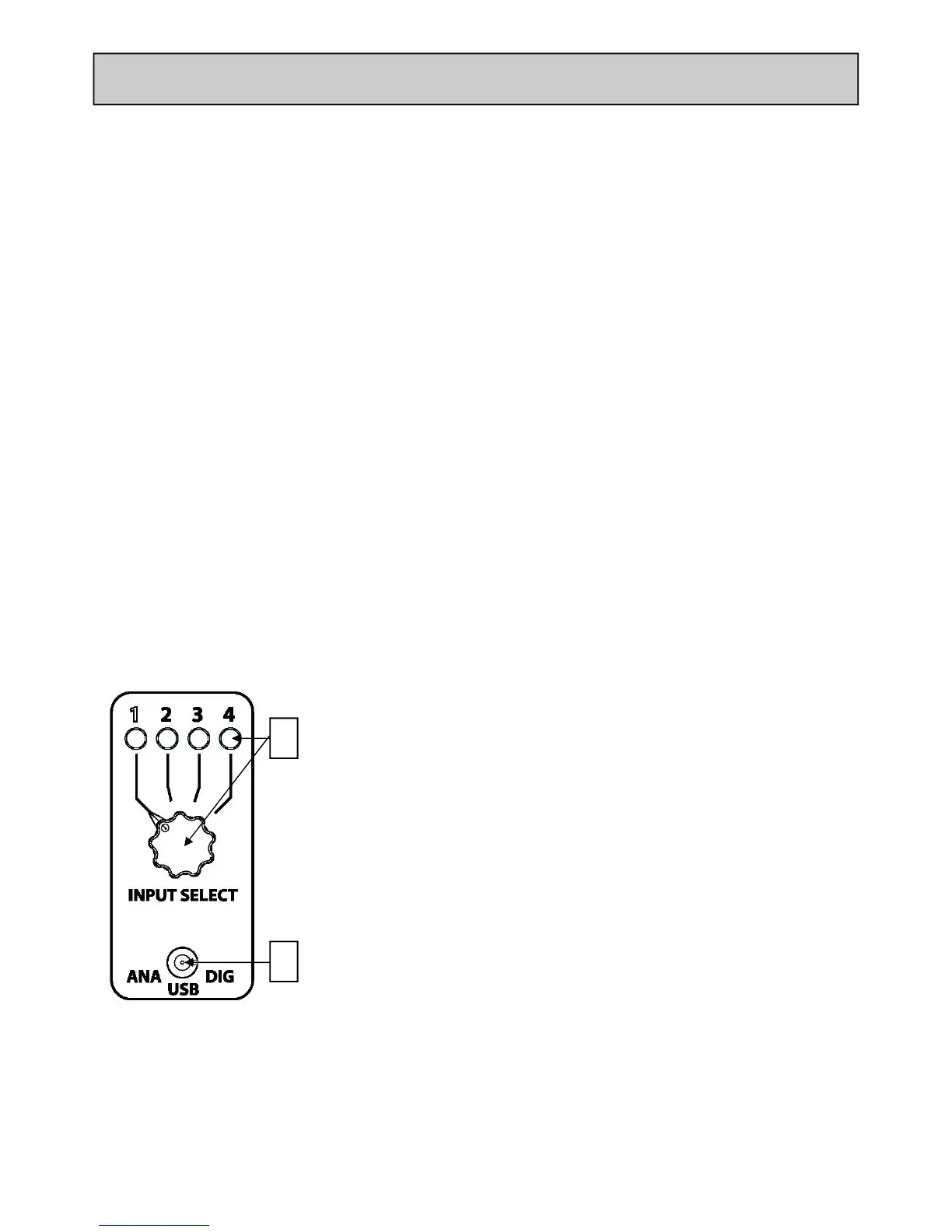

INPUT SELECTION
Turn the 4-position rotary switch to select one of
the four available input sources.
The green LED will illuminate to show which is the
currently selected source.
INPUT SOURCE SELECT SWITCH
Toggle switch allowing selection between Analogue
(ANA), USB and DIGITAL (DIG) sources.

ALLEN & HEATH XONE:DB4 Specifications

General

Frequency range	22 - 22000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Number of EQ bands per channel	4
Line Signal-to-Noise Ratio (SNR)	104 dB
XLR out	2
Microphone in	Yes
Line inputs (RCA)	8
Headphone connectivity	3.5 mm/6.35 mm
USB 2.0 ports quantity	1
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	320 mm
Height	88 mm
Weight	5100 g
Package depth	260 mm
Package width	530 mm
Package height	470 mm
Package weight	8600 g
