ALLEN & HEATH XONE:DB4 User Manual

Allen & Heath 8 XONE:DB4 User Guide

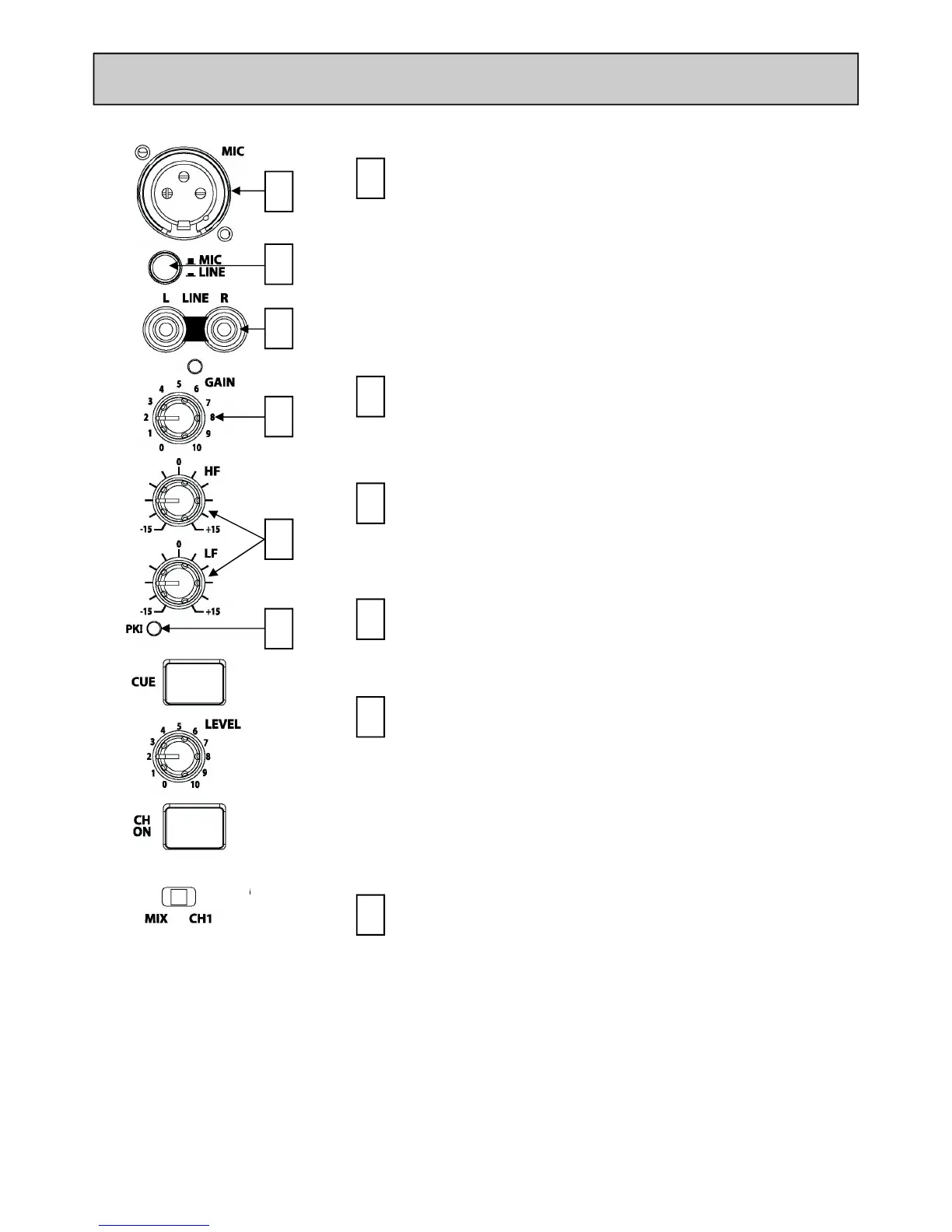

MIC / LINE CHANNEL
MICROPHONE INPUT CONNECTOR
Balanced XLR. Plug in a DJ, guest or announcement
microphone here. Use a good quality low impedance
dynamic mic such as those specifically designed for vocals.
Do not use high impedance or unbalanced microphones,
or condenser types which require phantom power.
Use the best professional grade balanced cables and
connectors you can afford, as these are typically subject to
intense use and abuse in the club environment.
1
MIC / LINE SELECTOR SWITCH
Selects the channel source between MONO Microphone
and STEREO Line input connectors
2
1
2
4
5
6
3
LINE INPUT CONNECTOR
Dual RCA sockets for connecting an external line level
source.
3
GAIN CONTROL
Sets the level of the source signal to the channel.
4
MIC EQ Controls
The MIC equaliser provides a tool to adjust the tonal
quality of the sound to correct source problems such as
microphone response, proximity effect, noise and
feedback, to help the voice cut through the mix, or to
adjust the overall ‘feel’. Start with the EQ controls set to
their mid (flat) position, then adjust to achieve the desired
sound.
5
CHANNEL PEAK LED
Illuminates if the channel signal is within 3dB of clipping.
6

ALLEN & HEATH XONE:DB4 Specifications

General

Frequency range	22 - 22000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Number of EQ bands per channel	4
Line Signal-to-Noise Ratio (SNR)	104 dB
XLR out	2
Microphone in	Yes
Line inputs (RCA)	8
Headphone connectivity	3.5 mm/6.35 mm
USB 2.0 ports quantity	1
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	320 mm
Height	88 mm
Weight	5100 g
Package depth	260 mm
Package width	530 mm
Package height	470 mm
Package weight	8600 g
