ALLEN & HEATH XONE:DB4 User Manual

Allen & Heath 38 XONE:DB4 User Guide

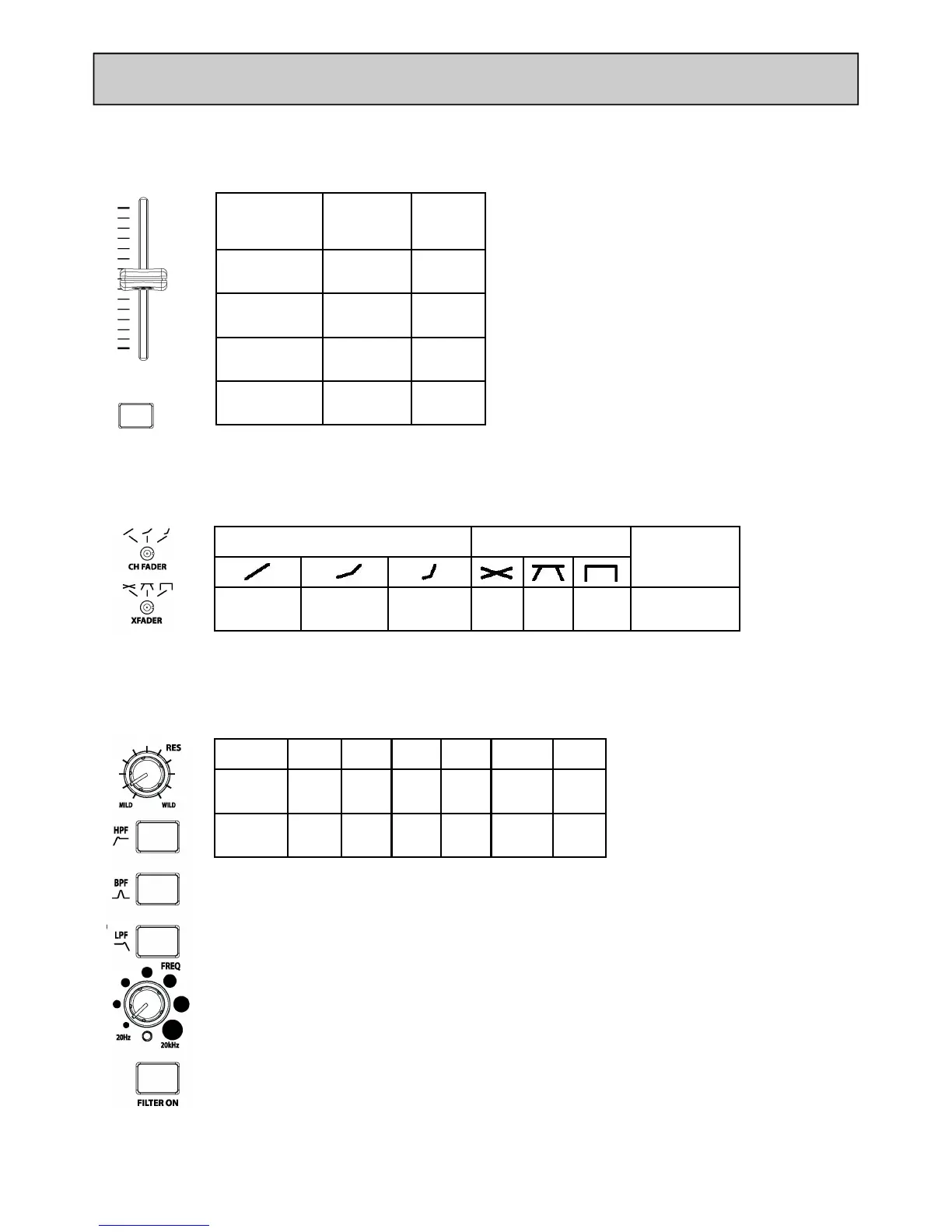

MIDI CONTROL MESSAGES
CHANNEL FADER, FX ON SWITCH
DB4
CHANNEL
FADER
1
CC 37
CH 16
E8
CH 16
2
CC 35
CH 16
F8
CH 16
3
CC 38
CH 16
F#8
CH 16
4
CC 36
CH 16
G8
CH 16
FX ON
CHANNEL FADER CURVE, XFADER CURVE, XFADER
CHANNEL FADER CURVE XFADER CURVE
G –1
CH 16
OFF
◄►
G#-1
CH 16
F#-1
CH 16
OFF
◄►
F –1
CH 16
CC 39
CH 16
XFADER
FILTERS
FILTER RES HPF BPF LPF FREQ ON
1(L)
CC 8
CH 16
B 6
CH 16
C 7
CH 16
C# 7
CH 16
CC 34
CH 16
D 7
CH 16
2(R)
CC 1
CH 16
C#-1
CH 16
D –1
CH 16
Eb-1
CH 16
CC 3
CH 16
E –1
CH 16

ALLEN & HEATH XONE:DB4 Specifications

General

Frequency range	22 - 22000 Hz
Channels quantity	4 channels
Digital sound processing	- bit
Number of EQ bands per channel	4
Line Signal-to-Noise Ratio (SNR)	104 dB
XLR out	2
Microphone in	Yes
Line inputs (RCA)	8
Headphone connectivity	3.5 mm/6.35 mm
USB 2.0 ports quantity	1
Product color	Black
Video capability	No

Weight and Dimensions

Depth	358 mm
Width	320 mm
Height	88 mm
Weight	5100 g
Package depth	260 mm
Package width	530 mm
Package height	470 mm
Package weight	8600 g
