ALLEN & HEATH XONE DX User Manual

Allen & Heath User Guide for XONE:DX with Serato ITCH 1.6 13

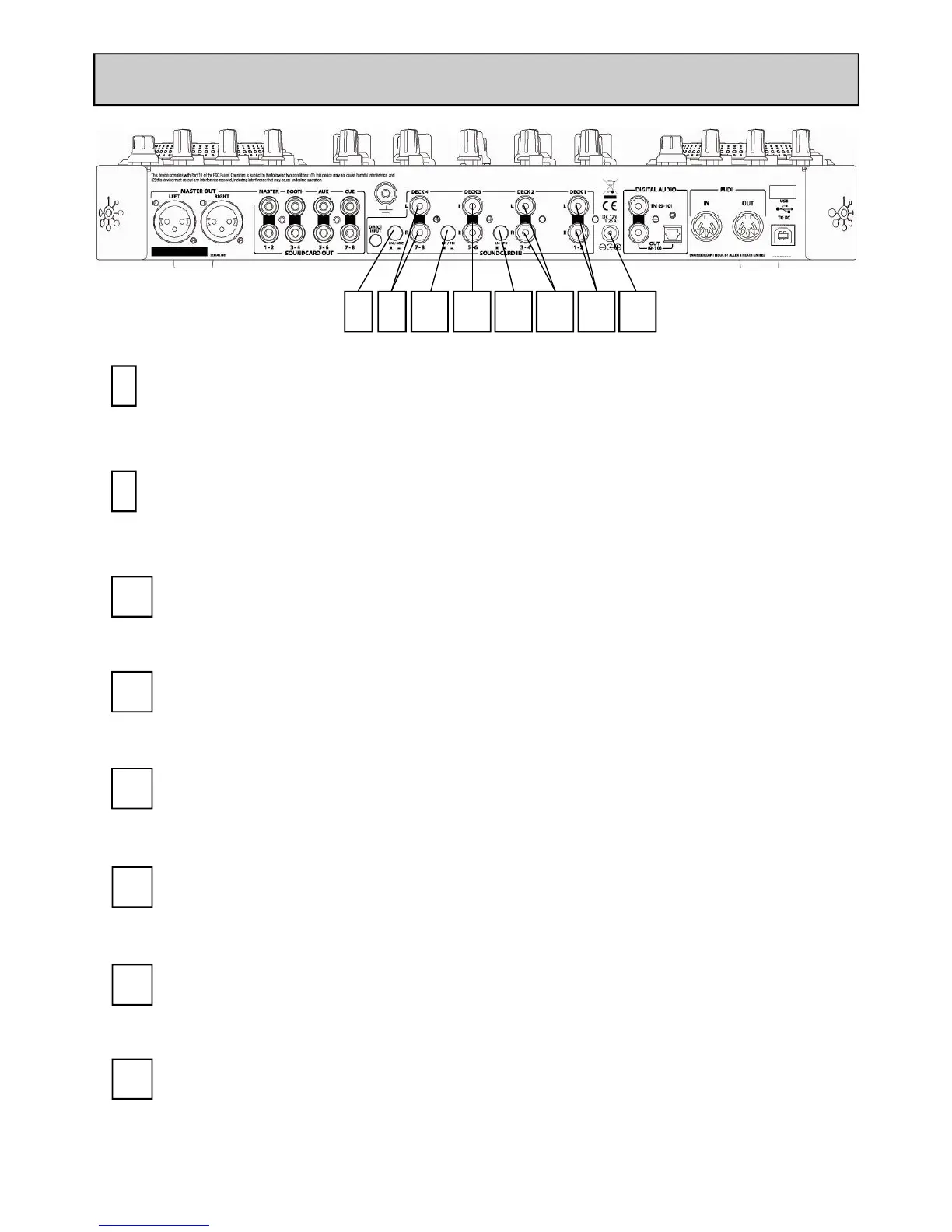

REAR CONNECTORS
8 9 10
DECK 4 INPUT SELECT SWITCH
Switch to select Deck 4 input between LINE and MIC.
8
DECK 4 INPUT
RCA Phono sockets for external connection to Deck 4 (Soundcard Input 7-8).
9
DECK 3 INPUT SELECT SWITCH
Switch to select Deck 3 input between PHONO and LINE.
10
DECK 3 INPUT
RCA Phono sockets for external connection to Deck 3 (Soundcard Input 5-6).
11
DECK 2 INPUT SELECT SWITCH
Switch to select Deck 2 input between PHONO and LINE.
12
DECK 2 INPUT
RCA Phono sockets for external connection to Deck 2 (Soundcard Input 3-4).
13
DECK 1 INPUT
RCA Phono sockets for external connection to Deck 1 (Soundcard Input 1-2).
14
11 12 13 14 15
DC INPUT SOCKET
Connect the supplied external power supply to this socket.
15
