Allen & Heath User Guide for XONE:DX with Serato ITCH 1.6 62

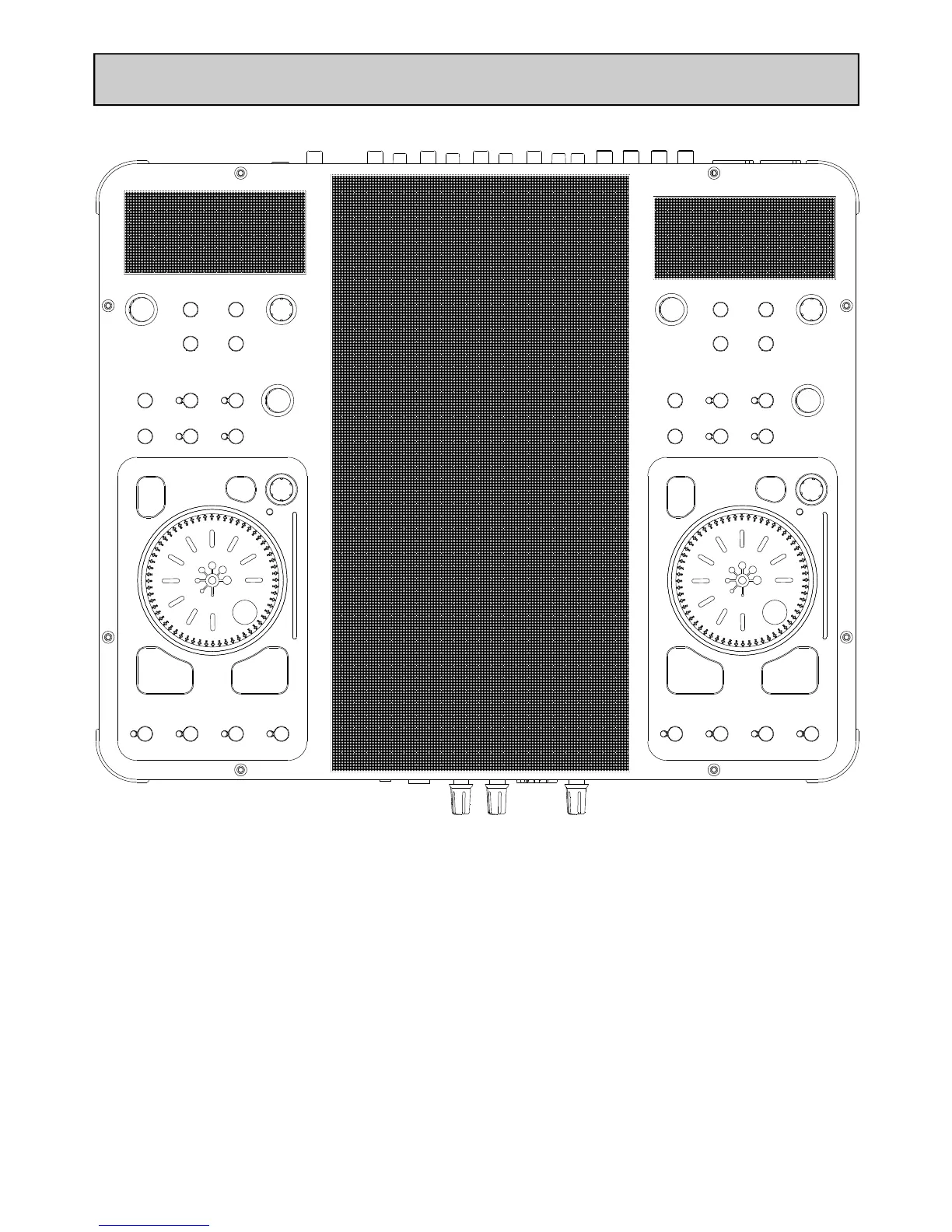

MIDI CONTROL VALUES - VIRTUAL DECKS
C#-1 F-1 Bb-1 ▼Eb0
F#-1 B-1
CC35
D-1 G-1 C0 E0
Eb-1 G#-1 C#0
A0 Bb0 ▼F0
G#0 G0
E-1 A-1 D0 F#0
C#-1 F-1 Bb-1 ▼Eb0
F#-1 B-1
CC35
D-1 G-1 C0 E0
Eb-1 G#-1 C#0
A0 Bb0 ▼F0
G#0 G0
E-1 A-1 D0 F#0
RED Layer Channel 13
GREEN Layer Channel 14
RED Layer Channel 15
GREEN Layer Channel 16
The MIDI messages transmitted from the virtual decks are as shown above. It can be seen that the note
and controller values are the same for both the left and right-hand decks. The messages are differenti-
ated by the MIDI Channel that they are transmitted on.
LAYER BUTTONS
The behaviour of the layer button differs slightly to all of the other buttons within the virtual deck. If the
left deck is on the RED layer (MIDI Channel 13), when the LAYER button is pressed its note message will
be transmitted on Channel 14. This is to represent the fact that the GREEN layer transmits on Channel
14 (on the right-hand deck this would be Channel 16). Similarly, if the left deck is on the GREEN layer
(MIDI Channel 14), when the LAYER button is pressed its note message will be transmitted on Channel
13 (Channel 15 for the right-hand deck).
