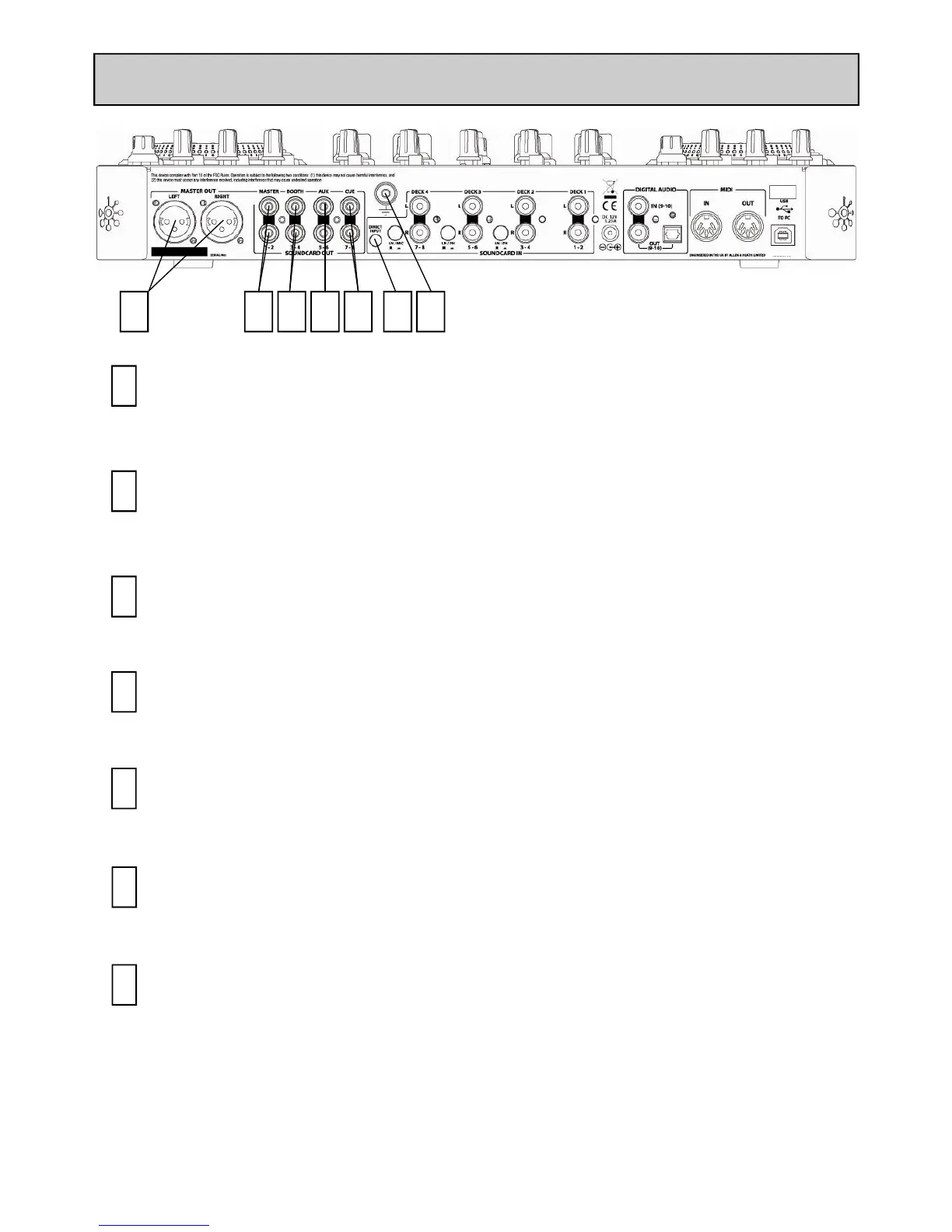

REAR CONNECTORS
1 2 4 5 3
BALANCED MIX OUTPUT
Phase inverted balanced Mix (Soundcard Output 1-2) outputs on XLR-3 sockets. For
unbalanced operation use Pin 2 and Ground—DO NOT SHORT PIN 3 TO GROUND.
1
UNBALANCED MIX OUTPUT
Mix (Soundcard Output 1-2) output on RCA Phono sockets.
2
BOOTH OUTPUT
Booth (Soundcard Output 3-4) output on RCA Phono sockets.
3
AUX OUTPUT
Auxiliary (Soundcard Output 5-6) output on RCA Phono sockets.
4
CUE BUS OUTPUT
Cue Bus (Soundcard Output 7-8) output on RCA Phono sockets.
5
6 7
DIRECT INPUT SOCKET
3.5mm stereo jack socket for Direct Input (see Page 34).
6
CHASSIS EARTH TERMINAL
A screw terminal is provided for connecting the earth straps from turntables. This
connection earths the metal parts of the turntable to reduce hum, buzz or similar audible
noise getting into the system.
7
