Allen-Bradley 1203-GD1 Getting Started Manual

1–3Overview
Publication 1203–5.1 –– July, 1997

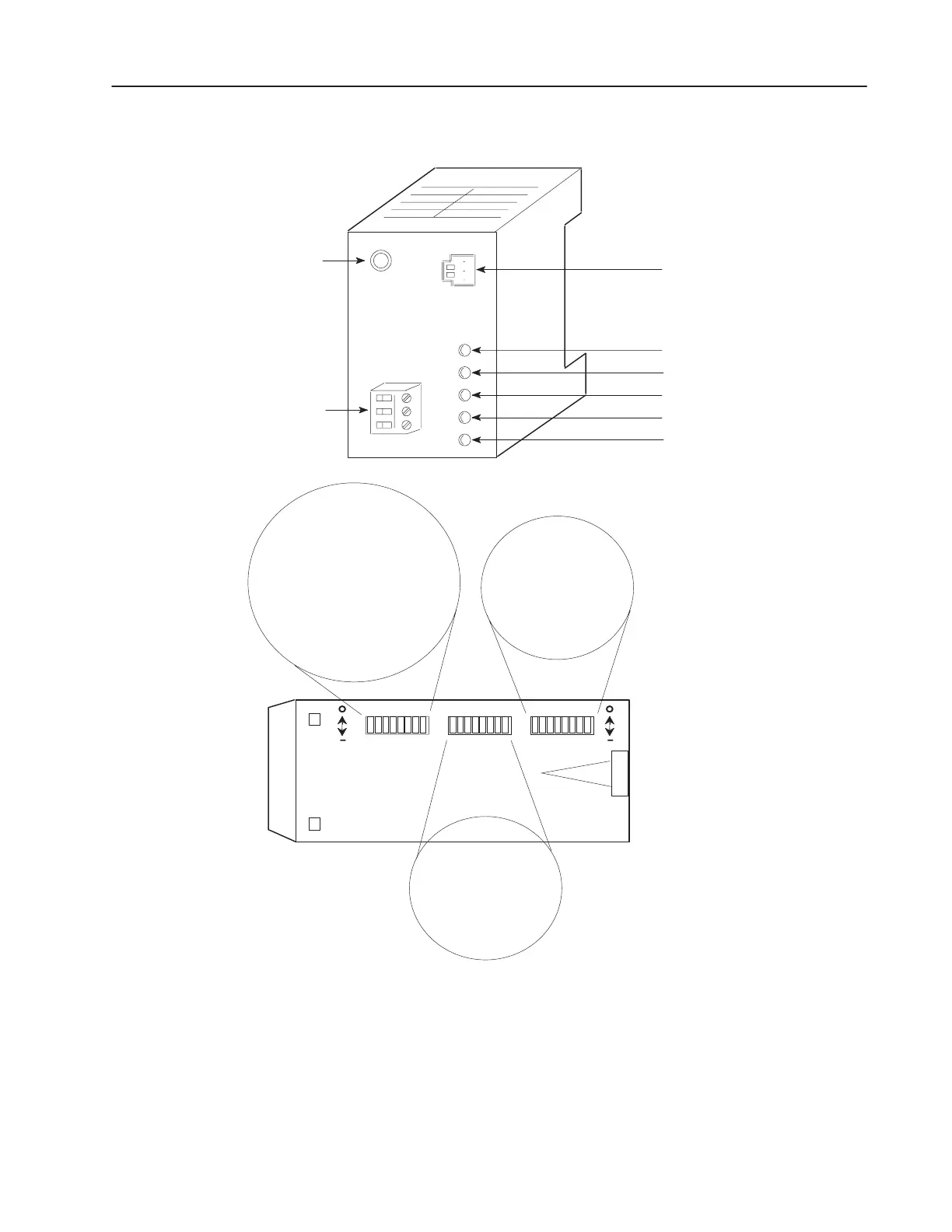

Figure 1.2
Enclosed Style Communications Module
Front View
SW1
Remote I/O Status (Green)
Remote I/O Active (Green)
Connect
Power Supply Here
Adapter Health (Green)
SCANport Status (Green)
Adapter Fault Status (Red)
Remote I/O
Connector
SCANport
Communication
Cable Connector
Bottom View
1
Switch SW3
– Block Transfer Enable
– Logic Command/
Status Enable
– Analog Reference/
Feedback Enable
– Datalink A-D enable
– Truncate last datalink
Switch SW1
– Rack Address
SW2818SW3 18
Switch SW2
– Starting Quarter
– Baud Rate
– Rack Fault
– Hold Last State
– Starting Quarter
.
.
.

Allen-Bradley 1203-GD1 Specifications

General

Brand	Allen-Bradley
Model	1203-GD1
Category	Control Unit
Language	English
