3–5Configuration and Interfacing
Publication 1203–5.1 –– July, 1997

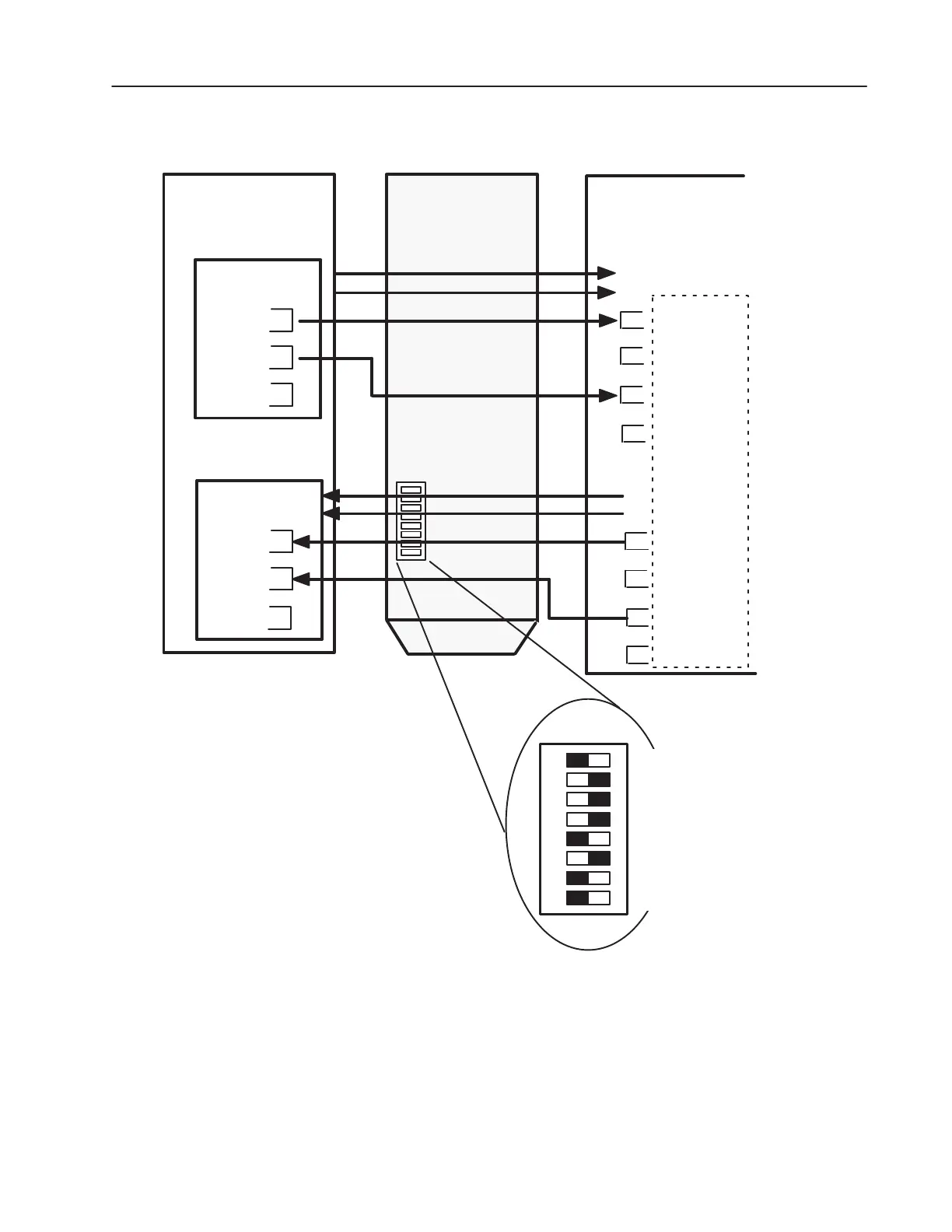

Figure 3.3
Typical Programmable Controller Configuration for 1305 and 1336
PLUS/FORCE without Block Transfer
Output Image
Logic Command
Reference
WORD 2
WORD 3
WORD 4
WORD 5
WORD 6
WORD 7
Remote I/O
Communications
Module
Input Image
SW3
1336 PLUS/FORCE
Controller
Programmable Controller
I/O Image Table
Logic Status
Feedback
WORD 2
WORD 3
WORD 4
WORD 5
WORD 6
WORD 7
Data In A1
Data In A2
Data In B1
Data In B2
Datalink A
Datalink C
Data In C1
Data In C2
Data Out A1
Data Out A2
Data Out B1
Data Out B2
Data Out C1
Data Out C2
Datalink A
Datalink C
Data Out D1
Data Out D2
Data In D1
Data In D2
Parameters
NOTE: This configuration requires a minimum
rack size of
3
/
4
rack.
SW3
12345678
OPEN
Datalink B Off
Datalink C On
Datalink D Off
Truncate Last Datalink Off
Datalink A On
Reference/Feedback On
Logic Cmd/Sts On
Block Transfer Off
