8 1336 PLUS II Firmware Download Module
14. The default baud rate of 9600 should be acceptable under most
conditions. However, to facilitate faster file transfers, the baud
rate can be changed for communications up to the maximum
drive rate of 115.2 kb (or the maximum computer rate). To use
the default rate, proceed to step 15.
A. Select “
(3) Set Baud rate
” by pressing the “3” key.
B. Select the desired baud rate and note instructions displayed
on the screen.
C. Select “Exit” from the HyperTerminal File menu. Repeat
steps 10 through 13 to change the COM port baud rate to
match the rate just selected.
15. Select “
(1) Display Drive information
” by pressing the “1” key.
This will cause the drive to display information about the current
firmware versions of both the microprocessor and the Digital
Signal Processor (DSP).

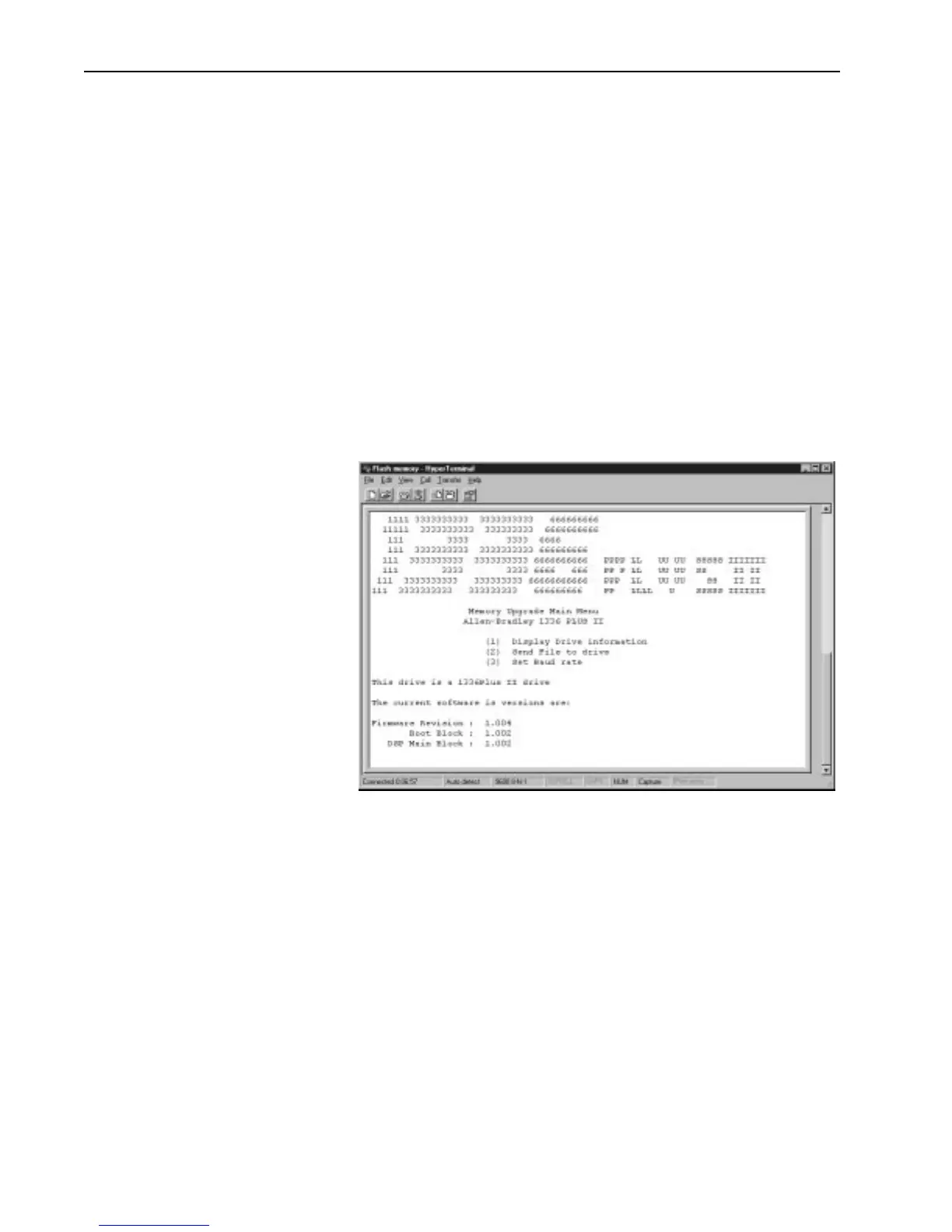

The screen will display Firmware Revision ID for the
microprocessor (which runs most of the features), the DSP Main
Block program (runs the majority of drive functions) and DSP
Boot Block (controls the DSP). The program you download may
or may not have a change to the DSP Main Block (covered later
in this procedure).
Record this data in step 9 on page 4, then compare the data. If the
two DSP Main Block revision levels are different, be aware that
further actions will be required in step 19 on page 11.
