Allen-Bradley 1734-AENT User Manual

1734 POINT I/O EtherNet/IP Adapter 17
Publication 1734-IN042D-EN-P - October 2015
Interpret Status Indicators

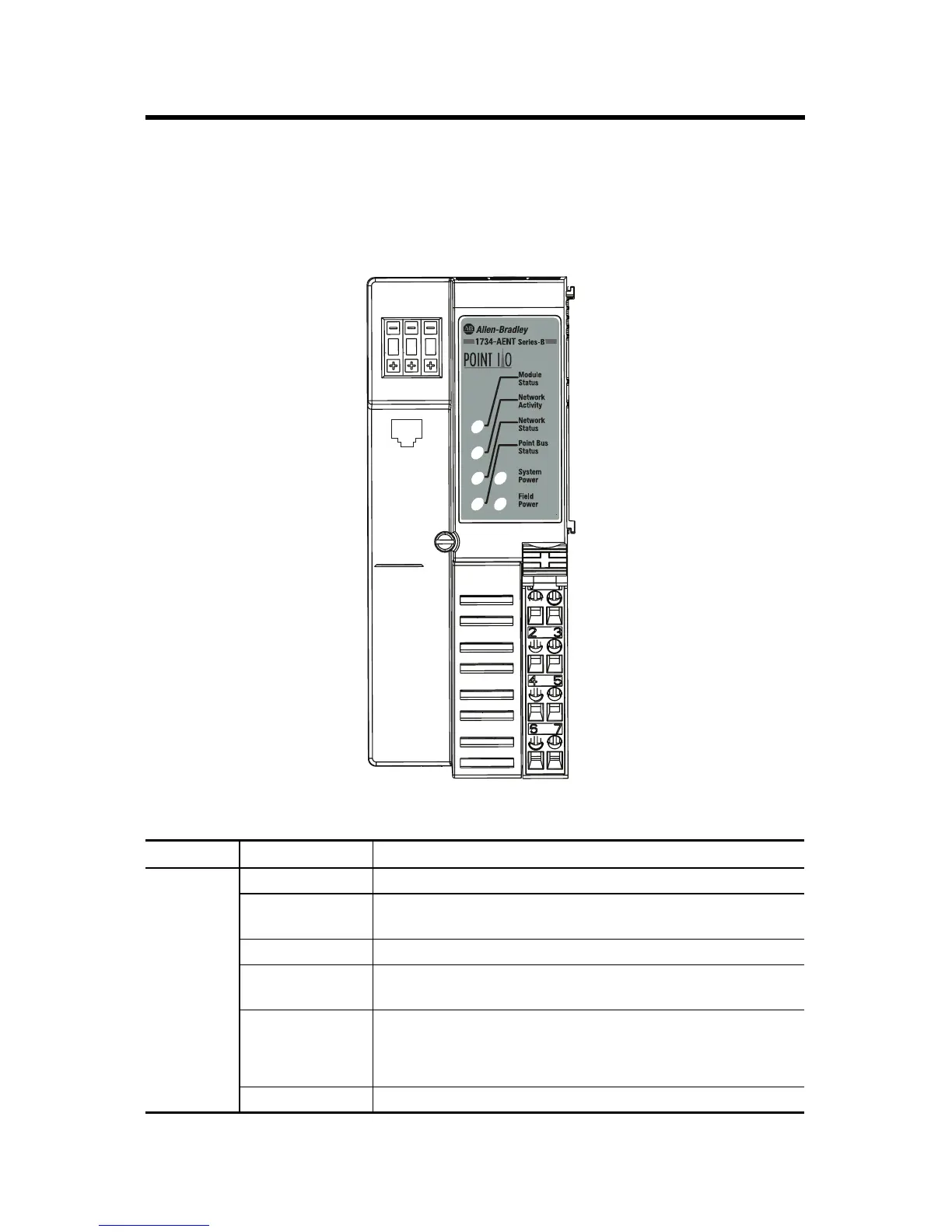

Refer to the following diagram and table for information on how to interpret the
status indicators.
POINT I/O EtherNet/IP Adapter, Series B
Indicator Status for Modules
Indicator Status Description
Module
status
Off No power applied to device
Flashing green Device needs commissioning due to missing, incomplete, or
incorrect configuration.
Solid green Device is operating normally.
Flashing Red Recoverable fault.
Complete firmware update, verify address switches.
Solid red Unrecoverable fault has occurred:
•Self-test failure present (checksum failure, or RAMtest failure at
cycle power).
•Firmware fatal error.
Flashing red/green Module self-test.
43264
02
0
System power
Field power
Module status
Network activity
Network status
POINTBus status
Chas Gnd
C
V
NC
Network address
thumbwheels
Ethernet RJ-45 connector

Allen-Bradley 1734-AENT Specifications

General

Product Type	EtherNet/IP Adapter
Network Protocol	EtherNet/IP
Enclosure Type Rating	None (open-style)
Storage Temperature	-40 to 85 °C (-40 to 185 °F)
Housing Material	Plastic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Current Draw @ 24V DC	100 mA maximum
Network Address	Configurable via software
Ports	1 Ethernet port
