Allen-Bradley 1734-AENT User Manual

1734 POINT I/O EtherNet/IP Adapter 15
Publication 1734-IN042D-EN-P - October 2015

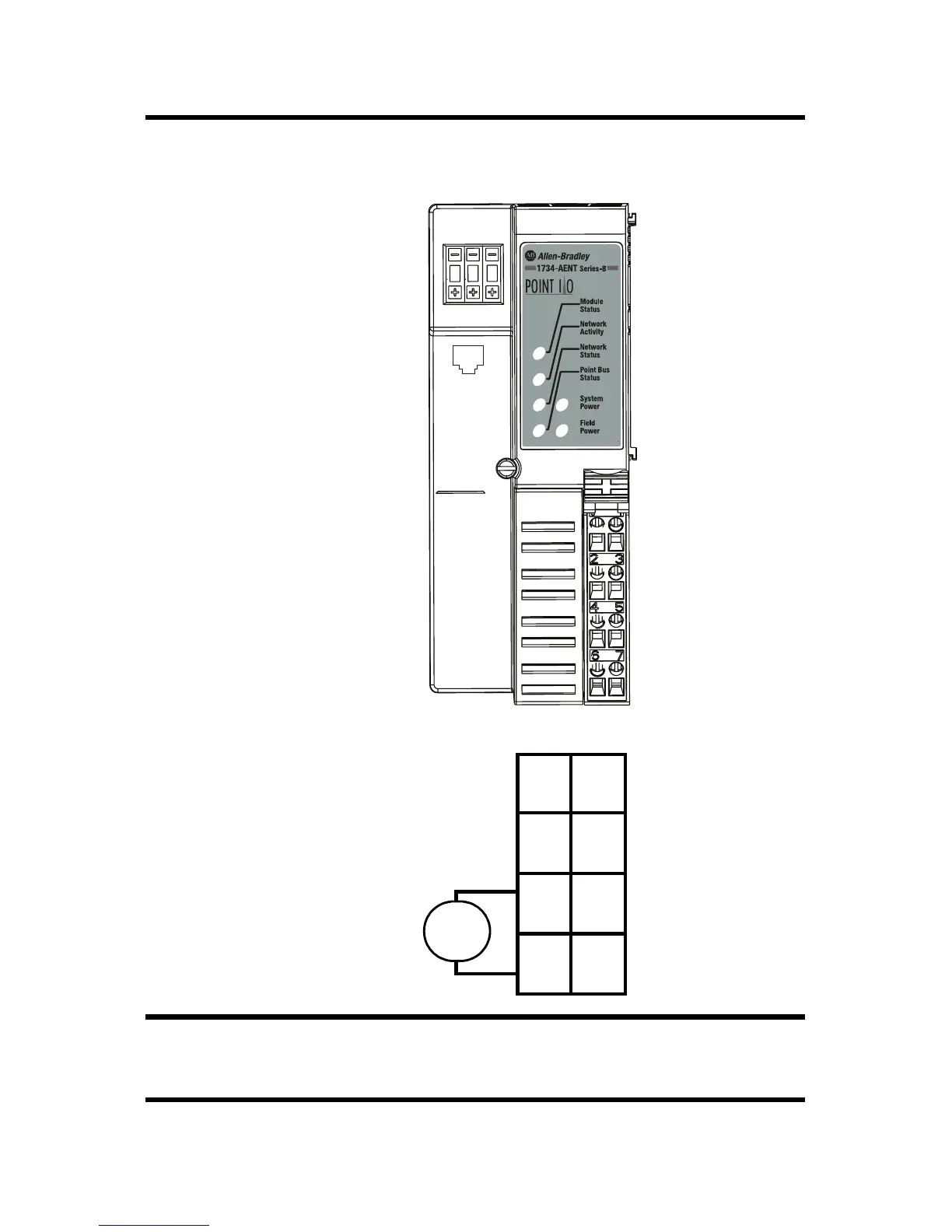

Wire The Adapter
IMPORTANT
Do not connect 120/240V AC power to this supply. This DC supply will be
connected to the internal power bus.
02
0
43264
Chas Gnd
C
V
NC
Ethernet RJ-45 connector
NC
V
NC
Chas
Gnd
V
0
4
2
6
Chas
Gnd
1
5
3
7
V DC
C
C
NC = No Connection
Chas GND = Chassis Ground
C = Common
V = Supply

Allen-Bradley 1734-AENT Specifications

General

Product Type	EtherNet/IP Adapter
Network Protocol	EtherNet/IP
Enclosure Type Rating	None (open-style)
Storage Temperature	-40 to 85 °C (-40 to 185 °F)
Housing Material	Plastic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Current Draw @ 24V DC	100 mA maximum
Network Address	Configurable via software
Ports	1 Ethernet port
