Allen-Bradley 1734-AENT User Manual

1734 POINT I/O EtherNet/IP Adapter 7
Publication 1734-IN042D-EN-P - October 2015
About The Adapter
The Series B 1734-AENT POINT I/O EtherNet/IP Adapter is a communications
adapter for POINT I/O modules.
The adapter provides an interface for controlling and communicating with POINT I/O
modules from an EtherNet/IP network.

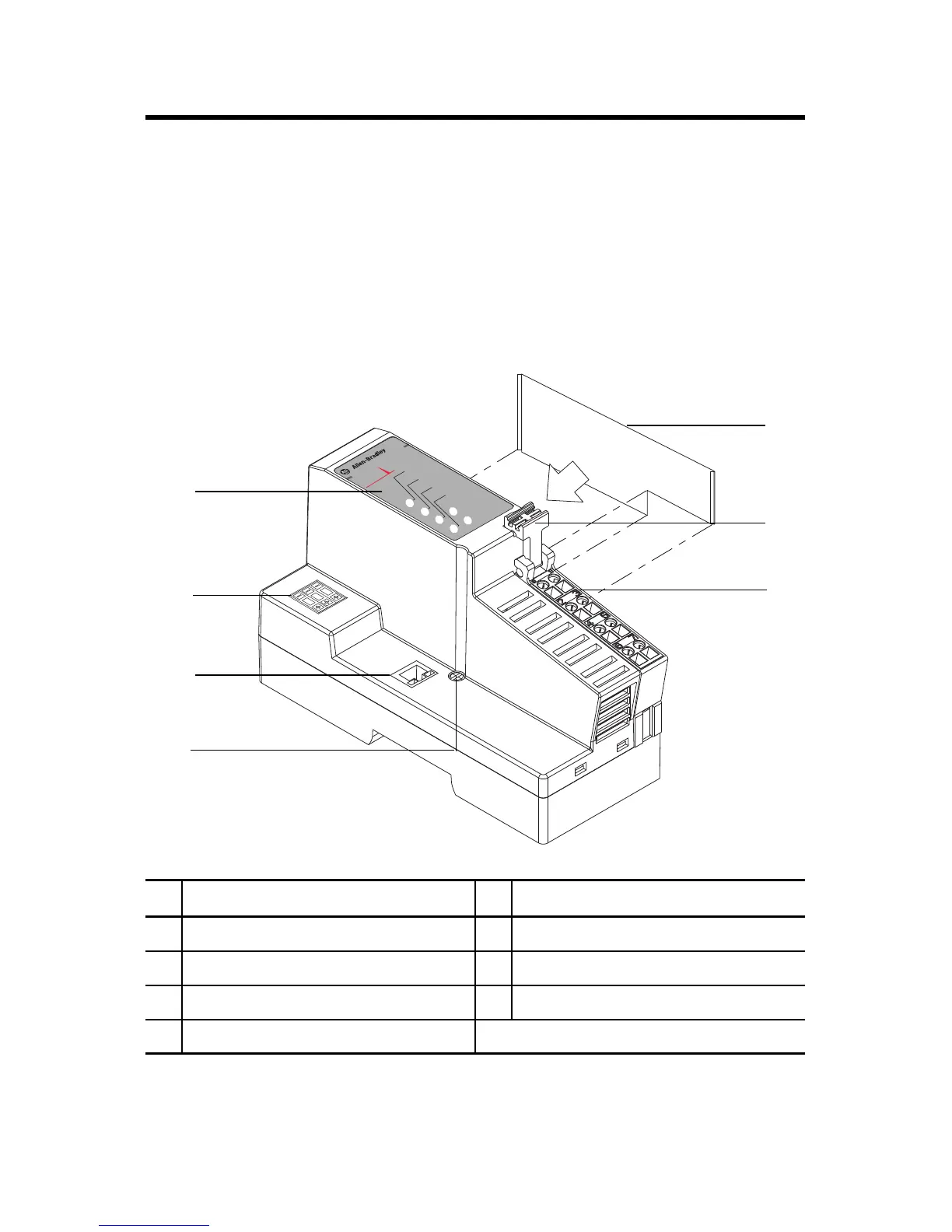

1734-AENT Adapter, Series B
Description Description
1 Safety end Cap 5 Ethernet network RJ-45 connector
2 Removable Terminal Block (RTB) handle 6 Network address thumbwheel
3 Removable Terminal Block (RTB) 7 Status indicators
4 DIN rail locking screw (orange)
31533
Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
1734-AENT Series B
02
0
1
7
3
5
6
2
4

Allen-Bradley 1734-AENT Specifications

General

Product Type	EtherNet/IP Adapter
Network Protocol	EtherNet/IP
Enclosure Type Rating	None (open-style)
Storage Temperature	-40 to 85 °C (-40 to 185 °F)
Housing Material	Plastic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Current Draw @ 24V DC	100 mA maximum
Network Address	Configurable via software
Ports	1 Ethernet port
