76 Rockwell Automation Publication IASIMP-QS023B-EN-P - December 2012
Chapter 5 Create a Logix Designer Project

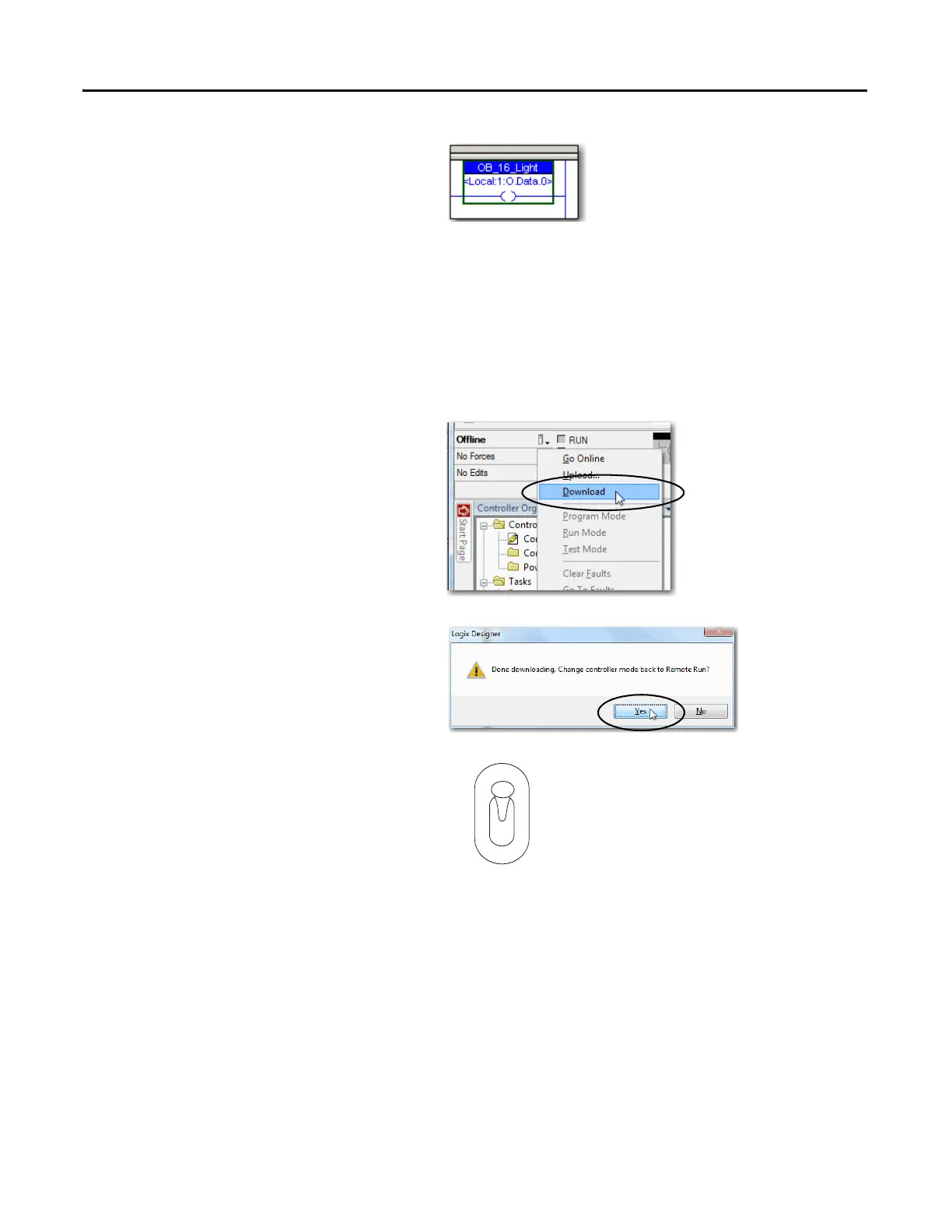

16. The graphic shows the Output
Energize after assigning the Alias
tag to a point on the output
module.
17. Save your changes.
Download to the Controller and Test the Logic
1. From the mode pull-down menu,
choose Download.
2. When the dialog box appears with
information about the download,
click Download.
3. Click Yes to change the controller
mode to Remote Run.
4. Move the mode switch on your
controller to RUN.
RUN
REM
PROG
