10 FLEX I/O Isolated Output HART Analog Module
Publication 1794-IN120D-EN-P - September 2015

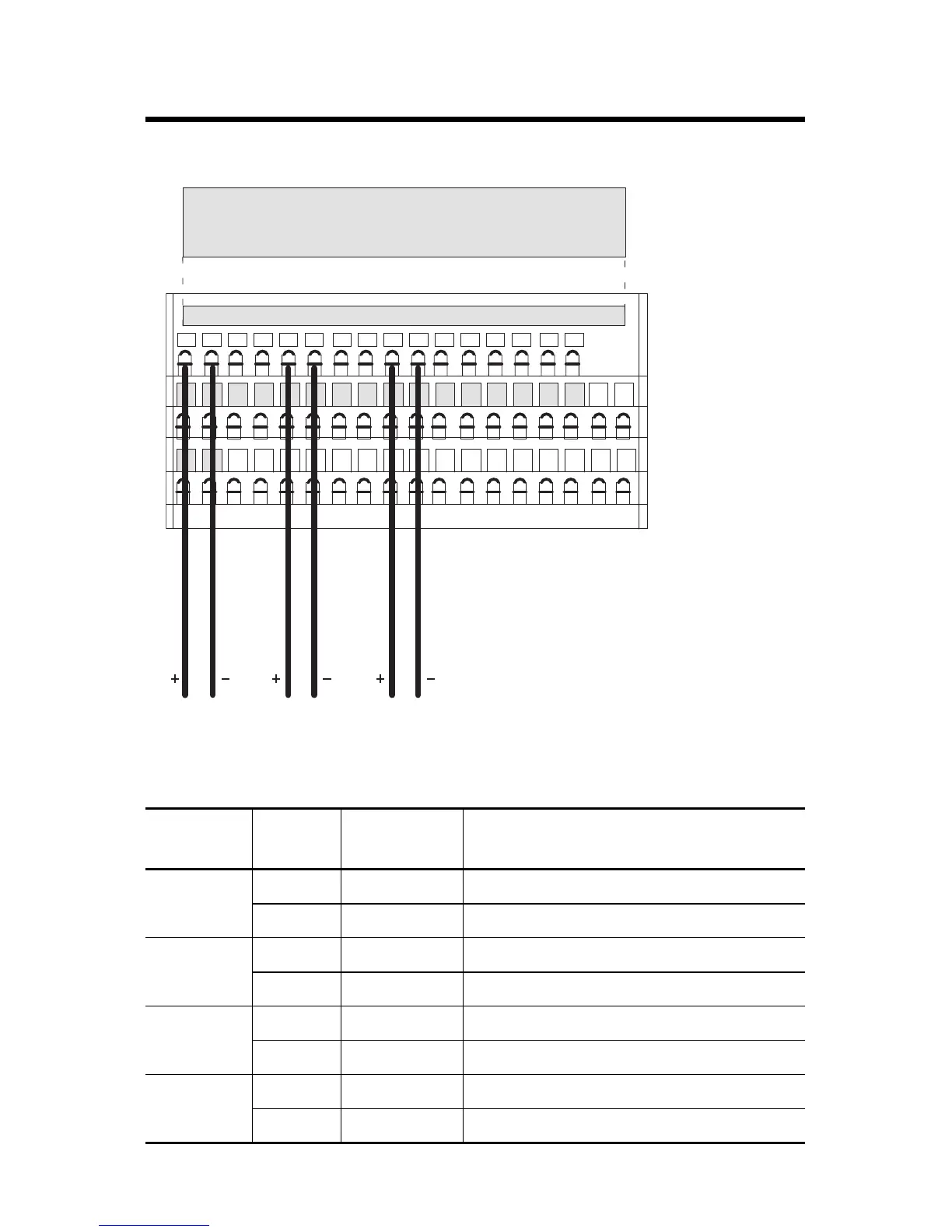

Module Wiring
Wire Connections
Channel Signal
Type
Label
Markings
Catalog Numbers
1794-TB3 or 1794-TB3S Terminal
0 Current O0 A-0
Current O0 Ret A-1
1 Current O1 A-2
Current O1 Ret A-3
2 Current O2 A-4
Current O2 Ret A-5
3 Current O3 A-6
Current O3 Ret A-7
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
18 19 20 21 22 23 3324 25 26 27 28 29 30 31 3217
35 36 37 38 47 48 49 5034
51
16
39 40 41 42 43 44 45 46
Row A
Row B
Row C
Row A
Row B
Row C
Actuator
1794-TB3S shown
44552
Label placed at top of wiring area
Actuator Actuator
